Sustainable building design has become increasingly important as the world focuses on reducing energy consumption and environmental impact. One key component in achieving this goal is the use of EC (Electronically Commutated) fans, particularly when integrated with EC fan speed controllers. These controllers play a crucial role in optimizing the performance of EC fans, enhancing energy efficiency, and contributing to a more sustainable built environment.

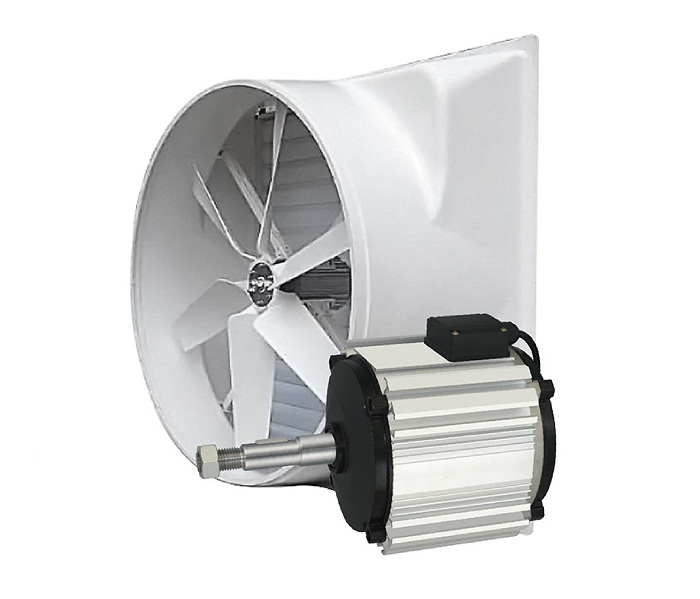

EC fans are an evolution of DC motors, offering precise speed regulation and efficient airflow control. They are brushless, which reduces wear and heat generation, increasing their service life and efficiency compared to traditional AC motors. The integration of EC fans into air handling units (AHUs) and other HVAC systems is a significant step towards more efficient and sustainable air conditioning systems.
EC fans utilize a brushless, permanent magnet DC motor with onboard electronics for controlling the fan rotor. This setup allows for precise speed control and efficient airflow management, making them ideal for applications where energy efficiency is paramount. The integrated electronics enable the motor to adjust its speed based on a control signal, which can be digital or analog, such as a 0-10V signal.
EC fans offer several advantages over traditional AC fans:
- Energy Efficiency: EC fans can achieve energy savings of up to 70% compared to AC motors at reduced speeds[4].
- Low Maintenance: The absence of carbon brushes means EC fans require little to no maintenance, reducing operational costs.
- Quiet Operation: EC fans operate quietly, even at variable speeds, making them suitable for noise-sensitive environments.
- Precise Speed Control: Adjustable speed controls allow EC fans to match changing air movement requirements, enhancing system performance and efficiency.
EC fan speed controllers are designed to maximize the energy-saving potential of EC fans. These controllers allow for variable speed control, enabling fans to adjust their speed based on the specific needs of the environment. This flexibility not only optimizes energy consumption but also extends the lifespan of the fan by reducing wear and tear.
EC fan speed controllers often feature advanced control capabilities, including integration with Building Management Systems (BMS). This integration allows for automated control based on real-time data, further optimizing energy use and ensuring that fans operate at peak efficiency. The use of IoT (Internet of Things) technology in smart ventilation systems enables real-time monitoring and adjustment of indoor air quality, occupancy levels, and outdoor air conditions, ensuring optimal ventilation while minimizing energy consumption.
The integration of Active PFC (Power Factor Correction) in EC fan systems enhances energy efficiency by correcting the phase difference between current and voltage, bringing the power factor closer to 1.0. This results in more efficient power consumption and reduces harmonic distortion, which can disrupt power supplies. Advanced EC fan models with integrated Active PFC and IoT connectivity are designed to utilize eco-friendly materials and minimize both energy consumption and waste.
EC fans and their speed controllers are widely applied in various industries, including:
- HVAC Systems: EC fans are used in air handling units to improve energy efficiency and reduce environmental impact.
- Industrial Applications: They are used in heat recovery units and demand control ventilation systems to optimize energy use and maintain indoor air quality.

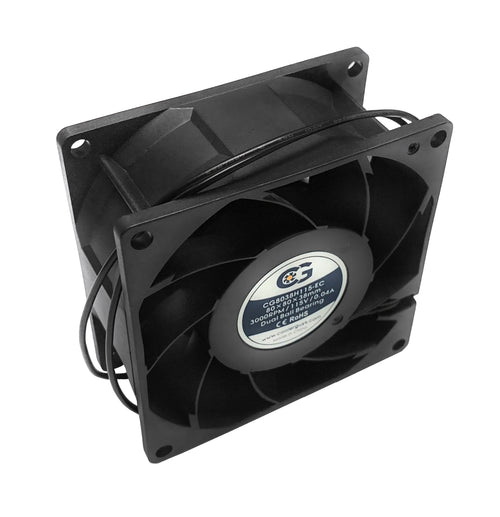

- Electronic and Computing Equipment: EC fans are used for cooling in data centers, servers, and other electronic devices to ensure efficient heat dissipation.
In Singapore, many older buildings have upgraded their HVAC systems by retrofitting with EC fans, significantly reducing energy consumption. This upgrade not only improves energy efficiency but also enhances the overall sustainability of the building. The compact design of EC motors makes them ideal for retrofitting into existing systems, allowing for a seamless transition from traditional AC motors.
When installing EC fans, it's crucial to consider the control system. EC fans require a control signal to operate, which can be generated manually or automatically through sensors and controllers. The use of external controllers like the EC Selection Module provides three-speed control options, allowing for adjustments via potentiometers or external devices such as thermostats.
Advanced EC fan speed controllers, such as the ECMF8-AO –EW HVAC controller, offer sophisticated solutions for precise control of EC fans. These controllers feature 0-10V outputs for seamless regulation of fan operations and include real-time feedback mechanisms to ensure optimal performance. They also support Modbus RTU communication, allowing for integration with various HVAC sensors and systems.
The integration of EC fan speed controllers with IoT technology enables real-time monitoring and control of fan operations. This connectivity allows for automated adjustments based on environmental conditions, ensuring that fans operate at optimal efficiency levels. The use of cloud platforms like SenteraWeb facilitates customized firmware updates, ensuring that controllers are tailored to specific application needs.
EC fans can be controlled using various signals, including analog and digital inputs. The 0-10V analog control signal is commonly used for manual or automated speed adjustments, allowing for precise control over fan speed[1][3]. Digital signals, such as those from Modbus RTU communication, enable integration with BMS and IoT systems for automated control[4].
Manual control of EC fans can be achieved using potentiometers, which provide a stepless speed adjustment from low to high speeds without an OFF position[1]. This manual control is useful in applications where precise speed adjustments are necessary based on user preference or environmental conditions.
Automatic control of EC fans can be achieved using sensors that monitor environmental conditions such as temperature, humidity, or air quality. These sensors generate control signals that adjust fan speed to maintain optimal conditions while minimizing energy consumption[4].
In industrial settings, EC fan speed controllers are used to optimize energy efficiency and reduce noise levels. For instance, the EMR Series from Oriental Motor offers significant power savings and noise reduction by adjusting fan speed based on airflow requirements[2]. This flexibility in speed control allows for efficient operation across various industrial applications.
EC fans with advanced controllers are used in heat recovery units to optimize energy recovery and reduce waste heat. This application demonstrates how EC fan speed controllers can be tailored to specific industrial needs, enhancing overall system efficiency.
In conclusion, EC fan speed controllers play a pivotal role in sustainable building design by optimizing the performance of EC fans, enhancing energy efficiency, and contributing to a more sustainable built environment. Their advanced control capabilities, integration with BMS and IoT systems, and focus on energy efficiency make them a crucial component in modern HVAC systems.
EC fan speed controllers offer variable speed control, integration with BMS, and IoT connectivity, which optimize energy consumption, extend fan lifespan, and enhance overall system efficiency.
They contribute by optimizing energy use, reducing waste, and utilizing eco-friendly materials, which aligns with sustainable building practices.
Active PFC enhances energy efficiency by correcting power factor discrepancies, reducing harmonic distortion, and ensuring stable power supply, which extends equipment lifespan and reduces maintenance costs.
Yes, EC fan speed controllers can be integrated with IoT technology to monitor and adjust indoor air quality, occupancy levels, and outdoor conditions in real-time, optimizing ventilation while minimizing energy consumption.
EC fans and their speed controllers benefit industries such as HVAC, electronics, automotive, and industrial manufacturing by providing efficient cooling solutions and optimizing energy use.
