In today's world of DIY electronics and custom cooling solutions, the ability to connect a computer fan to a USB port is a valuable skill. Whether you want to cool a laptop, a gaming console, a router, or even create a portable fan for your workspace, USB-powered fans offer flexibility, portability, and convenience. This comprehensive guide will walk you through everything you need to know about connecting a computer fan to a USB port, from understanding the basics of fan and USB power to step-by-step wiring instructions, troubleshooting, and creative applications.
Computer fans are essential for cooling electronic devices. They come in various sizes and voltages, with the most common being 12V and 5V. Most desktop computer fans are designed for 12V operation, while smaller fans, often found in laptops or external hard drive enclosures, are designed for 5V.
- Voltage: The voltage rating is crucial. Connecting a 12V fan to a 5V USB port will result in significantly reduced performance or failure to spin. Only 5V fans are directly compatible with USB power.

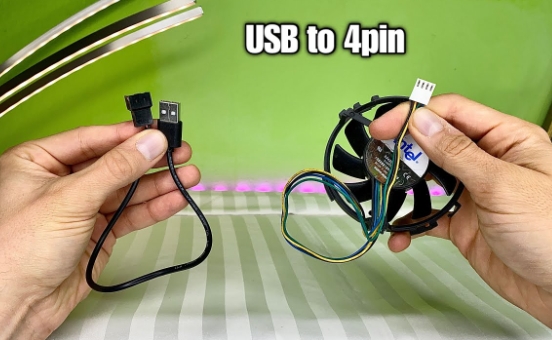

- Wiring: Computer fans typically have two, three, or four wires. The two-wire fans use one wire for positive voltage (usually red) and one for ground (usually black). Three-wire fans add a tachometer (speed sensor), and four-wire fans include a PWM (pulse width modulation) control wire for speed adjustment.
USB ports are ubiquitous on computers, laptops, power banks, and even wall adapters. They provide a standardized 5V direct current output.
- Voltage: USB ports supply 5V.
- Current: The current available depends on the USB version. USB 2.0 ports provide up to 500mA, while USB 3.0 ports can supply up to 900mA or more.
- Compatibility: Only 5V fans should be connected directly to USB ports. Attempting to power a 12V fan with USB will result in reduced speed or non-operation.
Connecting a computer fan to a USB port offers several advantages:
- Portability: USB ports are available on many devices, making it easy to power a fan anywhere.
- DIY Projects: USB-powered fans are popular in custom electronics, Raspberry Pi projects, and homemade cooling systems.
- Convenience: No need for external power adapters or complicated wiring.
- Versatility: Fans can be used to cool laptops, routers, gaming consoles, or even as personal desk fans.
- Energy Efficiency: USB-powered fans consume little power and can be powered by portable batteries.

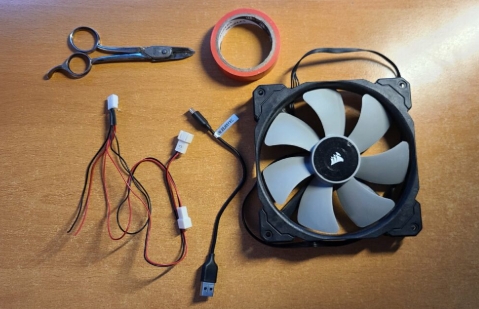

To connect a computer fan to a USB port, you'll need the following:
- A computer fan (preferably 5V for direct compatibility)
- A USB cable (can be an old cable or a USB extension cable)
- Wire stripper or scissors
- Electrical tape or heat shrink tubing
- Soldering iron and solder (optional, for permanent connections)
- Multimeter (optional, for checking voltage and continuity)
- Small screwdriver (optional, for opening fan connectors)
- Check the label on the fan for voltage and current requirements.
- Identify the number of wires and their colors. Typically, red is positive (VCC), black is ground (GND), yellow or blue may be for speed or PWM control.

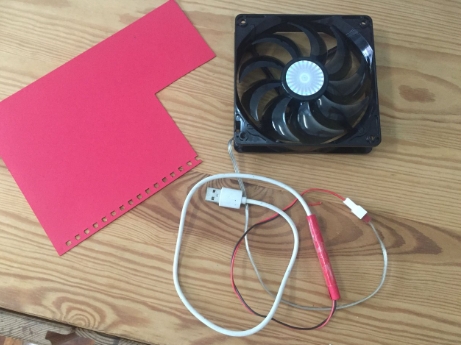

- Cut the USB cable to the desired length.
- Strip off the outer insulation to reveal the inner wires.
- Inside, you'll usually find four wires: red (5V), black (GND), white (data-), and green (data+).
- You only need the red and black wires for power.
- Strip a small section of insulation from the red and black wires of both the USB cable and the fan.
- Twist the red wire from the USB cable to the positive wire of the fan.
- Twist the black wire from the USB cable to the ground wire of the fan.
- If your fan has more than two wires, leave the extra wires unconnected and insulated.
- For a temporary setup, twist the wires together and cover them with electrical tape.
- For a permanent and reliable connection, solder the wires together and cover with heat shrink tubing.
- Plug the USB cable into a USB port.
- The fan should start spinning if everything is connected correctly.
- If the fan does not spin, unplug immediately and check your connections.
- Check Voltage Compatibility: Only connect 5V fans directly to USB. Using a 12V fan may result in poor performance or damage.
- Avoid Short Circuits: Ensure no exposed wires are touching each other.
- Use Proper Insulation: Always cover bare wires with electrical tape or heat shrink tubing.
- Do Not Overload USB Ports: Check the current draw of your fan. If it exceeds the USB port's capability, use a powered USB hub.
- Unplug When Not in Use: To avoid unnecessary power drain or overheating, unplug the fan when not needed.
- Use a Multimeter: If unsure about the wiring, use a multimeter to verify voltage and continuity before connecting.
- Laptop Cooling Pads: Create a custom cooling pad for your laptop by attaching several fans to a USB hub.
- Router or Modem Cooling: Prevent overheating of network devices by placing a USB-powered fan nearby.
- Gaming Console Cooling: Help dissipate heat from gaming consoles by positioning a fan to blow air over the vents.
- Personal Desk Fan: Make a compact, portable fan for your workspace.
- DIY Air Purifiers: Combine a USB fan with a filter for a simple air purifier.
- Raspberry Pi or Arduino Projects: Use USB-powered fans in small electronics projects for cooling or airflow.
If you only have a 12V fan and want to use it with USB, you have a few options, though each comes with limitations:
- Reduced Speed: A 12V fan will run at a much lower speed on 5V, providing less airflow.
- Boost Converter: You can use a USB-powered boost converter to step up the 5V USB power to 12V, but this requires additional components and knowledge of electronics.
- Powered USB Hub: If your fan draws more current than a standard USB port can supply, use a powered hub to avoid overloading your computer's USB port.
For convenience, consider adding an inline switch to your USB fan cable. This allows you to turn the fan on and off without unplugging it.
Some USB fans can be controlled using a simple variable resistor or a PWM controller, allowing you to adjust the speed and noise level to your preference.
Use zip ties, double-sided tape, or custom 3D-printed mounts to securely attach your USB fan to your device or workspace.
- Fan Does Not Spin: Double-check wiring and ensure the fan is compatible with 5V USB power.
- Fan Spins Slowly: Using a 12V fan on 5V USB power will result in reduced speed. Use a 5V fan for full performance.
- USB Port Shuts Down: The fan may be drawing too much current. Try a lower-power fan or use a powered USB hub.
- Fan Is Noisy: Secure the fan to prevent vibration and ensure it is clean and free of debris.
- Wires Overheat: This indicates a short circuit or excessive current draw. Unplug immediately and inspect the connections.
- Fan Only Works on Some Ports: Some USB ports provide less current than others. Try a different port or a powered hub.
Connecting a computer fan to a USB port is a straightforward and rewarding project that can enhance cooling for a variety of devices. By following the steps outlined above, you can safely power a fan using USB, customize your cooling solutions, and troubleshoot common issues. Always prioritize safety by checking voltage compatibility and securing all connections. With a little effort, you can enjoy the benefits of a USB-powered fan in your home, office, or DIY projects.
You should use a fan rated for 5V, as standard USB ports provide 5V power. Using a 12V fan will result in reduced performance or may not work at all.
It's possible if the combined current draw does not exceed the USB port's capacity. For multiple fans, consider using a powered USB hub to prevent overloading.
Yes, as long as the fan's voltage and current requirements match the USB port's output. Always insulate connections and avoid short circuits.
This usually happens if you connect a 12V fan to a 5V USB port. The fan will run at a lower speed due to the reduced voltage.
For temporary setups, twisting the wires and covering them with electrical tape is sufficient. For a more permanent and reliable connection, soldering is recommended.
