Efficient cooling is essential for maintaining the performance and longevity of any computer. One of the most fundamental components in a computer's cooling system is the fan. Whether you are building a new PC, upgrading an old system, or simply looking to improve airflow, understanding how to connect a computer fan to the power supply is a vital skill. This comprehensive guide will walk you through the process, explain the different types of fans and connectors, and provide troubleshooting tips to ensure your system remains cool and stable.
A computer fan is an electromechanical device designed to move air through the computer case, across components such as the CPU, GPU, and power supply. This airflow helps dissipate heat generated by these components, preventing overheating and ensuring stable operation.
Properly connecting your fan ensures that it receives adequate power to operate at optimal speeds. Incorrect connections can lead to insufficient cooling, increased noise, or even hardware damage. Understanding the basics of fan wiring and power requirements is crucial for both beginners and experienced PC builders.
The 3-pin fan connector is a common standard for many case fans. It consists of three wires:
- Power (usually red)
- Ground (usually black)
- Tachometer/Signal (usually yellow)
This connector allows for basic speed monitoring but does not support advanced speed control.
The 4-pin connector adds a fourth wire for Pulse Width Modulation (PWM) control, enabling precise speed adjustments. The pins are:
- Power
- Ground
- Tachometer/Signal
- PWM Control
Some fans, especially older or high-power models, use a Molex connector. This connector is larger and typically connects directly to the power supply's Molex output, bypassing the motherboard.
Modern power supplies often feature SATA power connectors, primarily used for hard drives and SSDs, but also compatible with some fans via adapters.
The Molex connector is a four-pin connector found on many power supplies. It is robust and can deliver more current than smaller connectors, making it suitable for high-power fans or multiple fan setups.
There are various adapters available to convert between connector types, such as Molex to 3-pin or 4-pin, and splitters that allow multiple fans to be powered from a single connector.

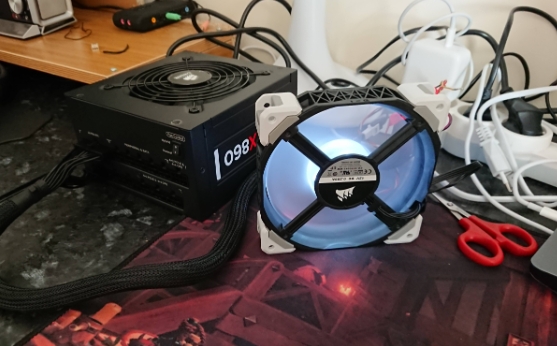

Before connecting, determine the type of connector on your fan and the available connectors on your power supply. Most case fans use either a 3-pin or 4-pin connector, while power supplies offer Molex or SATA connectors.
If your fan's connector does not match the power supply, use an adapter. For example, a 3-pin to Molex adapter allows a standard case fan to connect directly to the power supply.
Always turn off your computer and unplug it from the wall before working inside the case. This prevents electrical shock and protects your components.
Attach the fan's connector to the corresponding adapter. Ensure the pins are aligned correctly to avoid damaging the connectors.
Plug the adapter into the appropriate power supply connector, such as Molex or SATA. Make sure the connection is secure and the wires are not pinched or strained.
Organize and secure any excess cables using cable ties or Velcro straps. Proper cable management improves airflow and reduces the risk of cables interfering with fan blades.
Plug your computer back in and power it on. Observe the fan to ensure it spins up correctly. Listen for unusual noises and check for proper airflow.
When connected to the motherboard, fans can be controlled via BIOS or software, allowing for dynamic speed adjustments based on temperature. Fans connected directly to the power supply usually run at full speed, as there is no speed control signal.
External fan controllers can be installed in a drive bay or connected via USB, offering manual or automatic control over fan speeds. These devices often feature knobs, buttons, or touchscreens for easy adjustments.
Software tools can monitor fan speeds and system temperatures. While fans connected to the power supply may not provide speed data, those connected to the motherboard often do, enabling better system management.
If the fan does not spin after connection:
- Check all connections for secure fit.
- Ensure the power supply is turned on.
- Try a different adapter or connector.
Noisy fans may indicate dust buildup, worn bearings, or improper mounting. Clean the fan and ensure it is securely fastened.
If your system is still overheating, consider adding more fans, improving cable management, or upgrading to higher-performance fans.
- Always disconnect power before working inside your computer.
- Use anti-static wrist straps to prevent electrostatic discharge.
- Avoid forcing connectors together; if they do not fit, check compatibility.
- Regularly clean fans and vents to maintain airflow.
- Replace faulty or excessively noisy fans promptly.
Connecting a computer fan to the power supply is a straightforward process that can greatly enhance your system's cooling and reliability. By understanding the different types of connectors, using the right adapters, and following proper safety procedures, you can ensure your computer remains cool and efficient. Whether you are building a new PC or upgrading an existing one, mastering this skill is essential for any computer enthusiast.
A 3-pin fan can be connected to a 4-pin header without issue. The fan will operate normally, but you will not have access to PWM speed control. The fan will run at a constant speed determined by the voltage supplied.

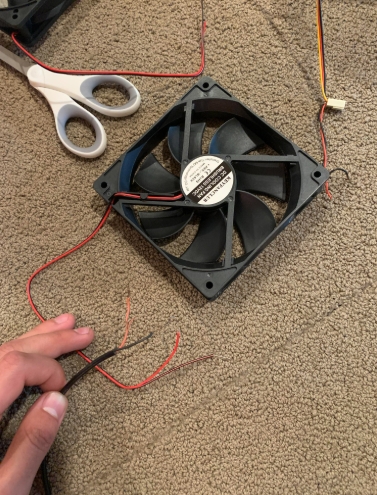

Yes, you can use splitters or fan hubs to connect multiple fans to a single power supply connector. Ensure that the total current draw does not exceed the rating of the power supply connector to avoid overloading.
Running fans directly from the power supply is safe as long as the connections are secure and the total power draw is within the power supply's limits. However, you will not be able to control fan speeds through software.
Check the connector types on both the fan and the power supply. If they do not match, use an appropriate adapter. Also, ensure the voltage and current ratings are compatible to prevent damage.
First, verify that all connections are secure and that the power supply is functioning. Try connecting the fan to a different connector or using another adapter. If the fan still does not spin, it may be defective and require replacement.
