Connecting a computer fan to a wall outlet is a practical and creative solution for DIY enthusiasts, electronics hobbyists, and anyone seeking efficient, low-cost cooling or ventilation. While computer fans are engineered for internal use within computers, their versatility makes them ideal for various other applications, such as custom air purifiers, electronics enclosures, or even small room ventilation. However, because these fans are not designed to plug directly into household power, you must understand the basics of electricity and follow careful steps to ensure a safe and functional setup.
This comprehensive guide will walk you through everything you need to know about connecting a computer fan to a wall outlet. You'll learn about fan types, power requirements, necessary tools and materials, step-by-step wiring instructions, safety precautions, troubleshooting, and creative uses. At the end, you'll find a detailed FAQ section and video resources for further learning.
Computer fans are essential for maintaining optimal temperatures in computers and electronics, but their usefulness extends far beyond their original purpose. Whether you want to cool a small room, ventilate an enclosure, or build a custom air purifier, connecting a computer fan to a wall outlet enables you to repurpose these efficient devices for countless projects.
This guide is designed to make the process accessible and safe, even for beginners. By following the instructions below, you'll be able to power a computer fan from a standard wall outlet and unlock its full potential for your DIY needs.
Before you start wiring, it's important to understand how computer fans work and what makes them compatible with household power.
Most computer fans fall into two main categories based on their voltage requirements:
- DC (Direct Current) Fans: These are the most common, typically running on 5V, 12V, or 24V DC. They are found in desktops, laptops, and many consumer electronics.
- AC (Alternating Current) Fans: Less common in computers, these are designed to run directly on household AC voltage (such as 110V or 220V, depending on your country).
This guide focuses on DC fans, as they are most prevalent and require adaptation to work with wall outlets.
Household wall outlets provide high-voltage AC power, while most computer fans require low-voltage DC power. Therefore, a key component of this setup is a power adapter that converts AC to DC and steps down the voltage to match the fan's requirements.
- Common DC Fan Voltages: 5V, 12V, 24V
- Typical Current Draw: From a few hundred milliamps to over an amp, depending on fan size and speed
Always check your fan's label or manufacturer's specifications to determine its voltage and current requirements.
There are many reasons to connect a computer fan to a wall outlet:
- Custom Cooling Solutions: For electronics enclosures, AV cabinets, or small rooms
- DIY Air Purifiers: Pairing fans with filters to clean air in small spaces
- Ventilation Projects: Removing heat or fumes from hobby projects, grow boxes, or 3D printer enclosures
- Repurposing Old Hardware: Giving unused computer fans a second life
Understanding your project's goal helps you choose the best approach and materials.
Working with electricity involves risk. To minimize hazards, always:
- Unplug All Devices: Never work on wiring while plugged in.
- Double-Check Voltage and Polarity: Incorrect voltage or reversed polarity can damage components or cause injury.
- Use Insulated Tools: Prevent accidental shorts and shocks.
- Secure Connections: Loose wires can cause shorts or fires.
- Avoid Water and Moisture: Never operate electrical devices in wet conditions.
- Test Before Use: Always test your setup in a controlled environment before regular use.

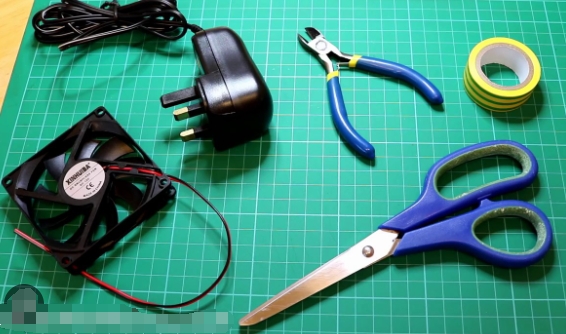

To connect a computer fan to a wall outlet, gather the following:
- Computer fan (DC, typically 12V)
- AC to DC power adapter (matching fan's voltage and current requirements)
- Wire strippers or scissors
- Electrical tape or heat shrink tubing
- Soldering iron and solder (optional, for permanent connections)
- Multimeter (for testing voltage and continuity)
- Screwdrivers (if needed for enclosures)

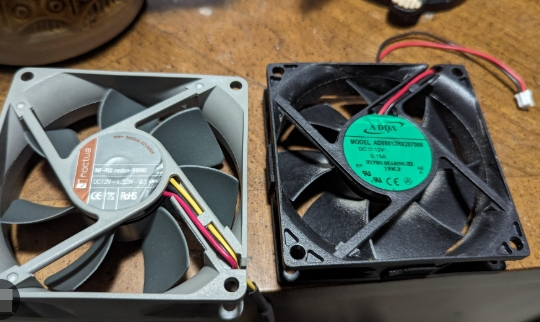

Examine your computer fan for a label or markings indicating voltage and current requirements. Typical details include:
- Voltage (e.g., 12V DC)
- Current (e.g., 0.2A)
- Polarity (usually indicated by wire color: red for positive, black for negative)
If your fan has more than two wires (such as yellow or blue), those are usually for speed control or monitoring and are not needed for basic operation.
Choose an AC to DC power adapter that matches your fan's voltage and provides at least as much current as the fan requires. The adapter should have:
- The correct output voltage (never exceed the fan's rated voltage)
- Sufficient current output (equal to or greater than the fan's current draw)
- A DC barrel connector or bare wires for easy connection
If unsure, use a multimeter to verify the adapter's output.
If your adapter has a barrel connector and your fan has bare wires, you'll need to cut and strip the wires for connection.
- Cut the barrel connector off the adapter (if necessary), exposing the positive and negative wires.
- Use wire strippers to remove about half an inch of insulation from each wire.
- Identify polarity: typically, the wire with a white stripe or solid color is positive, while the plain or black wire is negative.
- Twist the positive wire from the adapter to the positive wire on the fan.
- Twist the negative wire from the adapter to the negative wire on the fan.
- For a more secure connection, solder the wires together. If soldering isn't possible, twist them tightly and secure with wire nuts or electrical tape.
- Cover all exposed wires with electrical tape or heat shrink tubing to prevent short circuits.
- Ensure that no bare wire is visible and that the connections are firm and secure.
- Plug the adapter into the wall outlet.
- The fan should start spinning immediately.
- If the fan does not operate, unplug the adapter and check all connections and polarity.
If your fan does not work as expected, try these troubleshooting steps:
- Fan Does Not Spin: Check for correct voltage, secure connections, and proper polarity.
- Fan Spins Slowly: Ensure the adapter provides enough current; a weak adapter may not supply sufficient power.
- Fan Makes Noise or Vibrates: The fan may be damaged or unbalanced. Try another fan to isolate the issue.
- Adapter Gets Hot: The adapter may be overloaded. Use one with a higher current rating.
- Fan Runs Only Briefly: This could indicate a thermal cutoff or a faulty adapter.
Connecting a computer fan to a wall outlet opens up creative possibilities:
- DIY Air Purifiers: Attach a filter to the fan for a simple air cleaner.
- Electronics Cooling: Ventilate small enclosures or server racks.
- Grow Boxes: Provide airflow for indoor gardening projects.
- Pet Enclosures: Improve ventilation in reptile or small animal habitats.
- Custom Lighting Projects: Cool LED installations or other heat-generating setups.
The versatility of computer fans makes them useful in countless scenarios.
Connecting a computer fan to a wall outlet is a straightforward project that greatly expands the utility of these small but powerful devices. By understanding the fan's voltage and current requirements, selecting the right power adapter, and following safe wiring practices, you can create custom cooling and ventilation solutions for a wide range of applications. Always prioritize safety, double-check your work, and test your setup before regular use. With a bit of care and attention to detail, you can repurpose computer fans for many creative projects beyond the confines of a computer case.
Yes, as long as the total current draw of all fans does not exceed the maximum current rating of the power adapter. Wire the fans in parallel, ensuring each receives the correct voltage.
Using an adapter with a higher voltage can damage the fan, cause it to run too fast, generate excessive heat, or even lead to failure. Always match the adapter's voltage to the fan's rated voltage.
Generally, yes, if the fan and adapter are rated for continuous use and all connections are secure and insulated. Regularly check for heat buildup and ensure the fan is free of dust and debris.
Fan speed control is possible by using a variable voltage adapter, a dedicated fan controller, or a PWM (pulse-width modulation) controller designed for DC fans. Do not reduce voltage below the fan's minimum operating voltage.
Many computer fans have extra wires for speed sensing or control. For basic operation, only the positive and negative wires are needed. Consult the fan's datasheet to identify the correct wires.
