Computer fans are the unsung heroes of any PC build, quietly working behind the scenes to keep your system cool and stable. Whether you're upgrading your cooling system, replacing a noisy or broken fan, or building your own custom PC, knowing how to accurately measure your computer fan size is essential. This comprehensive guide will walk you through every step of the process, helping you understand fan specifications, avoid common pitfalls, and select the perfect fan for your needs.
The size of a computer fan impacts its cooling performance, noise level, and compatibility with your PC case. Larger fans can move more air at lower speeds, resulting in quieter operation and improved cooling efficiency. Smaller fans are often used in compact systems where space is limited, but they may need to spin faster to achieve the same airflow, which can increase noise.
Computer fans come in a range of standard sizes, usually measured in millimeters. The most common sizes found in desktop PCs are:
- 80mm
- 92mm
- 120mm
- 140mm
- 200mm
These measurements refer to the length of one side of the fan's square frame. While there are additional sizes such as 40mm for small form factor builds and 180mm for specialized cooling, the above are the most widely used in modern desktops and gaming PCs.
Before you begin, always turn off your computer and unplug it from the power source. Carefully disconnect the fan from the motherboard or power supply, and remove it from its mounting location. This ensures your safety and allows for the most accurate measurements.

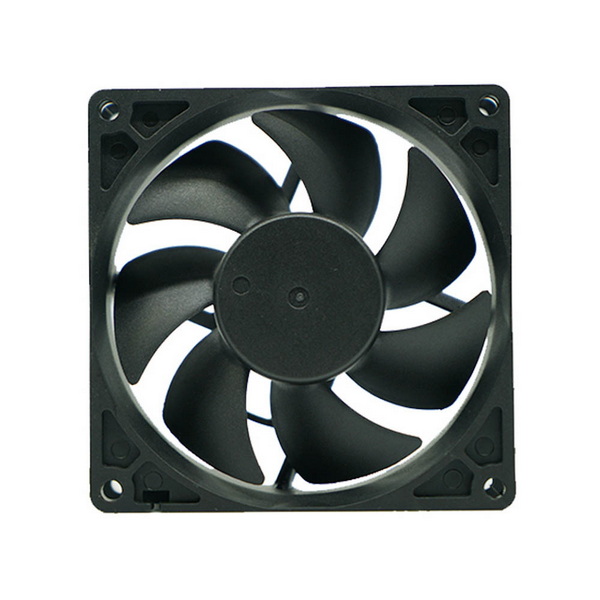

The most reliable way to determine your computer fan size is to measure the length of one edge of the square frame. Use a ruler or measuring tape, and measure from one outer edge to the opposite outer edge. The result, in millimeters, is the fan size. For example, if the frame measures 120 millimeters across, you have a 120mm fan.
Another helpful method is to measure the distance between the centers of the mounting holes. This measurement is standardized and can help confirm the fan size, especially if the frame measurement is ambiguous. For example, a 120mm fan typically has mounting holes spaced about 105mm apart.
Most standard fans have a thickness of 25mm, but some models are thinner or thicker. Measure the depth of the fan from front to back to ensure compatibility with your case, heatsink, or radiator.
If your fan has a model number or brand label, you can look up the manufacturer's specifications for exact measurements. This is particularly useful for non-standard or proprietary fans found in some pre-built PCs or laptops.
Always measure the frame, not the blades. The frame size determines compatibility with your PC case or heatsink, while blade size can vary between models and does not affect mounting.
Most consumer PC fans adhere to standard sizes, but some older or specialized systems may use non-standard dimensions. Always measure to confirm before purchasing replacements or upgrades.
Fans can be mounted horizontally or vertically, depending on your case design. Make sure you measure the correct dimension based on how the fan will be installed in your case.
Check your PC case's documentation or specifications to see which fan sizes are supported. Most modern cases accommodate 120mm and 140mm fans, but smaller or larger cases may require different sizes.
Larger fans generally provide better cooling at lower noise levels, making them ideal for high-performance or quiet builds. Smaller fans are suitable for compact systems or as supplemental cooling in tight spaces.
Consider the balance between airflow (measured in cubic feet per minute) and noise (measured in decibels). Larger fans can move more air with less noise, while smaller fans may need to spin faster, increasing noise levels.
Some cases support multiple fan sizes in the same mounting location. Measure both the frame and the mounting hole spacing to determine all compatible fan sizes.
Ensure there is enough clearance for the fan's thickness, especially when mounting on CPU coolers, radiators, or in compact cases.
For laptops, all-in-one systems, or pre-built desktops, you may encounter custom fan sizes. In these cases, measuring is even more critical, and you may need to source replacements directly from the manufacturer.
- Shut down your PC and unplug it from the power source.
- Disconnect the fan from the motherboard or power supply.
- Unscrew the fan from its mounting location.
- Place the fan on a flat surface.
- Use a ruler or measuring tape.
- Measure from one edge of the frame to the opposite edge, across the square.
- Measure the distance between the centers of two adjacent mounting holes.
- Measure the depth of the fan from front to back.
- Note down all measurements for reference when purchasing a replacement or upgrade.
Airflow is measured in cubic feet per minute and indicates how much air the fan can move. Higher airflow means better cooling but may also result in more noise.
Noise is measured in decibels. Larger fans can achieve the same airflow as smaller fans at lower speeds, resulting in quieter operation.
RPM indicates how fast the fan blades spin. Higher RPM generally means more airflow but also more noise.
Fans with higher static pressure are better for pushing air through dense components like heatsinks or radiators.
- Measuring the blades instead of the frame: Always measure the frame for accurate sizing.
- Ignoring fan thickness: Double-check the available space, especially in compact builds.
- Overlooking mounting hole spacing: Ensure the new fan's holes align with your case or heatsink.
- Assuming all fans are standard: Measure every time, especially for older or proprietary systems.
Measuring your computer fan size is a straightforward but essential task for anyone working with PC hardware. By following the steps outlined in this guide-measuring the frame, checking mounting hole spacing, and considering thickness-you can confidently select the right fan for your system. Remember to balance cooling performance, noise levels, and compatibility with your case. Proper measurement ensures optimal airflow, quieter operation, and a longer-lasting PC.
You can determine your fan size by measuring the length of one edge of the fan's frame in millimeters, checking the manufacturer's documentation, or looking up the model number if available.
A 120mm fan is measured across the frame from one edge to the opposite edge. The distance between the mounting holes is typically around 105mm.
Check the fan's mounting hole spacing and compare it with your case's specifications. Ensure the fan's thickness also fits within the available space.
The fans that fit your PC depend on the size and layout of your computer case, as well as the cooling requirements and available mounting points.
No, computer fan sizes and case sizes vary. Always measure the fan size and check your case's specifications before purchasing a replacement or upgrade.
