Large squirrel cage fans are vital components in modern HVAC systems, industrial ventilation, and commercial air handling units. Their unique cylindrical design and efficient airflow capabilities make them indispensable for maintaining air quality, temperature control, and energy efficiency in large spaces. To ensure these fans operate at peak performance and enjoy a long service life, a comprehensive maintenance strategy is essential. This article provides an in-depth guide on how to maintain large squirrel cage fans for optimal performance, covering cleaning routines, inspection schedules, troubleshooting, and professional tips.

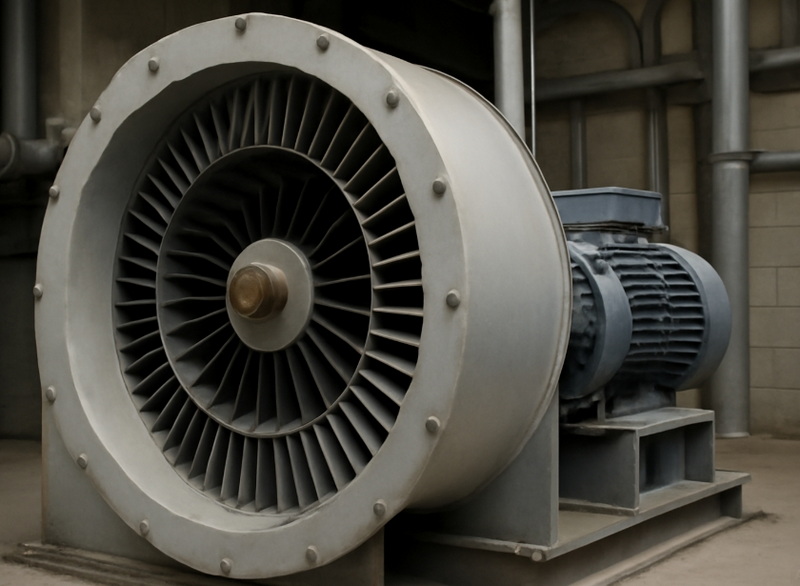

Large squirrel cage fans, also known as centrifugal or blower fans, feature a cylindrical rotor with numerous blades arranged around its circumference. When the rotor spins, air is drawn in along the axis and expelled radially, creating a powerful and consistent airflow. This design is favored for its ability to move large volumes of air quietly and efficiently, making it ideal for HVAC systems, manufacturing plants, warehouses, and commercial buildings.
Proper maintenance of large squirrel cage fans is crucial for several reasons:
- Efficiency: Dust and debris buildup on fan blades and housings can significantly reduce airflow and efficiency.
- Longevity: Regular inspection and timely repairs prevent premature wear and mechanical failures.
- Safety: Well-maintained fans minimize the risk of overheating, electrical faults, and system breakdowns.
- Air Quality: Clean fans help maintain indoor air quality by preventing the circulation of dust and contaminants.
Neglecting maintenance can lead to increased energy consumption, costly repairs, and unplanned downtime.
A consistent maintenance schedule is the foundation of optimal fan performance. For most environments, a quarterly cleaning and inspection routine is recommended, with more frequent checks in dusty or high-use settings. Annual professional inspections are also advisable for large or critical systems.
Step-by-Step Cleaning Guide:
- Power Down: Always disconnect the power supply before starting any maintenance work to ensure safety.
- Remove Housing: Access the fan by removing its housing or cover. This may require unscrewing panels or disconnecting wiring harnesses—take photos for reference during reassembly.
- Dust Removal: Use a soft brush, vacuum, or compressed air to remove dust and debris from the fan blades, housing, and motor. Pay special attention to the spaces between blades, as buildup here can severely impact performance.
- Blade Cleaning: For stubborn grime, use a mild cleaner and a non-abrasive brush. Avoid moving or removing any small balancing clips on the blades, as these are critical for smooth operation.
- Dry Thoroughly: Ensure all components are completely dry before reassembly to prevent rust and electrical issues.
Key Inspection Points:
- Bearings: Check for signs of wear, roughness, or noise. Lubricate bearings with manufacturer-approved lubricants as needed to ensure smooth rotation and minimize friction.
- Belts: Inspect belts for cracks, fraying, or looseness. Replace worn or damaged belts promptly to avoid slippage and loss of efficiency.
- Motor: Examine the motor for overheating, unusual noises, or electrical issues. Ensure all wiring connections are secure and free from corrosion.
- Mounting and Alignment: Verify that the fan is securely mounted and properly aligned. Any wobbling or vibration may indicate misalignment or imbalanced blades, which should be corrected immediately.
- Air Filters: Clean or replace air filters regularly to prevent dust from entering the fan assembly. Clogged filters can restrict airflow and strain the fan motor.
- Ductwork: Inspect and clean ducts and grilles to remove accumulated dust and debris. This supports optimal airflow and reduces the workload on the fan.
- Performance Monitoring: Listen for unusual sounds such as rattling, squeaking, or grinding. These may signal loose components, worn bearings, or imbalanced blades.
- Airflow Checks: Monitor airflow at vents and registers. Reduced airflow often indicates blockages, dirty blades, or failing components.
- Vibration Analysis: Excessive vibration can damage the fan and connected systems. Investigate and correct any source of imbalance immediately.
Maintain a detailed log of all maintenance activities, including cleaning dates, inspection findings, repairs, and parts replacements. This documentation helps identify recurring issues and supports proactive maintenance planning.
- Environmental Control: Keep the area around large squirrel cage fans clean and free from dust and debris. Consider installing additional air filtration if your environment is particularly dusty.
- Professional Inspections: Schedule annual professional inspections to check for hidden issues and ensure all components meet manufacturer specifications.
- Upgrade Components: When replacing parts, use high-quality, compatible components to ensure system reliability and efficiency.
- Automated Controls: Implement temperature and humidity sensors to adjust fan operation based on real-time environmental conditions, reducing unnecessary wear and energy use.
| Issue | Possible Cause | Solution |
|---|---|---|
| Reduced airflow | Dirty blades, clogged filters | Clean blades and replace filters |
| Unusual noise | Worn bearings, loose parts | Inspect and lubricate bearings, tighten parts |
| Excessive vibration | Imbalanced blades, misalignment | Rebalance blades, check mounting |
| Overheating | Blocked airflow, motor issues | Clean fan, inspect motor, check ventilation |
| Frequent belt failure | Misaligned pulleys, worn belts | Align pulleys, replace belts |
Maintaining large squirrel cage fans is a critical task that ensures optimal performance, energy efficiency, and system longevity. By establishing a regular cleaning and inspection schedule, addressing wear and tear promptly, and monitoring system performance, you can prevent common issues and extend the lifespan of your fans. Whether you manage a commercial facility, industrial plant, or large office building, investing time and resources in fan maintenance pays off through reduced downtime, lower energy costs, and improved air quality. Remember to keep detailed maintenance records and consult professionals for complex repairs or annual inspections. With these best practices, your large squirrel cage fans will continue to deliver reliable performance for years to come.
A large squirrel cage fan is a type of centrifugal fan with a cylindrical rotor and multiple blades arranged around its circumference. When powered, the rotor draws air in along its axis and expels it radially, creating efficient and consistent airflow suitable for large spaces.
It is recommended to clean and inspect large squirrel cage fans at least every three months. In dusty or high-use environments, more frequent maintenance may be necessary. Annual professional inspections are also advised for optimal performance.
Common signs include reduced airflow, unusual noises (such as rattling or squeaking), excessive vibration, overheating, and visible dust or debris buildup on the blades or housing.
Basic maintenance tasks such as cleaning, lubricating bearings, and replacing filters can often be performed by facility staff with proper safety precautions. However, complex repairs, electrical work, or balancing should be handled by qualified professionals to ensure safety and reliability.
During maintenance, focus on the fan blades, motor, bearings, belts, and housing. Ensure all moving parts are clean, lubricated, and free from damage. Check for secure mounting, proper alignment, and unobstructed airflow.
