The debate between AC fans and EC fans in HVAC systems has been ongoing, with each type offering distinct advantages. Understanding the differences and benefits of these fans is crucial for selecting the most suitable option for specific applications. In this article, we will delve into the world of AC fan vs EC fan, exploring their technologies, efficiencies, and applications.
AC fans use asynchronous motors, which are induction motors. They operate directly from the alternating current (AC) supply, typically at standard mains voltages such as 230 Vac or 115 Vac. AC fans are widely used due to their simplicity and cost-effectiveness in manufacturing. However, they have limitations in terms of efficiency and controllability compared to EC fans.

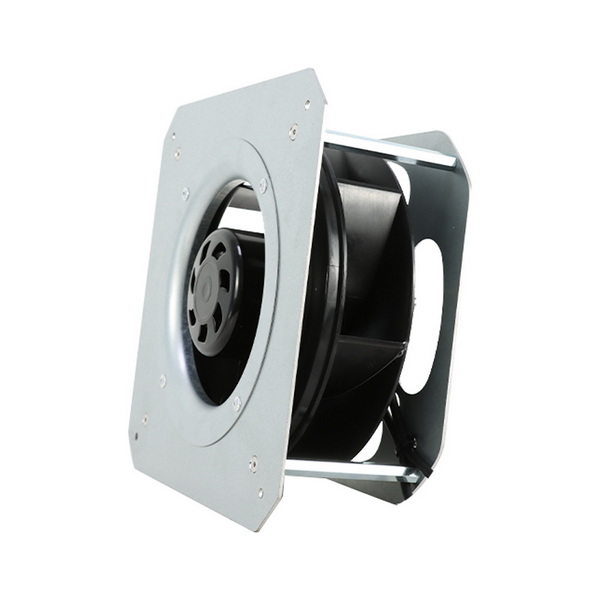

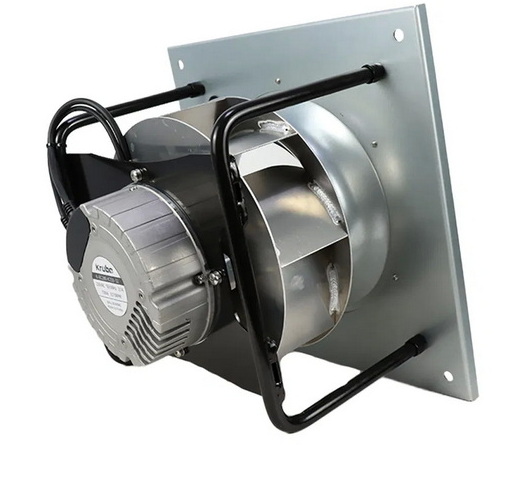

EC fans, or electronically commutated fans, utilize synchronous motors, specifically brushless DC motors. Although they are powered by AC voltage, they convert it to DC internally. This conversion allows for higher efficiency and better speed control. EC fans are known for their energy-saving capabilities and quieter operation, making them a popular choice for applications where efficiency and noise reduction are critical.
One of the most significant advantages of EC fans over AC fans is their higher efficiency. EC motors typically achieve efficiencies between 80% and 90%, while AC motors, especially those with permanent split capacitors (PSC), have efficiencies ranging from 60% to 70%. This difference in efficiency translates into substantial energy savings over time, especially in applications where fans operate continuously.
EC fans offer superior speed control due to their electronic commutation. This allows for precise modulation of fan speed, ensuring that the fan operates only at the required speed, thereby reducing unnecessary energy consumption. In contrast, AC fans typically run at fixed speeds determined by the AC line frequency, leading to potential energy waste when full speed is not needed.
Figure: Speed Control Comparison
| Feature | AC Fans | EC Fans |
|---|---|---|
| Speed Control | Fixed speeds based on AC frequency | Variable speed control through electronic commutation |
| Efficiency | Lower efficiency (60-70%) | Higher efficiency (80-90%) |
EC fans are generally quieter than AC fans. The brushless design of EC motors reduces vibration and noise, making them suitable for applications where noise needs to be minimized, such as in residential HVAC systems.
While EC fans are more expensive initially, their long-term operational costs are significantly lower due to their higher efficiency and reduced energy consumption. AC fans, on the other hand, are cheaper upfront but may incur higher operational costs over time.
Figure: Cost Comparison
| Cost Aspect | AC Fans | EC Fans |
|---|---|---|
| Initial Cost | Lower | Higher |
| Operational Cost | Higher | Lower |
- Marine and Military Applications: AC fans are often preferred in environments requiring robustness and reliability, such as marine and military applications.
- Simple HVAC Systems: For basic HVAC systems where cost is a primary concern and efficiency is not a critical factor, AC fans can be sufficient.
- Energy-Efficient HVAC Systems: EC fans are ideal for modern HVAC systems focusing on energy efficiency and reduced noise levels.
- Variable Speed Requirements: Applications requiring precise speed control, such as in data centers or laboratories, benefit from EC fans.
EC fans can be easily integrated with smart building systems, allowing for remote monitoring and control. This integration enables real-time adjustments to fan operation based on environmental conditions, further optimizing energy use.
The higher efficiency of EC fans results in lower energy consumption, which in turn reduces greenhouse gas emissions. This makes EC fans a more environmentally friendly choice for HVAC systems.
EC fans require less maintenance compared to AC fans due to their brushless design, which eliminates the need for brush replacements. This reduces downtime and extends the lifespan of the fan.
EC fans are generally more reliable than AC fans because they have fewer moving parts and are less prone to overheating. This reliability is crucial in applications where continuous operation is necessary.
Figure: Reliability Comparison
| Feature | AC Fans | EC Fans |
|---|---|---|
| Reliability | Lower due to more moving parts | Higher due to fewer moving parts |
| Maintenance | More frequent maintenance needed | Less maintenance required |
Ongoing advancements in EC fan technology are expected to further enhance their efficiency and performance. Innovations such as improved motor designs and advanced control systems will continue to make EC fans more attractive for a wide range of applications.
As the world shifts towards renewable energy sources, EC fans can play a crucial role by optimizing energy use in systems powered by solar or wind energy. Their ability to efficiently manage variable power inputs makes them ideal for such applications.
In the debate of AC fan vs EC fan, EC fans emerge as a superior choice for applications prioritizing efficiency, controllability, and noise reduction. While AC fans remain viable for certain scenarios due to their cost-effectiveness and simplicity, the long-term benefits of EC fans make them an attractive option for those seeking to optimize their HVAC systems.
AC fans use asynchronous motors, whereas EC fans use synchronous motors, specifically brushless DC motors.
EC fans convert AC to DC internally, allowing for more efficient operation and better speed control, which reduces energy waste.
Yes, EC fans are generally more expensive initially, but they offer long-term cost savings through reduced energy consumption.
EC fans are beneficial in applications requiring high efficiency, precise speed control, and low noise levels, such as modern HVAC systems and data centers.
Yes, EC fans can be retrofitted to replace existing AC motors, offering a straightforward upgrade path to improve efficiency.
