When building or maintaining a computer, one of the most fundamental yet often misunderstood aspects is the direction in which a computer fan blows. The orientation of your PC fans can have a significant impact on the cooling efficiency, dust management, and overall health of your system. Whether you are a seasoned PC builder or a beginner assembling your first rig, understanding fan airflow is crucial for keeping your components cool and your computer running smoothly.
In this comprehensive guide, you will discover how to identify the direction of airflow in computer fans, why it matters, and how to optimize your PC's cooling setup for maximum performance and longevity.
Computer fans are designed to move air in one direction. This movement is essential for drawing cool air into your case and expelling hot air generated by components such as the CPU and GPU. The two primary roles for fans in a PC are intake and exhaust.
Intake fans are responsible for pulling cool air from outside the case into the interior. These fans are typically mounted at the front or sometimes the bottom of the case. Their main job is to ensure a steady supply of fresh air to the components that need it most.
Exhaust fans push hot air out of the case. They are usually installed at the rear or top of the case, where hot air naturally rises. By expelling warm air, exhaust fans help maintain a lower internal temperature, preventing heat buildup that can damage sensitive electronics.
The ideal setup creates a continuous path for air to travel: cool air enters through the intake fans, passes over heat-generating components, and is then pushed out by the exhaust fans. This airflow pattern is critical for effective cooling.
Knowing which way your fan blows is essential for proper installation. Here are several practical methods to identify airflow direction, whether the fan is in your hand or already mounted in your case.
Most modern computer fans have small arrows molded into the plastic frame. One arrow indicates the direction of airflow, while another shows the direction the blades spin. The airflow arrow points to the side where the air will exit, which is the exhaust side.
If your fan does not have arrows, the shape of the blades can provide clues. The side where the blades curve away from you (the convex side) is the intake side. The side where the blades curve toward you (the concave side) is the exhaust side. Additionally, the exhaust side usually features support struts or a cross-shaped structure holding the fan motor in place, often with a manufacturer's label or sticker at the center.
If the fan is already running, you can use your hand to feel which way the air is moving. The side where you feel air blowing out is the exhaust, while the opposite side is the intake.
- Front of the Case: Fans mounted here should be oriented as intakes, drawing cool air in.
- Rear/Top of the Case: Fans in these positions should be set as exhausts, pushing warm air out.
The orientation of your computer fans directly affects cooling performance, dust accumulation, and the overall longevity of your hardware.
Correct fan orientation ensures that cool air reaches critical components, such as the CPU and GPU, while hot air is efficiently expelled. Incorrectly installed fans can trap heat inside the case, causing temperatures to rise and potentially leading to thermal throttling or hardware damage.
The direction of airflow also influences how much dust enters your system. A positive pressure setup, where there are more intake fans than exhaust fans, helps prevent dust from entering through unfiltered gaps by pushing air out. Negative pressure, with more exhaust than intake, can draw dust in through every small opening, increasing the need for cleaning.
Maintaining optimal temperatures through proper airflow reduces stress on sensitive components, prolonging their lifespan and ensuring stable performance over time.

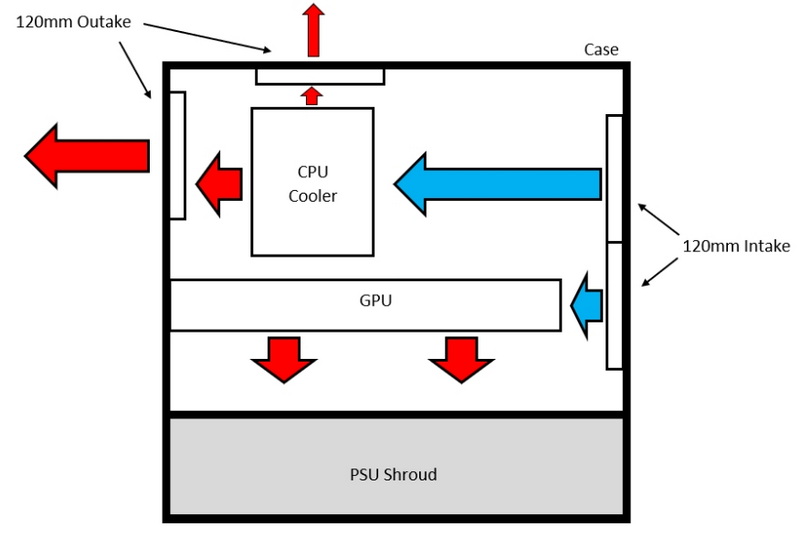

Most PC cases are designed for a front-to-back and bottom-to-top airflow pattern. Cool air is drawn in from the front and bottom, flows over the motherboard and graphics card, and is expelled through the rear and top. This arrangement leverages the natural tendency of hot air to rise and helps maintain a consistent temperature throughout the case.
- Positive Pressure: More intake fans than exhaust fans. This setup helps keep dust out, as excess air is forced out through gaps.
- Negative Pressure: More exhaust fans than intake fans. While this can remove hot air quickly, it may also draw dust in through unfiltered openings.
- Neutral Pressure: Equal number of intake and exhaust fans. This balanced approach can be effective if the case design and fan placement are optimal.
- Filtered Intakes: Always use dust filters on intake fans to minimize dust buildup inside your case.
- Fan Size and Speed: Larger fans can move more air at lower speeds, reducing noise. The speed and depth of a fan also affect how much air it can move and how much pressure it can generate.
- Obstructions: Ensure there are no cables or large components blocking the airflow path, as these can create turbulence and reduce cooling efficiency.
- Reversing Fan Orientation: Installing a fan backward can disrupt airflow, causing heat to build up inside the case.
- Overcrowding with Fans: More fans do not always mean better cooling. Too many fans can create conflicting air currents, reducing overall airflow efficiency.
- Ignoring Dust Filters: Not using filters on intake fans leads to rapid dust accumulation, which can insulate components and impede cooling.
Some advanced PC cases allow you to create separate airflow zones for different components, such as the CPU, GPU, and storage drives. This can be achieved by using dedicated fans and shrouds, ensuring each area receives optimal cooling.
In systems with liquid cooling, fans are often used to dissipate heat from radiators. The same airflow principles apply: orient radiator fans to either pull cool air in or push warm air out, depending on your case layout and cooling goals.
If you notice high temperatures or excessive dust inside your case, review your fan orientation and placement. Make sure that:
- Intake and exhaust fans are correctly positioned.
- There is a clear, unobstructed path for air to travel through the case.
- Dust filters are clean and not restricting airflow.
- The number of intake and exhaust fans is balanced according to your cooling needs.
Understanding which way a computer fan blows is a vital skill for anyone interested in building or maintaining a PC. Proper fan orientation ensures effective cooling, reduces dust buildup, and prolongs the life of your components. By following the guidelines outlined in this article, you can optimize your PC's airflow for both performance and longevity. Always double-check fan direction during installation, maintain clean filters, and periodically review your setup to ensure your system remains cool and efficient.
You can look at the fan blades. The side where the blades curve away from you is the intake side, while the side with the support struts or label is the exhaust side. You can also feel the airflow with your hand while the fan is running.
Having more intake fans than exhaust fans, known as positive pressure, is generally recommended. This setup helps keep dust out and ensures a steady supply of cool air to your components.
Intake fans are best placed at the front or bottom of the case to draw in cool air. Exhaust fans should be installed at the rear or top to expel warm air.
Yes, if fans are installed facing the wrong direction, airflow can be disrupted, leading to higher internal temperatures and potential overheating of components.
Absolutely. Dust buildup on fans and filters can restrict airflow, reduce cooling efficiency, and increase system temperatures. Regular cleaning is essential for maintaining optimal performance.
