Electronically commutated (EC) fans have become increasingly popular in air handling unit (AHU) applications due to their high efficiency, compact design, and ease of installation. These fans are particularly beneficial for retrofitting existing systems, offering improved performance and energy savings compared to traditional belt-driven fans. In this article, we will delve into the key aspects of EC fans for AHU installation and maintenance, including their benefits, installation procedures, and maintenance requirements.
EC fans, such as those from ebm-papst, offer several advantages over conventional fans:
1. High Efficiency: EC fans achieve efficiencies well above 60%, significantly reducing energy consumption and operational costs. This is primarily due to the integrated electronic controls that optimize motor performance at various speeds.
2. Compact Design: Their integrated motor and electronics design makes them more compact, reducing space requirements and simplifying installation. This is particularly advantageous in retrofit projects where space is limited.
3. Variable Speed Control: Built-in variable speed drives allow for precise airflow control, enhancing system flexibility and performance. This control can be integrated with building management systems (BMS) for automated adjustments.
Installing EC fans in AHUs involves several key steps:
1. Mounting Types: EC fans can be mounted using spider brackets for smaller sizes or cube designs for larger models, ensuring stability and ease of access. Spider brackets provide flexibility in mounting orientations, while cube designs offer a more robust and vibration-resistant solution for heavier fans.
2. Power and Control Wiring: Proper wiring is crucial for safe and efficient operation. This includes connections for speed control and potential integration with building management systems. EC fans typically require both power and control signal connections. The power wiring should adhere to local electrical codes, and control wiring often involves connecting to a 0-10V signal for speed modulation.
3. Inlet and Exhaust Guarding: Ensuring proper guarding on both the inlet and exhaust sides is essential for safety and preventing debris entry. These guards prevent accidental contact with moving fan blades and protect the fan from ingesting large particles that could damage the impeller or motor.
1. Preparation:
- Ensure the AHU is powered down and locked out for safety.
- Verify that the new ec fan ahu unit is compatible with the existing AHU system in terms of voltage, airflow, and pressure requirements.
- Gather necessary tools, including screwdrivers, wrenches, wire strippers, multimeters, and safety equipment (gloves, safety glasses).
2. Removal of Old Fan:
- Carefully disconnect the existing fan's power and control wiring. Label the wires for easy reconnection if needed.
- Remove the old fan assembly, ensuring that any mounting hardware (bolts, screws) is securely retained.
3. Mounting the EC Fan:
- Choose the appropriate mounting method (spider bracket or cube design) based on the fan size and AHU configuration.
- Securely attach the ec fan ahu to the mounting structure, ensuring that it is level and properly aligned.
- Verify that there is sufficient clearance around the fan for proper airflow and maintenance access.
4. Wiring Connections:
- Connect the power wiring to the ec fan ahu, following the wiring diagram provided by the manufacturer. Ensure that all connections are tight and properly insulated.
- Connect the control wiring to the BMS or speed controller, following the manufacturer's instructions.
- Double-check all wiring connections to prevent short circuits or other electrical issues.
5. Guarding Installation:
- Install inlet and exhaust guards to prevent accidental contact with the fan blades and protect the fan from debris.
- Ensure that the guards are securely attached and do not obstruct airflow.
6. Testing and Commissioning:
- Restore power to the AHU and verify that the ec fan ahu is operating correctly.
- Use a multimeter to check voltage and current readings to ensure they are within the specified ranges.
- Adjust the fan speed using the BMS or speed controller to verify that it is responding correctly.
- Monitor the airflow and pressure readings to ensure that the ec fan ahu is delivering the required performance.

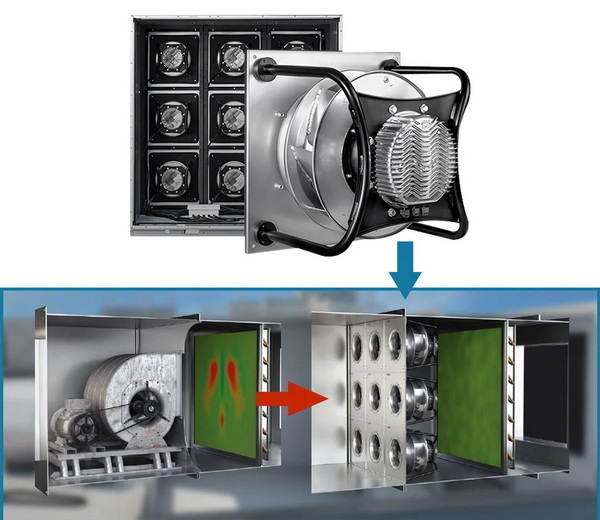

- Space Constraints: Ec fan ahu units are designed to fit through existing access doors, making them ideal for retrofit projects. However, it is crucial to measure the available space before installation to ensure proper fit.
- Airflow Requirements: The mounting arrangement should be chosen based on required airflow and available space. Consider the pressure drop across the AHU and select a fan that can deliver the necessary airflow at the required pressure.
- Vibration Isolation: Use vibration isolators to minimize noise and vibration transmission to the AHU structure. This is particularly important in sensitive environments where noise levels need to be kept to a minimum.
1. Filter Cleaning: Regularly clean or replace filters to maintain airflow efficiency and prevent dust buildup. Dirty filters can significantly reduce airflow and increase energy consumption. It is recommended to check filters monthly and clean or replace them as needed.
2. Fan Inspection: Periodically inspect fans for dust accumulation and clean them as needed to ensure optimal performance. Dust buildup on the fan blades can reduce efficiency and cause imbalance, leading to increased noise and vibration. Cleaning can be done with a vacuum cleaner or compressed air.
3. Condensate Drainage System: Regularly check and clean the condensate drainage system to prevent clogs. Clogged drains can lead to water damage and promote the growth of mold and bacteria, which can affect indoor air quality.
4. Bearing Lubrication: Some ec fan ahu units may have bearings that require periodic lubrication. Follow the manufacturer's recommendations for lubrication frequency and type of lubricant.
5. Wiring Inspection: Inspect wiring connections for looseness or corrosion. Loose connections can cause electrical problems and potentially lead to fire hazards.
- Non-Operating Fan: Check power connections, wiring, and ensure proper installation. Verify that the fan is receiving power and that all connections are secure. If the fan still does not operate, check the control signal and the motor for any signs of damage.
- Reduced Airflow: Inspect for blockages in the fan or ductwork and clean filters. Obstructions in the ductwork can restrict airflow and reduce the fan's performance. Also, check the fan blades for damage or wear.
- Excessive Noise or Vibration: Check for loose mounting hardware or imbalance in the fan blades. Tighten any loose bolts or screws and balance the fan blades if necessary. Vibration isolators can also help reduce noise and vibration transmission.
- Overheating: Ensure proper ventilation around the motor and check for any signs of overheating. Overheating can damage the motor and reduce its lifespan. Verify that the motor is not overloaded and that the ambient temperature is within the specified range.
1. Motor Testing:
- Use a multimeter to check the motor windings for continuity and insulation resistance.
- Compare the readings with the manufacturer's specifications to identify any potential motor problems.
2. Control Signal Analysis:
- Use an oscilloscope to analyze the control signal from the BMS or speed controller.
- Verify that the control signal is within the specified range and that it is being properly transmitted to the fan.
3. Bearing Analysis:
- Use a vibration analyzer to assess the condition of the fan bearings.
- Identify any signs of bearing wear or damage, such as increased vibration levels or unusual noise.
Ec fan ahu units offer a superior solution for AHU applications, providing high efficiency, ease of installation, and reduced maintenance compared to traditional fans. By understanding the installation and maintenance requirements of EC fans, users can maximize their benefits and ensure optimal system performance. Regular maintenance and prompt troubleshooting can extend the lifespan of the ec fan ahu and prevent costly repairs. The use of ec fan ahu technology contributes to energy efficiency and improved indoor air quality, making it a valuable investment for any building.
EC fans provide high efficiency, compact design, and variable speed control, making them ideal for energy savings and system flexibility. Their integrated electronic controls optimize motor performance at various speeds.
The choice between spider mounting and cube design depends on the fan size and available space. Spider mounting is suitable for smaller fans, while cube designs offer a more robust and vibration-resistant solution for larger models.
Regular tasks include cleaning or replacing filters, inspecting and cleaning fans, checking the condensate drainage system, lubricating bearings (if applicable), and inspecting wiring connections.
Check power connections, wiring, and ensure proper installation. Also, verify that there are no blockages in the fan or ductwork. Use a multimeter to check voltage and current readings. If the fan still does not operate, consult the manufacturer's troubleshooting guide.
Yes, EC fans are highly suitable for retrofitting existing systems due to their compact size and ability to fit through existing access doors. They offer improved performance and energy savings compared to traditional fans. Ensure that the ec fan ahu unit is compatible with the existing AHU system before installation.
