In the realm of modern engineering and design, the efficient movement of air is a cornerstone for cooling, ventilation, and environmental control in a vast array of devices and spaces. Among the many types of fans available, the custom tangential cross flow fan stands out due to its unique structure, ability to provide uniform airflow, and adaptability for specialized applications. This in-depth article will explore what a custom tangential cross flow fan is, how it operates, its construction, features, customization possibilities, advantages, and the industries that benefit most from its use.
For those who prefer a visual introduction, there are numerous video resources available online that demonstrate the structure and operation of tangential and cross-flow fans in real-world applications.
A custom tangential cross flow fan, also known as a transverse or cross-flow fan, is a specialized air-moving device characterized by its elongated cylindrical impeller fitted with forward-curved blades. Unlike axial or radial fans, which move air in a straight line or outward from the center, a tangential cross flow fan draws air perpendicularly across the full length of its impeller and expels it in a uniform, laminar sheet along its length. The “custom” aspect refers to the ability to tailor the fan's dimensions, materials, motor specifications, and features to meet specific application requirements.
At the heart of a custom tangential cross flow fan is its barrel-shaped impeller, which rotates within a precisely engineered housing. As the impeller spins, the forward-curved blades scoop air from the inlet side, channel it through the impeller's length, and expel it tangentially out the opposite side. This process generates a broad, even sheet of airflow, ideal for applications requiring uniform air distribution across a wide area.
- Air Intake: When the motor activates, the impeller begins to rotate. The forward-curved blades generate a pressure differential, drawing air into the fan through the inlet, which typically runs the full length of the impeller.
- Air Movement: The air is captured between the blades and guided through the impeller. Inside the housing, a vortex is formed, stabilizing the airflow and maintaining a consistent direction.
- Air Exhaust: The air exits the fan in a smooth, laminar flow, distributed evenly along the length of the outlet. The design of the housing, including features like the vortex tongue, ensures that the airflow remains stable and uniform.
This unique mechanism allows the custom tangential cross flow fan to deliver consistent airflow with minimal turbulence and noise, making it suitable for sensitive environments and compact spaces.

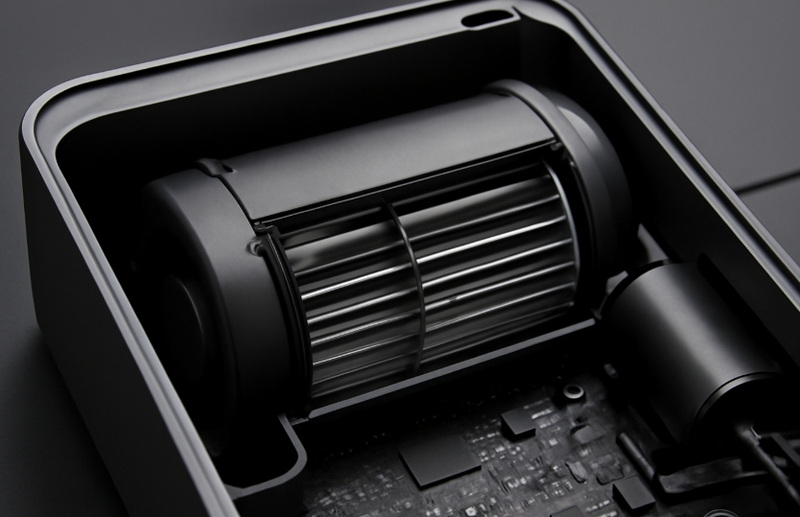

- Impeller: The core of the fan, typically a long, cylindrical wheel fitted with forward-curved blades. The impeller's length is often much greater than its diameter, enabling the broad, even airflow characteristic of cross flow fans.
- Motor: Drives the impeller, available in various configurations such as AC, DC, or EC motors to suit efficiency, speed control, and noise requirements.
- Housing: Encloses the impeller and directs airflow. The housing design, particularly the placement of the vortex tongue, is crucial for performance optimization.
- Mounting and Customization: Custom tangential cross flow fans can be tailored with specific mounting brackets, materials like aluminum or stainless steel, and environmental protection features to meet unique installation needs.
The “custom” in custom tangential cross flow fan means that manufacturers can adjust:
- Length, diameter, and blade pitch of the impeller
- Motor type and control features, including PWM speed control or tachometer feedback
- Housing materials and shapes for environmental resistance or size constraints
- Integration with heaters, sensors, or other system components
One of the most significant benefits is the ability to produce a consistent, laminar sheet of air across the entire length of the outlet. This is essential for applications like air curtains, electronics cooling, and HVAC systems, where even air distribution is critical.
Custom tangential cross flow fans are slim and elongated, making them ideal for installations where space is limited or a low-profile solution is required.
The design inherently minimizes mechanical noise and vibration, making these fans suitable for environments where quiet operation is essential, such as medical devices, office equipment, and residential appliances.
With customizable features, these fans can be adapted to various orientations and integrated into complex systems, including vertical or horizontal mounting and operation in harsh environments.
When paired with efficient motors, especially EC or DC types, custom tangential cross flow fans can deliver high performance with low power consumption.
Custom tangential cross flow fans are widely used in:
- HVAC Systems: For uniform air distribution in heating, ventilation, and air conditioning units.
- Air Curtains: Creating invisible barriers of air at building entrances to maintain temperature and prevent contamination.
- Electronics Cooling: Providing gentle, widespread airflow for sensitive electronic components and displays.
- Home Appliances: Used in ovens, dryers, and air purifiers for efficient and quiet air movement.
- Industrial Equipment: Cooling transformers, control panels, and machinery where even airflow is required.
- Automotive: In vehicle climate control systems and battery cooling for electric vehicles.
- Commercial Displays: Cooling for digital signage, kiosks, and LED billboards.
- Medical Devices: Ensuring safe, quiet cooling in diagnostic and therapeutic equipment.
Custom tangential cross flow fans are not one-size-fits-all. Manufacturers work closely with clients to determine the precise needs of each application. For example, if a client requires a fan for an outdoor digital billboard, the fan may be built with corrosion-resistant materials, integrated heaters for cold climates, and specific mounting brackets for easy installation. In electronics cooling, the fan might be designed with ultra-quiet motors and compact housings to fit within slim device enclosures.
| Feature | Custom Tangential Cross Flow Fan | Axial Fan | Centrifugal/Radial Fan |
|---|---|---|---|
| Airflow Pattern | Uniform, laminar, broad sheet | Focused, directional | Outward from center |
| Noise Level | Low | Moderate to high | Moderate |
| Design | Long, slim, cylindrical | Short, round | Round, snail-shell |
| Space Efficiency | High (fits tight spaces) | Moderate | Low (bulky) |
| Customization | Extensive | Moderate | Moderate |
| Typical Applications | Air curtains, displays, HVAC | Fans, blowers | Industrial blowers |
While custom tangential cross flow fans offer many advantages, they are not suitable for every application. Their airflow velocity and pressure are generally lower than those of centrifugal fans, making them less effective for high-pressure or pinpoint cooling tasks. Additionally, the efficiency of the fan depends on precise housing and impeller design, so careful engineering is required for optimal performance.
Custom tangential cross flow fans represent a unique solution for applications requiring uniform, low-noise, and space-efficient airflow. Their ability to be tailored to specific requirements makes them invaluable in industries ranging from HVAC and electronics to automotive and commercial displays. By understanding their working principle, construction, and advantages, engineers and designers can select or specify the ideal custom tangential cross flow fan for their needs, ensuring reliable and efficient air movement in even the most challenging environments.
A custom tangential cross flow fan is specifically designed and manufactured to meet unique application requirements, such as specific dimensions, materials, or integrated features. Standard fans are mass-produced with fixed specifications, while custom fans can be tailored for optimal performance in specialized environments.
Custom tangential cross flow fans are ideal for air curtains because they deliver a uniform, laminar airflow across wide openings, creating an effective barrier against outside air, dust, and insects without causing drafts or noise.
Yes, with proper customization, these fans can be built using weather-resistant materials, sealed housings, and integrated heating elements to ensure reliable operation in harsh or outdoor conditions.
While custom tangential cross flow fans excel in delivering uniform airflow with low noise, their pressure and velocity are generally lower than centrifugal fans. However, when paired with efficient motors and optimized housing design, they can offer excellent energy efficiency for suitable applications.
Maintenance is typically minimal, involving periodic cleaning of the impeller and housing to prevent dust buildup and regular checks on the motor and bearings. Their simple design and low vibration contribute to long service life and reduced maintenance needs.
