Squirrel cage fans, also widely recognized as centrifugal blower fans, are essential components in today's ventilation, heating, cooling, and industrial systems. Their unique design and operational efficiency have made them indispensable across a vast array of applications, from residential HVAC systems to large-scale industrial manufacturing processes. This comprehensive article explores what squirrel cage fans are, how they work, their advantages and limitations, and their diverse uses across various industries.

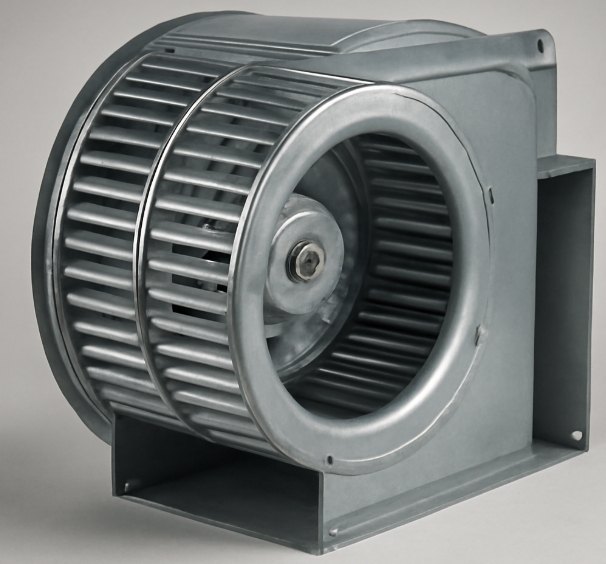

A squirrel cage fan is a type of centrifugal fan characterized by its cylindrical, cage-like impeller that closely resembles the exercise wheels found in small animal cages. This impeller consists of a series of blades or vanes mounted around a central hub, all housed within a cylindrical or scroll-shaped enclosure. The primary function of this configuration is to efficiently move air by drawing it into the center and expelling it radially outward.
These fans are often referred to by several alternative names, including blower fans, centrifugal blowers, cage fans, radial fans, rotary fans, snail fans, or scroll fans. While the terminology may vary depending on the application or industry, the core design principle remains the same: using centrifugal force to move air efficiently through a controlled pathway.
The impeller is the heart of the squirrel cage fan. Its blades are typically forward-curved, backward-curved, or straight, depending on the desired performance characteristics. The impeller's design determines the efficiency, noise level, and pressure capabilities of the fan. As the impeller spins, it draws air into the center and expels it outward, creating a continuous and powerful airflow.
The housing encloses the impeller and directs the airflow. Its design minimizes turbulence and prevents air from escaping prematurely, which maximizes the fan's efficiency. The housing is often scroll-shaped to optimize the path of the expelled air.
Squirrel cage fans are powered by electric motors, which convert electrical energy into the mechanical energy needed to spin the impeller. Motors can be single-phase for smaller, residential fans or three-phase for larger, industrial systems. The motor's power and efficiency are critical for the overall performance of the fan.
High-quality bearings and a sturdy shaft ensure smooth, reliable operation and long service life. Industrial-grade bearings are often used in heavy-duty applications to withstand continuous use and high temperatures.
The operation of a squirrel cage fan is based on the principles of centrifugal force. When the motor powers the impeller, the blades rotate rapidly, drawing air into the center of the fan. As the impeller spins, centrifugal force pushes the air outward along the blades, increasing its velocity and pressure. The air is then expelled from the outer circumference of the impeller through the fan's outlet, usually into a duct or directed toward a specific area.
Unlike axial fans, which move air parallel to the axis of rotation, squirrel cage fans move air perpendicular to the intake direction. This allows them to generate higher static pressure, making them ideal for applications that require air to be pushed through ductwork, filters, or heat exchangers.
The efficiency and noise level of a squirrel cage fan are heavily influenced by the shape and angle of the blades. Forward-curved blades are common in HVAC systems for their quiet operation and ability to move large volumes of air at low to moderate pressures. Backward-curved blades are used in applications requiring higher pressure and efficiency. The precise engineering of the blade geometry is essential for achieving optimal airflow and minimizing energy consumption.
For proper operation, the squirrel cage fan must spin in the correct direction. The leading edge of the blades should face the direction of rotation, allowing the fan to "scoop" air from the intake and expel it outward. If the fan runs in reverse, its efficiency drops dramatically, and it may not move enough air to serve its intended purpose.
The centrifugal design of squirrel cage fans allows for efficient conversion of electrical energy into kinetic energy, resulting in a high volume of airflow with relatively low power consumption. This efficiency translates into lower operational costs and supports sustainability initiatives.
Squirrel cage fans are compact and can deliver significant airflow in a small form factor. This makes them ideal for applications where space is limited, such as in electronic enclosures, vehicles, or compact HVAC units.
The design of the impeller and housing minimizes turbulence and vibration, resulting in lower noise levels compared to many other fan types. This makes squirrel cage fans suitable for residential and office environments where quiet operation is essential.
Unlike axial fans, squirrel cage fans can maintain airflow against resistance, such as ductwork or filters. This makes them invaluable in systems that require air to be pushed through obstacles or over long distances.
Squirrel cage fans are used in a wide range of applications, from HVAC and industrial processes to electronics cooling and automotive systems. Their adaptability and reliability make them a go-to solution for many air movement challenges.
While squirrel cage fans excel at handling moderate static pressures, they are less suitable for extremely high-pressure applications. In such cases, other fan types, such as axial fans or specialized blowers, may be more appropriate.
Like all mechanical equipment, squirrel cage fans require regular maintenance to ensure optimal performance. This includes cleaning the impeller and housing, lubricating bearings, and checking for wear or damage.
Proper installation is critical to ensure the fan operates efficiently and safely. Incorrect mounting or orientation can lead to reduced airflow, increased noise, or premature wear.
Squirrel cage fans are a cornerstone of heating, ventilation, and air conditioning systems. They are used to circulate air through ductwork, distribute heated or cooled air, and maintain comfortable indoor environments.
In factories and workshops, squirrel cage fans provide essential ventilation, remove dust or fumes, and cool machinery. Their ability to move large volumes of air efficiently makes them ideal for maintaining safe and productive workplaces.
Smaller squirrel cage fans are used to cool electronic equipment, such as servers, amplifiers, and computers. They help dissipate heat generated by sensitive components, ensuring reliable operation and extending the lifespan of devices.
In vehicles, squirrel cage fans are used in heating and cooling systems to blow air through the heater core or evaporator coil and into the passenger compartment. Their compact design and efficiency make them well-suited for automotive applications.
These fans are also found in clothes dryers, dehumidifiers, and air purification systems. They help move moist or contaminated air through filters and out of enclosed spaces, supporting drying and air quality improvement processes.
In aerospace, squirrel cage fans are used in ventilation and environmental control systems, where weight and space are at a premium. Their reliability and efficiency make them suitable for demanding environments.
Modern squirrel cage fans incorporate advanced materials and control systems to enhance performance and reliability. Features may include:
- Heat-resistant steel alloys for high-temperature applications
- Precision-engineered blade geometries for optimal airflow
- Industrial-grade bearings for extended service life
- Variable frequency drives for precise speed and energy management
- Plug arrangement designs for direct mounting to equipment enclosures
These innovations allow squirrel cage fans to meet the rigorous demands of industrial, commercial, and residential applications.
Regular maintenance is essential for ensuring the longevity and efficiency of squirrel cage fans. Key maintenance practices include:
- Inspecting and cleaning the impeller and housing to prevent dust buildup
- Lubricating bearings to reduce friction and wear
- Checking the alignment and balance of the impeller to minimize vibration
- Monitoring motor performance and replacing worn components as needed
Proper maintenance not only extends the life of the fan but also ensures consistent airflow and energy efficiency.
Squirrel cage fans are a vital technology in the world of air movement and ventilation. Their unique design, energy efficiency, quiet operation, and ability to handle static pressure make them the preferred choice for a wide range of applications-from residential HVAC systems to industrial manufacturing and electronics cooling. By understanding their construction, operation, and maintenance requirements, users can maximize the benefits of these versatile fans and ensure reliable performance in any setting.
Squirrel cage fans move air perpendicular to the intake direction using centrifugal force, allowing them to generate higher static pressure and efficiently push air through ductwork or filters. Axial fans, on the other hand, move air parallel to the axis of rotation and are better suited for applications with minimal resistance.
Yes, many industrial squirrel cage fans are constructed with heat-resistant materials and can operate in environments with elevated temperatures. Always check the manufacturer's specifications to ensure the fan is suitable for your specific application.
Maintenance frequency depends on the application and operating environment. In general, fans in dusty or industrial settings should be inspected and cleaned more frequently, while those in residential environments may require less frequent attention. Regular lubrication and inspection are recommended to ensure optimal performance.
The direction of rotation determines how effectively the fan moves air. If the fan spins in the wrong direction, its efficiency drops significantly, and it may not provide adequate airflow for the system. Always follow manufacturer guidelines for correct installation and operation.
Yes, squirrel cage fans are known for their quiet operation due to their efficient impeller and housing design. They are often used in offices, homes, and other environments where low noise levels are important.
