Ceiling mounted squirrel cage fans are a highly effective solution for improving air circulation, ventilation, and dust control in workshops, garages, commercial spaces, and even large residential areas. Known for their efficiency and durability, these fans are engineered to move significant volumes of air while operating quietly and reliably. However, installing a ceiling mounted squirrel cage fan is more involved than simply hanging a standard ceiling fan. Ensuring a safe, secure, and effective installation requires careful planning, the right tools, and strict adherence to safety guidelines.
This comprehensive guide will walk you through every step of installing a ceiling mounted squirrel cage fan safely, from choosing the right location to wiring, mounting, and final testing. We'll also address common safety hazards, provide tips for optimal performance, and answer frequently asked questions to help you get the most out of your fan.

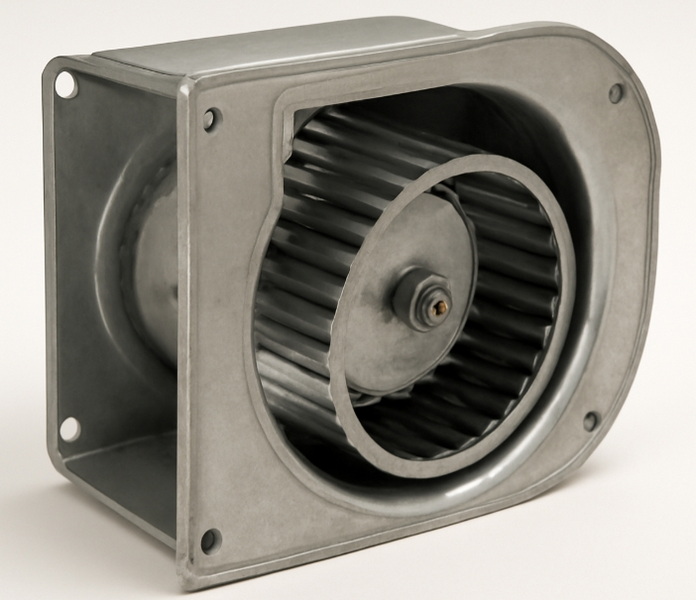

Squirrel cage fans, also known as centrifugal blowers, use a cylindrical rotor (the “squirrel cage”) to draw air in through the center and expel it at a 90-degree angle. This design allows them to generate high airflow at relatively low noise levels, making them ideal for ceiling mounting in spaces where efficient ventilation is needed.
- High airflow and pressure capabilities: They can move large volumes of air, making them suitable for large spaces.
- Quiet operation: Their design reduces noise compared to traditional axial fans.
- Effective for dust extraction and air filtration: They are commonly used in workshops and industrial settings.
- Durable and low-maintenance: Built to last, they require minimal upkeep.
Before you begin the installation, thorough planning and attention to safety are crucial. Improper installation can result in poor performance, damage to property, or even serious injury.
- Ceiling Structure: Ensure your ceiling can support the weight of the fan, including the mounting hardware. Most ceiling mounted squirrel cage fans are heavier than standard ceiling fans, so a reinforced joist or beam may be necessary.
- Clearance: Maintain at least 7 feet between the bottom of the fan and the floor, and at least 18 inches from any wall or obstruction. This ensures safe operation and optimal airflow.
- Electrical Supply: Verify that your electrical circuit can handle the fan's voltage and amperage requirements. Use a dedicated circuit if possible.
- Turn off power at the breaker before starting any electrical work.
- Use a sturdy ladder or scaffolding for access to the ceiling.
- Wear safety gear, including gloves and eye protection.
- If you are unsure about any step, consult a licensed electrician or professional installer.
Gather all necessary tools and materials before starting the installation to ensure a smooth workflow.
- Power drill and bits
- Screwdrivers (flat and Phillips)
- Adjustable wrench or socket set
- Wire strippers and cutters
- Voltage tester
- Stud finder
- Level
- Tape measure
- Ceiling mounted squirrel cage fan
- Mounting bracket or hardware (as specified by the manufacturer)
- Heavy-duty metal outlet box (UL listed for fan support)
- Electrical wire (as required by local code)
- Wire nuts and electrical tape
- Safety cable or secondary support
- Screws, washers, and anchors (as specified)
- Protective cage or guard (if not pre-installed)
- Locate a ceiling joist or beam capable of supporting the fan's weight. Use a stud finder to identify solid wood or metal framing.
- If no suitable support exists, install a fan-rated mounting brace or box between joists.
- Secure a heavy-duty, UL-listed metal outlet box to the joist or brace. Do not use plastic boxes, as they cannot support the weight and vibration of a squirrel cage fan.
- Follow the manufacturer's instructions to assemble the fan body, blades, and protective cage.
- Double-check that all screws and bolts are tightened securely.
- Remove the decorative canopy or cover from the fan (if present).
- Attach the mounting bracket to the outlet box using the provided screws and washers.
- Ensure the bracket is level and securely fastened.
- Route the fan's wires through the mounting bracket and into the outlet box.
- Using a voltage tester, confirm that the power is off.
- Connect the fan wires to the house wiring:
- Black (or red) to hot
- White to neutral
- Green or bare copper to ground
- Secure all connections with wire nuts and wrap with electrical tape.
- Carefully tuck the wires into the outlet box, keeping them separated and away from any moving parts.
- Lift the fan body into place and attach it to the mounting bracket according to the manufacturer's instructions.
- Use all provided fasteners and safety cables. The safety cable should be anchored directly to a ceiling joist as a secondary support.
- Double-check that the fan is securely mounted and does not wobble.
- If your fan did not come with a pre-installed cage, attach the guard using the provided hardware.
- Ensure the cage is firmly secured to prevent accidental contact with the moving blades.
- Slide the canopy up to cover the mounting bracket and secure it in place.
- Install any additional components, such as downrods, remote receivers, or light kits, as needed.
- Turn the power back on at the breaker.
- Test the fan at all speed settings, checking for smooth, quiet operation.
- If the fan wobbles or vibrates, turn off the power and recheck all fasteners and mounting points.
- Run the fan at all speeds and observe for any unusual noises, vibrations, or movement.
- Test any remote controls or wall switches for proper function.
- Periodically check all mounting hardware for tightness.
- Clean the blades and cage to prevent dust buildup.
- Inspect the wiring and connections annually.
- Listen for unusual sounds that may indicate bearing wear or loose components.
Always ensure the protective cage is in place and securely fastened. Never operate the fan without its guard, as contact with moving blades can cause serious injury.
Before and after installation, inspect all parts for damage or looseness. Tighten any loose screws or bolts immediately to prevent operational hazards.
Never work on wiring with the power on. Use a voltage tester before handling any wires. If you are not confident in your electrical skills, hire a qualified electrician.
Using an inadequate outlet box or failing to anchor the fan to a structural support can result in the fan falling. Always use a fan-rated metal box and secure it to a joist or beam.
Maintain proper clearance from walls, furniture, and other objects to prevent airflow disruption and accidental contact.
Installing a ceiling mounted squirrel cage fan is a highly effective way to improve air quality, ventilation, and comfort in a variety of spaces. By carefully planning your installation, using the correct tools and materials, and following all safety guidelines, you can ensure a secure, efficient, and long-lasting setup. Regular maintenance and periodic inspections will keep your fan running smoothly for years to come. If you ever have doubts about your installation, consult a professional to guarantee safety and performance.
For safety and optimal airflow, the bottom of the fan should be at least 7 feet above the floor. In some regions, a higher clearance may be required, especially in commercial or industrial settings.
While a skilled DIYer can install a ceiling mounted squirrel cage fan, it is strongly recommended to hire a professional electrician, especially for wiring and heavy-duty mounting. This ensures compliance with local codes and reduces the risk of injury.
Regularly clean the blades and cage to prevent dust buildup, check all fasteners for tightness, and inspect wiring annually. Listen for unusual noises, which may indicate a need for bearing lubrication or part replacement.
Turn off the fan and power supply, then check all mounting hardware and fasteners for tightness. Ensure the fan is properly balanced and that the ceiling box is securely attached to a joist or brace.
These fans are suitable for most dry, indoor environments. Avoid installing them in wet or hazardous locations unless the fan is specifically rated for such conditions. Always follow the manufacturer's guidelines for safe use.
