Airflow efficiency is a critical factor in the performance of any heating, ventilation, and air conditioning (HVAC) system. Efficient airflow ensures optimal comfort, energy savings, and extends the life of the equipment. One of the most effective devices for achieving this is the 4 speed squirrel cage fan, especially the popular "4 speed squirrel cage fans p n 902993" model. This comprehensive article explores the engineering behind these fans, their advantages, and how their four-speed functionality can dramatically enhance both airflow and overall system efficiency.
A squirrel cage fan, also known as a centrifugal blower, features a cylindrical impeller with a series of curved blades arranged around a central hub. This assembly is housed within a round or scroll-shaped enclosure, resembling a hamster wheel, which is where the fan gets its name. Unlike axial fans that move air in a straight line, squirrel cage fans draw air into the center and expel it outward using centrifugal force, resulting in a radial airflow pattern.
- Impeller: The rotating core of the fan, responsible for drawing air in and accelerating it outward. The shape and curvature of the blades determine the fan's efficiency, noise level, and pressure capabilities.
- Housing: Encloses the impeller and directs airflow, reducing turbulence and maximizing efficiency.
- Motor: Powers the impeller, converting electrical energy into mechanical force. In 4 speed squirrel cage fans p n 902993, the motor is designed for precise speed control and reliability.
- Bearings: Support the rotating assembly, reducing friction and ensuring smooth, quiet operation.
When the impeller spins, air enters through the center and is flung outward by centrifugal force. This design allows the fan to create significant static pressure, enabling it to push air through long ducts and around obstacles. The controlled, radial airflow ensures even distribution throughout the space, eliminating hot or cold spots and improving overall comfort.
The unique blade design of squirrel cage fans, particularly in the 4 speed squirrel cage fans p n 902993, enables the movement of large volumes of air at various pressures. This makes them ideal for HVAC systems, industrial ventilation, and other applications requiring consistent, powerful airflow.
Squirrel cage fans are renowned for their quiet performance. The smooth, continuous motion of the impeller, combined with the enclosed housing, reduces noise and vibration. This makes them suitable for environments where noise control is crucial, such as homes, offices, and hospitals.

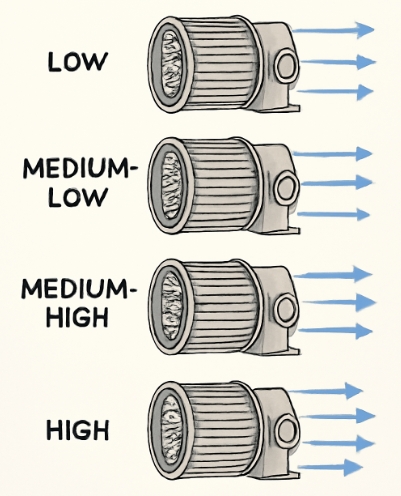

The 4 speed squirrel cage fans p n 902993 offer the flexibility to adjust airflow according to changing needs. Each speed setting alters the rate at which the impeller spins, thereby controlling the volume and pressure of air delivered. This capability brings several key benefits:
- Energy Efficiency: Lower speeds consume less power, reducing energy costs during periods of low demand. Higher speeds can be used when rapid air exchange or increased cooling/heating is needed.
- Customized Comfort: Users can fine-tune airflow to match specific room or process requirements, ensuring optimal comfort and system performance.
- Extended Equipment Life: Running the fan at lower speeds when possible reduces wear and tear, prolonging the lifespan of both the fan and the associated HVAC equipment.

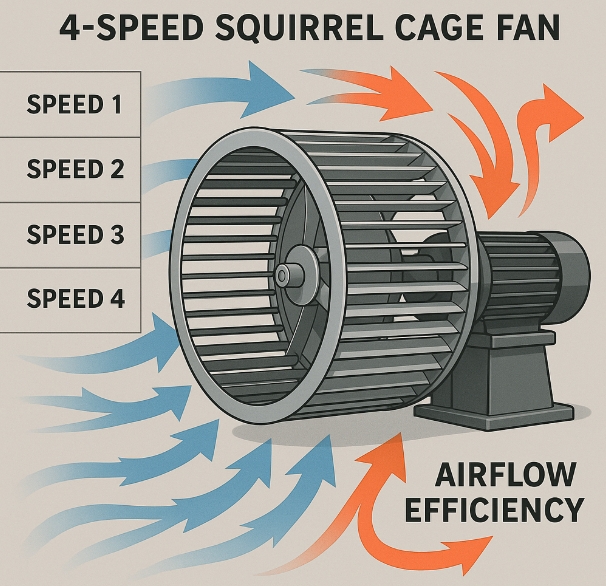

In a 4 speed squirrel cage fan, such as the 4 speed squirrel cage fans p n 902993, the motor is wired to allow selection among four distinct speed settings. Each setting corresponds to a different winding configuration within the motor, changing the amount of current and thus the speed of rotation. This setup can be controlled manually or automatically via thermostats and smart controllers.
Imagine a large commercial building. During peak hours, the fan runs at higher speeds to quickly circulate conditioned air. At night or during mild weather, the system drops to a lower speed, maintaining comfort while minimizing energy use. This adaptability is a hallmark of the 4 speed squirrel cage fans p n 902993, making them a preferred choice for modern HVAC systems.
| Feature | Squirrel Cage (Centrifugal) Fan | Axial Fan |
|---|---|---|
| Airflow Direction | Radial (outward from center) | Linear (along axis) |
| Static Pressure | High (good for ducts/obstacles) | Low |
| Noise Level | Low to moderate | Moderate to high |
| Efficiency | High | Moderate |
| Speed Control | Excellent (multi-speed) | Limited |
| Application Flexibility | Very high | Moderate |
Squirrel cage fans, especially those with four speeds, outperform axial fans in environments where variable airflow, pressure, and quiet operation are essential.
The most common use is in residential and commercial HVAC systems, where they distribute heated or cooled air through ductwork. Their ability to handle static pressure and deliver consistent airflow ensures even temperature distribution and improved indoor air quality.
In factories and workshops, these fans remove fumes, dust, and airborne contaminants, maintaining safe and healthy working conditions. The four-speed functionality allows operators to adjust airflow based on real-time needs, optimizing both safety and energy consumption.
Sensitive electronics require precise temperature control. The 4 speed squirrel cage fans p n 902993 can be set to lower speeds for gentle cooling or ramped up during periods of high thermal load, protecting equipment from overheating.
From drying processes in manufacturing to environmental chambers and laboratory setups, the adaptability and efficiency of these fans make them indispensable wherever controlled airflow is needed.
Like all mechanical equipment, squirrel cage fans require periodic maintenance to sustain peak performance. This includes cleaning the impeller and housing, lubricating bearings, and checking electrical connections. Proper maintenance ensures:
- Consistent airflow and efficiency
- Reduced risk of breakdowns
- Longer service life for both the fan and the entire HVAC system
- Reduced Airflow: Often caused by dust buildup or obstructions in the housing.
- Unusual Noise: May indicate worn bearings or loose components.
- Motor Overheating: Can result from poor ventilation or electrical issues.
Prompt attention to these issues keeps the 4 speed squirrel cage fans p n 902993 running smoothly and efficiently.
The 4 speed squirrel cage fans p n 902993 represent a pinnacle of airflow efficiency and adaptability in modern ventilation and HVAC systems. Their centrifugal design enables powerful, consistent airflow even against significant static pressure. The four-speed functionality provides unmatched flexibility, allowing users to balance comfort, energy savings, and system longevity. Whether in homes, offices, factories, or laboratories, these fans are a testament to engineering excellence, delivering reliable performance across a spectrum of demanding applications.
The centrifugal design and multi-speed motor allow these fans to move large volumes of air with less energy, especially at lower speeds. Their ability to handle static pressure and minimize turbulence further enhances efficiency.
Start with the lowest speed that meets your airflow needs. Increase the speed only when higher ventilation or rapid air exchange is required. This approach maximizes energy savings and prolongs equipment life.
Yes, most systems can accommodate these fans, but proper wiring and control integration are essential. Consult an HVAC professional to ensure compatibility and optimal performance.
Routine cleaning of the impeller and housing, lubrication of bearings, and inspection of electrical connections are recommended. Regular maintenance ensures reliable operation and extends the fan's lifespan.
If the fan rotates in the wrong direction, airflow efficiency drops dramatically, and the system may overheat or fail to provide adequate ventilation. Always verify rotation according to manufacturer guidelines during installation or motor replacement.
