Electronically commutated (EC) fans have become increasingly popular due to their energy efficiency and versatility in various applications. Unlike traditional fans, EC fans require specific wiring configurations to ensure optimal performance and safety. This article explores whether a standard fan wiring diagram can be used for EC fans and provides detailed insights into the wiring requirements for these advanced fans.

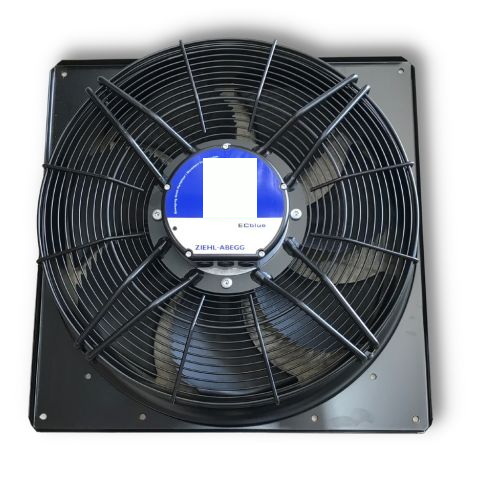

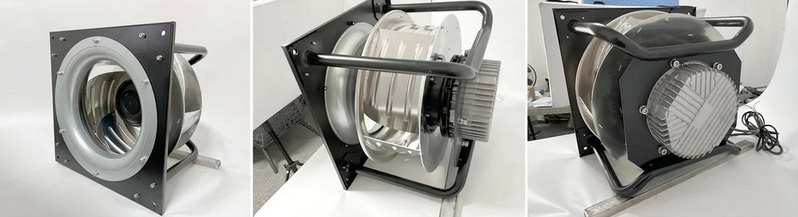

EC fans utilize electronically commutated motors, which are more efficient and offer better control over fan speed compared to traditional AC or DC motors. They are widely used in air handling units (AHUs), ventilation systems, and other applications where precise airflow control is necessary.
- Energy Efficiency: EC fans consume less power while maintaining or improving airflow compared to traditional fans.
- Variable Speed Control: They can be controlled using various signals such as 0-10V, PWM, or MODBUS, allowing for precise airflow adjustments.
- Reliability and Durability: EC fans have fewer moving parts, reducing wear and tear and increasing their lifespan.
Standard fan wiring diagrams typically involve simple connections between the fan motor and the power supply. However, EC fans require more complex wiring due to their control capabilities.
A standard fan wiring diagram usually includes:
- Power Supply: Direct connection to the mains power.
- Motor Connection: Simple two-wire or three-wire connection depending on the fan type.
- Control: Often limited to on/off switches or basic speed controllers.
EC fan wiring diagrams are more complex and include additional connections for control and communication:
- Power Supply: Requires single-phase or three-phase mains power.
- Control Wiring: Includes connections for 0-10V, PWM, MODBUS, or other control signals.
- Grounding: Essential for safety and proper operation.
EC fans use specific wiring interfaces such as the P5 for single-phase and M3 for three-phase models. These interfaces provide multiple terminals for power, control, and communication.
The P5 interface includes terminals for power (L, N, PE), relay connections (NC, COM), and control signals (0-10V, RSA, RSB).
P5 Wiring Diagram:
| Terminal | Function | Color |
|---|---|---|
| L | Power | Black |
| N | Neutral | Blue |
| PE | Ground | Green/Yellow |
| NC | Relay NC | White 1 |
| COM | Relay COM | White 2 |
| 0-10V | Control | Yellow |
| RSA | MODBUS A | White |
| RSB | MODBUS B | Brown |
| GND | Ground | Blue |
| 10V | +10V | Red |
The M3 interface is used for three-phase EC fans and includes terminals for power (L1, L2, L3, PE), relay connections (NO, NC, COM), and control signals (Ain1 U/PWM, RSA, RSB).
M3 Wiring Diagram:
| Terminal | Function | Color |
|---|---|---|
| L1 | Power | - |
| L2 | Power | - |
| L3 | Power | - |
| PE | Ground | - |
| NO | Relay NO | - |
| NC | Relay NC | - |
| COM | Relay COM | - |
| Ain1 U | Control | - |
| RSA | MODBUS A | - |
| RSB | MODBUS B | - |
When wiring EC fans, it's crucial to follow safety guidelines and best practices:
- Grounding: Ensure proper grounding to prevent electrical shock.
- Cable Sizing: Use cables that match the ampacity requirements of the fan.
- Shielding: Use shielded cables for MODBUS connections to prevent interference.
- Isolation: Install isolators and circuit breakers for each fan in an AHU.
- Regular Maintenance: Regularly inspect wiring for signs of wear or damage.
- Training: Ensure personnel handling EC fan wiring are trained and certified.
- Compliance: Adhere to local electrical codes and standards.
Common issues with EC fan wiring include:
- Communication Errors: Check MODBUS connections and ensure proper shielding.
- Power Issues: Verify that the power supply matches the fan's requirements.
- Control Signal Problems: Ensure control signals are within the specified range (e.g., 0-10V).
1. Check Wiring Connections: Verify all connections are secure and not damaged.
2. Use Diagnostic Tools: Utilize tools like multimeters to check voltage and continuity.
3. Consult Documentation: Refer to the fan's manual for specific troubleshooting guides.
EC fans can be integrated into advanced control systems for building automation. These systems allow for real-time monitoring and adjustments of fan performance based on environmental conditions.
EC fans can be connected to BMS via MODBUS or other communication protocols. This integration enables centralized control and monitoring of fan operations, enhancing energy efficiency and system reliability.
Advanced control systems can optimize energy consumption by adjusting fan speeds based on demand. This can lead to significant reductions in energy costs over time.
Standard fan wiring diagrams are not suitable for EC fans due to their complex control requirements. EC fans require specific wiring configurations that include power, control, and communication connections. Understanding these wiring diagrams is essential for safe and efficient operation of EC fans in various applications.
The main difference is the inclusion of control and communication connections in EC fan wiring diagrams, which are not present in standard fan diagrams.
No, EC fans should not be powered directly from the output of a variable speed drive. They require a direct connection to the mains power.
Shielded cables should be used for MODBUS connections to prevent electrical interference.
Proper grounding involves connecting the protective earth terminal to a grounding point, following local electrical codes or the National Electrical Code.
The RSA and RSB terminals are used for MODBUS communication, allowing the fan to receive control signals from a building management system (BMS).
