Ventilation is a fundamental aspect of creating healthy, comfortable, and energy-efficient indoor environments, whether in homes, offices, factories, or specialized industrial settings. Among the many options for air movement and ventilation, blower squirrel cage fans stand out as a preferred solution for a wide range of applications. This comprehensive guide explores what makes blower squirrel cage fans unique, their working principles, advantages, and why they are often the best choice for modern ventilation systems.

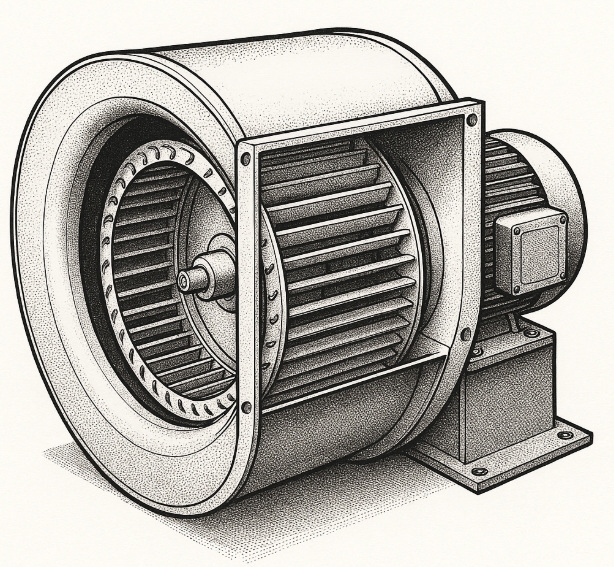

A blower squirrel cage fan, often referred to as a squirrel cage blower, is a type of centrifugal fan characterized by its cylindrical impeller, which closely resembles the exercise wheel found in a hamster's cage. Unlike axial fans, which move air parallel to the axis of rotation, squirrel cage blowers draw air into the center of the impeller and expel it radially outward, creating a powerful and directed airflow.

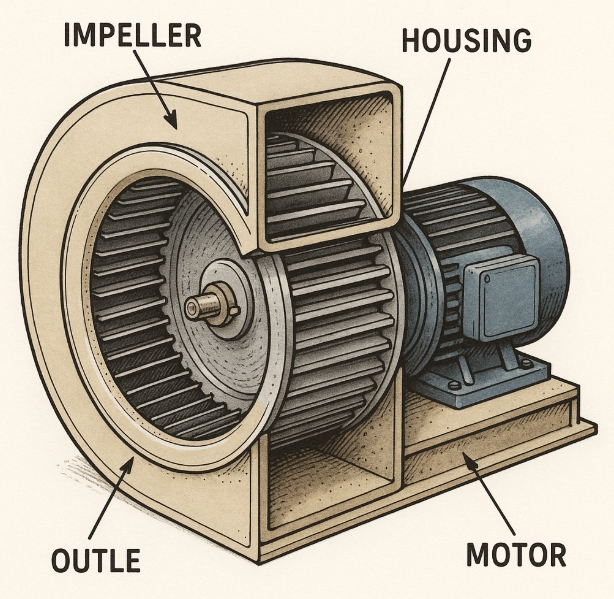

- Impeller: The heart of the blower, featuring numerous forward-curved, backward-curved, or straight blades. As the impeller spins, it uses centrifugal force to accelerate air outward from the center, generating a steady, high-volume airflow.
- Housing: A scroll-shaped or cylindrical enclosure that guides and contains the airflow, minimizing turbulence and maximizing efficiency.
- Motor: Typically an electric motor, either single-phase or three-phase, depending on the size and application. The motor provides the rotational force needed to drive the impeller.
- Mounting and Drive System: Options include direct drive for maximum efficiency or belt drive for adjustable speeds and flexibility.
The unique design of the impeller and housing allows blower squirrel cage fans to generate significant static pressure. This means they can push air through ductwork and filters, overcoming resistance that would stall or severely limit the performance of axial fans. This capability is essential for HVAC systems, industrial ventilation, and any application where air must be moved through a complex path.
Blower squirrel cage fans are renowned for their ability to move large volumes of air while consuming less power than many other fan types. Their centrifugal design efficiently converts electrical energy into kinetic energy, resulting in high airflow with relatively low energy consumption. This efficiency translates into lower operational costs and aligns with sustainability goals.
These fans excel at delivering powerful, consistent airflow, even when faced with the resistance of ductwork, filters, or other obstacles. Their ability to generate static pressure makes them ideal for applications where air must be distributed evenly across large spaces or pushed through complex ventilation systems.
The design of blower squirrel cage fans minimizes turbulence and vibration, resulting in significantly quieter operation compared to many traditional fans. This makes them suitable for residential, office, and other noise-sensitive environments.
Blower squirrel cage fans are built for long-term, continuous operation. Their robust construction and fewer moving parts reduce wear and tear, leading to longer service life and less frequent maintenance. Many models are rated for continuous use, making them a reliable choice for demanding environments.
These fans are available in a wide range of sizes, configurations, and materials, allowing them to be tailored to specific applications. Whether you need a compact unit for electronics cooling or a large, industrial-grade blower for process ventilation, there is a blower squirrel cage fan to meet your needs.
Despite their power, blower squirrel cage fans are often more compact than equivalent axial fans. This makes them ideal for installations where space is limited, such as inside HVAC units, electronic enclosures, or vehicle systems.
By enabling effective air circulation and filtration, these fans play a crucial role in maintaining indoor air quality. They help remove stale air, control humidity, and introduce fresh air, contributing to healthier and more comfortable indoor environments.
Blower squirrel cage fans are used across a diverse array of industries and settings, including:
- HVAC Systems: Central to heating, ventilation, and air conditioning in homes, offices, and commercial buildings.
- Industrial Ventilation: Used to exhaust fumes, control temperature, and maintain air quality in manufacturing plants, warehouses, and laboratories.
- Electronics Cooling: Essential for dissipating heat in server rooms, computer enclosures, and sensitive electronic equipment.
- Automotive and Aerospace: Used in vehicle climate control systems and aircraft environmental management due to their efficiency and compact size.
- Drying and Process Applications: Employed in drying grains, food products, painted surfaces, or timber by delivering controlled streams of air.
- Environmental Chambers: Maintain precise humidity and temperature for testing or storage.
| Feature | Blower Squirrel Cage Fan | Axial Fan |
|---|---|---|
| Airflow Direction | Radial (centrifugal) | Parallel (axial) |
| Static Pressure | High (handles ductwork) | Low (limited by resistance) |
| Noise Level | Low | Moderate to High |
| Energy Efficiency | High | Moderate |
| Durability | Excellent | Good |
| Space Requirements | Compact | Often larger |
| Applications | HVAC, industrial, electronics | General ventilation |
- Proper Sizing: Select a blower squirrel cage fan that matches the airflow and static pressure requirements of your system.
- Mounting: Ensure secure mounting to minimize vibration and noise. Many units offer direct-mount options for streamlined installation.
- Ductwork Compatibility: Use appropriate adapters or fittings to connect the fan to your ventilation ducts, especially if space is tight or the system layout is complex.
- Regular Cleaning: Dust and debris can accumulate on the impeller and housing, reducing efficiency. Periodic cleaning is essential, especially in dusty environments.
- Bearing and Motor Checks: Inspect bearings and motor components for wear and lubricate or replace as needed to maintain smooth operation.
- Balance and Alignment: Ensure the impeller remains balanced to prevent excessive vibration and noise.
- Electrical Connections: Check wiring and connections for signs of wear or damage, particularly in high-use or industrial settings.
While blower squirrel cage fans offer numerous advantages, they are not without limitations:
- Pressure Range: They are best suited for moderate to high static pressure applications. For extremely high-pressure requirements, other fan types may be more appropriate.
- Shape and Installation: The unique shape of these fans can make installation challenging in some settings, requiring additional adapters or creative mounting solutions.
- Heat Generation: In continuous, high-load applications, the motor and bearings may generate heat, necessitating proper ventilation or cooling.
Blower squirrel cage fans represent the gold standard for efficient, reliable, and versatile air movement in modern ventilation systems. Their unique centrifugal design allows them to generate powerful airflow while maintaining energy efficiency and quiet operation. Whether you are designing a new HVAC system, upgrading industrial ventilation, or seeking a compact cooling solution for electronics, blower squirrel cage fans deliver performance and value that is hard to match.
Their durability, adaptability, and ability to handle static pressure make them indispensable across industries and applications. With proper installation and maintenance, these fans will provide years of trouble-free service, ensuring optimal air quality, comfort, and efficiency in any environment.
Blower squirrel cage fans utilize a centrifugal impeller design that converts electrical energy into kinetic energy more efficiently than axial fans. This allows them to move large volumes of air with less power, especially when pushing air through ductwork or filters, resulting in lower operational costs and improved energy efficiency.
Yes, blower squirrel cage fans are widely used in residential HVAC systems due to their quiet operation, compact size, and ability to handle the static pressure of ductwork. They ensure even distribution of heated or cooled air, enhancing comfort and indoor air quality.
Maintenance frequency depends on the environment and usage. In general, fans in dusty or industrial settings should be inspected and cleaned every few months. For residential or office use, annual maintenance is often sufficient. Regular checks of bearings, motor, and electrical connections are recommended to ensure long-term reliability.
Many blower squirrel cage fans are constructed from heat-resistant materials and can operate in high-temperature environments, such as industrial ovens or process systems. However, it is essential to select a fan rated for the specific temperature range of your application to ensure safe and reliable operation.
While blower squirrel cage fans offer many benefits, they can be more challenging to install due to their shape, may require additional adapters for ductwork, and are generally best suited for moderate to high static pressure applications. For extremely high-pressure or specialized needs, other fan types may be more appropriate.
