Removing a CPU cooling fan is a vital skill for any PC enthusiast or technician. Whether you are upgrading your processor, cleaning your system, or replacing a faulty cooler, knowing the right steps ensures you avoid damaging delicate components and maintain optimal cooling performance. This comprehensive guide will walk you through every aspect of removing a CPU cooling fan, from preparation to post-removal cleaning, covering both AMD and Intel systems.
A CPU cooling fan, often paired with a heatsink, is responsible for dissipating the heat generated by your processor. Over time, dust accumulation, thermal paste degradation, or hardware upgrades may necessitate removing and replacing this component. Proper removal is essential to prevent accidental damage to the CPU, motherboard, or surrounding hardware.
Before you begin, preparation is key to a successful and safe removal process.
- Shut down your computer completely.
- Unplug the power cable and all peripherals.
- Press the power button for a few seconds to discharge any remaining electrical charge.
- Place your PC on a stable, flat surface with good lighting.
- Remove the side panel of your computer case to access the motherboard.
- Prevent electrostatic discharge by touching a grounded metal object or wearing an anti-static wrist strap.
- Avoid working on carpeted surfaces.
- Phillips or flathead screwdriver (depending on your cooler type)
- Isopropyl alcohol (at least 90%)
- Lint-free cloth or paper towels
- New thermal paste (for reinstallation)
- Small container for screws
CPU coolers generally fall into two categories:
- Stock coolers (provided by Intel or AMD)
- Aftermarket coolers (air or liquid, with various mounting mechanisms)
Familiarize yourself with your specific cooler's mounting system before proceeding. Consult your motherboard or cooler manual if unsure.
Thermal paste can act like glue, especially if it has dried out over time. To make removal easier:
- Power on your system for several minutes to warm up the CPU.
- This softens the thermal paste, reducing the risk of pulling the CPU out of its socket.
- Locate the CPU fan's power cable connected to the motherboard.
- Gently unplug the connector, pulling straight out without bending the pins.
- If your cooler has RGB lighting, disconnect the RGB cable from both the cooler and the motherboard.
- Gently pull the cam lever up to unlock the cooler from the retention frame.
- Release the retention clips from the motherboard socket mounting lugs.
- Use a screwdriver to turn each spring-screw counterclockwise in a diagonal pattern.
- Continue until all screws are free from the motherboard backplate.

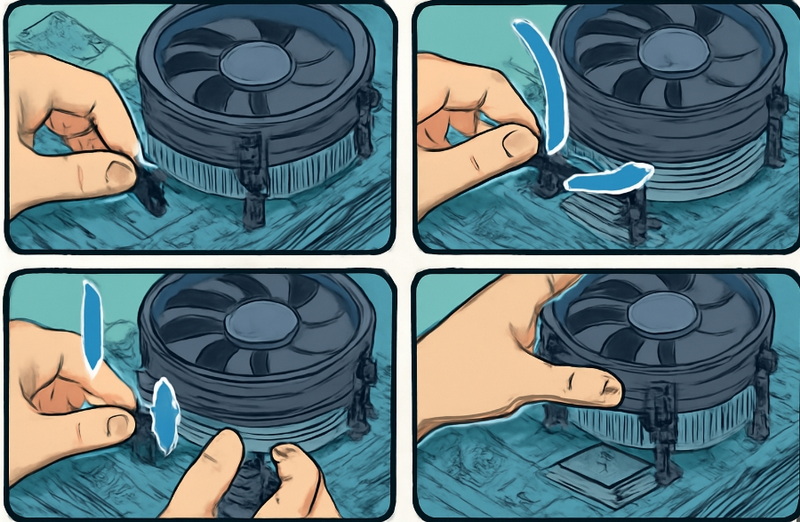

- Turn each of the four push pins counterclockwise using your fingers or a flathead screwdriver.
- Pull up the push pins to release the cooler from the motherboard.
- Some Intel coolers may use screws instead; unscrew them in a diagonal pattern for even pressure.
- Refer to the manufacturer's instructions.
- Most use either screws or a latch system; unscrew or unlatch as directed.
- Gently twist the cooler clockwise and counterclockwise to break the seal created by the thermal paste.
- Do not pull straight up without loosening, as this can pull the CPU out of the socket.
- Once the cooler is loose, lift it straight up and away from the CPU.
- Move slowly and evenly to avoid damaging the CPU or motherboard.
- Use isopropyl alcohol and a lint-free cloth to remove old thermal paste from both the CPU and the cooler base.
- Ensure both surfaces are completely clean and dry before reapplying new thermal paste or installing a new cooler.
- Check that the CPU remains seated in its socket.
- Examine for any bent pins (on AMD CPUs) or damage to the socket (on Intel motherboards).
- If you accidentally pull the CPU out with the cooler, carefully realign and reseat it, checking for any bent pins.
- Always work slowly and methodically.
- If you encounter resistance, double-check for missed screws or clips.
- Never use excessive force; patience is key to preventing hardware damage.
- Keep track of all screws and small parts in a container.
- For all-in-one liquid coolers, disconnect all cables and hoses carefully.
- Remove the radiator mounting screws before detaching the CPU block.
- Handle the radiator and hoses gently to avoid leaks or kinks.
If you are reinstalling the same cooler or installing a new one:
- Apply a small amount of new thermal paste to the center of the CPU.
- Align the cooler and secure it using the appropriate mounting mechanism.
- Reconnect all cables and ensure the fan is plugged into the CPU fan header.
- Replace the side panel and reconnect all power and peripherals before powering on the system.
Removing a CPU cooling fan may seem daunting, but with careful preparation and attention to detail, it can be a straightforward process. Always prioritize safety by powering down and grounding yourself, and handle all components gently. Whether you are upgrading, cleaning, or troubleshooting, following these steps will ensure your CPU and motherboard remain safe and functional. With practice, you will gain confidence in maintaining and upgrading your PC's cooling system.
If the cooler feels stuck, do not force it. Warm up your system to soften the thermal paste, then gently twist the cooler back and forth to break the seal. Avoid pulling straight up, as this can pull the CPU out of the socket.
No, you should always clean off the old thermal paste and apply a fresh layer before reinstalling or replacing the cooler. This ensures optimal heat transfer and prevents overheating.
Always twist the cooler gently to break the thermal paste seal and avoid pulling the CPU out of the socket. If the CPU comes out with the cooler, carefully check for bent pins and reseat it properly.
In most cases, you do not need to remove the motherboard. However, some large aftermarket coolers or certain mounting systems may require motherboard removal for access to backplates or screws.
- Power down and unplug your system.
- Ground yourself to prevent static discharge.
- Work on a clean, stable surface.
- Handle all parts with care and avoid excessive force.
