Building or upgrading a PC is an exciting journey, and one of the most crucial steps is ensuring your processor remains cool and operates efficiently. The Intel CPU cooling fan, often referred to as the stock cooler, is designed to keep your CPU within safe temperature limits, ensuring optimal performance and longevity. Whether you are a seasoned builder or a first-time enthusiast, installing the Intel CPU cooling fan correctly is essential for the stability and health of your system.
This comprehensive guide will walk you through every step of installing an Intel CPU cooling fan, covering preparation, installation, troubleshooting, and best practices. By the end, you will have the confidence and knowledge to complete this vital PC building task.
The Intel CPU cooling fan, or stock cooler, is a heatsink and fan assembly provided with many Intel processors. Its primary purpose is to dissipate the heat generated by the CPU during operation. The stock cooler is engineered for compatibility, ease of installation, and reliable cooling for non-overclocked systems.
- Pre-applied thermal paste for efficient heat transfer
- Push-pin mounting mechanism for tool-free installation
- Compact design to fit most standard PC cases
While aftermarket coolers are available for enthusiasts seeking superior cooling or quieter operation, the Intel stock cooler is sufficient for most users running their CPUs at default settings.
Proper preparation is essential for a smooth installation process and to avoid damaging sensitive components.
- Intel CPU and compatible motherboard
- Intel stock cooler (with pre-applied thermal paste)
- Anti-static wrist strap or mat (recommended)
- Clean, static-free workspace
- Always work in an environment free of static electricity. Use an anti-static wrist strap or mat to ground yourself.
- Handle the CPU and cooler by the edges, avoiding contact with the pins or thermal paste.
- Ensure the motherboard is not powered and is placed on a non-conductive surface.

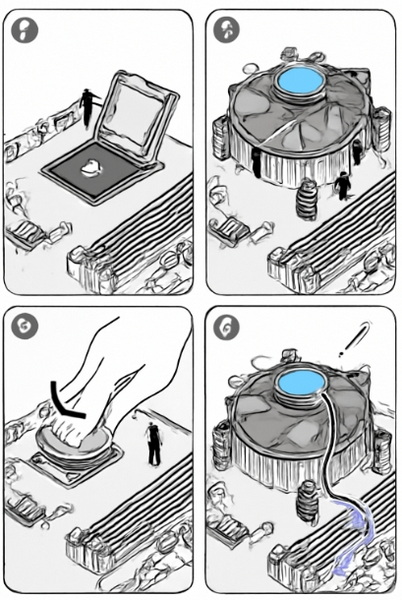

Place the motherboard on a flat, static-free surface. Locate the CPU socket, which is typically near the center of the board. If you are installing the CPU for the first time, release the socket retention arm and open the socket cover.
- Identify the alignment markers: Find the small golden triangle on one corner of the CPU and match it with the corresponding triangle or notch on the socket.
- Gently place the CPU into the socket, ensuring it sits flat without force.
- Lower the socket cover and secure it with the retention arm.
- Most Intel stock coolers come with thermal paste pre-applied to the base. If you are reusing a cooler or installing an aftermarket one, clean off the old paste and apply a new, pea-sized amount to the center of the CPU.
- Position the cooler so that all four push-pins align with the holes surrounding the CPU socket on the motherboard.
- Ensure the fan cable can reach the CPU fan header on the motherboard.
- Rotate each push-pin so the arrow points away from the center of the cooler (installation position).
- Place the cooler onto the CPU, aligning all four pins with the holes.
- Press down firmly on two diagonal push-pins at the same time until you hear a click, then repeat for the other two. This ensures even pressure and a secure fit.
- Double-check that each push-pin is fully engaged by inspecting the underside of the motherboard if possible.
- Locate the CPU fan header on the motherboard, usually labeled “CPU_FAN.”
- Plug the fan's power cable into this header, ensuring a snug connection.
After installing the cooler, it's important to verify the installation before proceeding with the rest of your build.
- The cooler should sit flat against the CPU with no visible gaps.
- All four push-pins should be securely fastened and visible on the underside of the motherboard.
- The fan cable should be connected to the CPU fan header.
- The fan should spin freely without obstruction.
Once confirmed, you can proceed to install the motherboard into the case and complete your PC assembly.
Even with careful installation, issues can arise. Here are some common problems and solutions:
- Cooler feels loose: Ensure all push-pins are fully engaged. If necessary, remove and reinstall the cooler.
- High CPU temperatures: Check that the cooler is making proper contact with the CPU and that thermal paste is applied correctly.
- Fan not spinning: Verify the fan cable is properly connected to the CPU fan header and not another header.
- Unusual noise: Ensure no cables are obstructing the fan blades and that the cooler is not touching other components.
- Regular Maintenance: Periodically clean dust from the cooler and fan to maintain airflow.
- Monitor Temperatures: Use motherboard software or third-party tools to monitor CPU temperatures, especially after installation.
- Upgrade When Necessary: For overclocking or high-performance builds, consider aftermarket coolers for better thermal performance.
Installing an Intel CPU cooling fan is a straightforward but essential task in PC building. By following the steps outlined in this guide, you can ensure your processor remains cool and your system operates reliably. Remember to take your time, double-check each step, and maintain your cooler for optimal performance. Whether you are assembling a new PC or upgrading an existing one, proper cooler installation is key to a stable and efficient computing experience.
If the pre-applied thermal paste is disturbed or removed, clean both the CPU and cooler base with isopropyl alcohol and a lint-free cloth. Apply a small, pea-sized amount of new thermal paste to the center of the CPU before reinstalling the cooler.
Yes, you can reuse the stock cooler if it is compatible with your new CPU socket. However, always clean off the old thermal paste and apply a fresh layer before reinstalling.
Push-pins should be fully engaged with an audible click. Do not use excessive force; if installed correctly, the cooler will sit flush against the CPU, and the pins will be visible on the underside of the motherboard.
If the fan cable is not connected, the CPU will overheat quickly, leading to system instability or shutdown. Always ensure the fan is plugged into the CPU fan header before powering on your system.
The Intel stock cooler is adequate for most non-overclocked CPUs and general use. For gaming, heavy workloads, or overclocking, aftermarket coolers provide better thermal performance and quieter operation.
