Increasing the speed of a DC fan can be crucial for improving cooling efficiency in various applications, such as electronic devices, computers, and industrial machinery. There are several methods to achieve this, including voltage regulation, pulse width modulation (PWM), and thermal speed control. Each method has its advantages and limitations, which will be discussed in detail below.
DC fans are widely used due to their efficiency, reliability, and low noise operation. They are powered by direct current and can be controlled using different techniques to adjust their speed according to the cooling requirements.
- 3-Pin Fans: These fans are typically controlled by adjusting the supply voltage. They are simpler and less expensive but offer limited speed control.

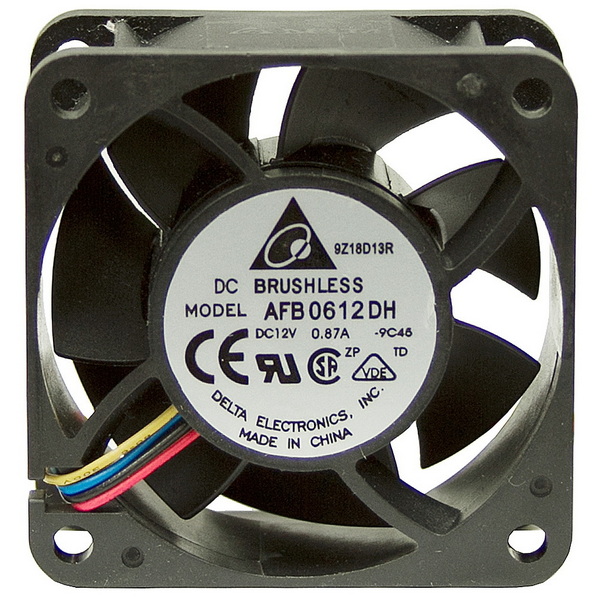

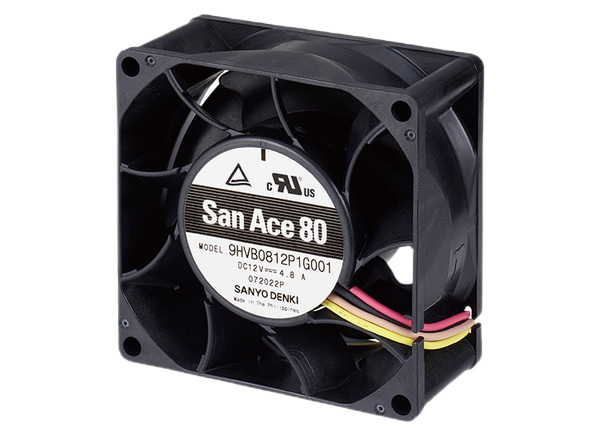

- 4-Pin Fans: These fans use PWM (Pulse Width Modulation) for speed control, offering more precise control over fan speed and are commonly used in computer systems.
Voltage regulation involves adjusting the input voltage to the fan to control its speed. Lower voltage results in lower speed, while higher voltage increases the speed. However, there are limitations to this method, as reducing voltage too much can cause the fan to stall. For instance, a 12V fan might require at least 7V to start spinning and may run at half speed at this voltage.
Voltage Regulation Circuit
A simple voltage regulation circuit can be built using a variable resistor or a voltage regulator like a LM7805. However, this method is less efficient and can generate heat.
PWM is a more efficient and precise method for controlling fan speed. It involves rapidly switching the power supply to the fan on and off at a high frequency, typically above 1 kHz. The fan speed is controlled by adjusting the duty cycle of the PWM signal, which determines how long the power is on versus off during each cycle.
PWM Circuit Example
A basic PWM circuit can be implemented using a microcontroller or a dedicated IC like the 555 timer. The output is connected to a MOSFET that controls the power to the fan.
PWM Circuit Components:
- Microcontroller or 555 Timer
- MOSFET (e.g., N-Channel)
- Fan (4-pin for PWM control)
- Resistors and Capacitors for filtering

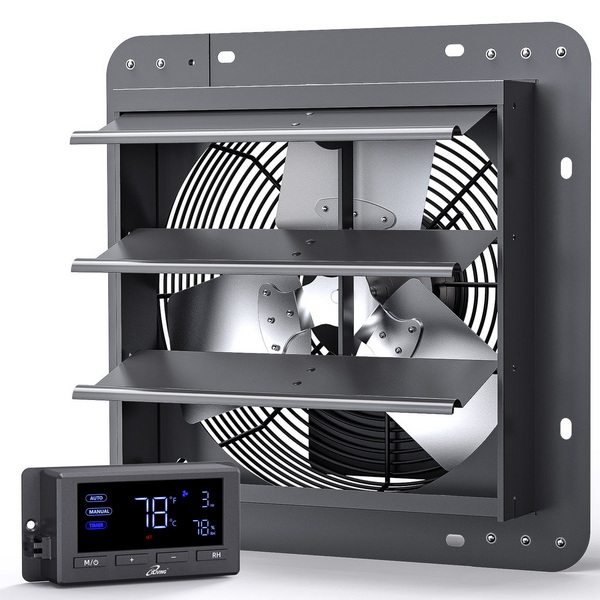

Thermal speed control uses a thermistor to monitor temperature changes and adjust the fan speed accordingly. This method is useful for maintaining optimal cooling without external input signals.
Thermal Control Circuit
The thermistor acts as a variable resistor in a voltage divider circuit, adjusting the voltage applied to the fan based on temperature changes.
In computer systems, fan speed can be customized using software to create a fan curve. This curve maps temperature readings to specific fan speeds, allowing for efficient cooling while minimizing noise.
A typical fan curve might start with low fan speeds at lower temperatures and gradually increase as the temperature rises. For example, a fan might run at 20% speed at 30°C and increase to 80% at 60°C.
| Control Method | Advantages | Disadvantages |
|---|---|---|
| Voltage Regulation | Quiet Operation, Simple Circuit | Limited Speed Control Range, Inefficient |
| PWM Control | Precise Speed Control, Efficient | Requires 4-Pin Fans, Can Generate Noise if Not Properly Filtered |
| Thermal Control | Automatic Adjustment Based on Temperature | Limited Flexibility, Req |
When controlling fan speed, it's crucial to ensure that the fan is compatible with the control method. For example, using PWM on a 3-pin fan can damage its internal circuitry. Always use a 4-pin fan for PWM control to avoid such issues.
- Computer Cooling: In computer systems, PWM fans are used to maintain optimal temperatures while minimizing noise. Software tools like SpeedFan or HWiNFO allow users to customize fan curves based on system temperatures.
- Industrial Machinery: Thermal speed control is often used in industrial settings where machinery generates significant heat. This method ensures that cooling systems operate efficiently without manual intervention.
- Electronic Devices: Voltage regulation is commonly used in small electronic devices where simplicity and cost-effectiveness are important.
For those interested in building a custom fan controller, here are some steps to consider:
1. Choose the Control Method: Decide whether you want to use voltage regulation, PWM, or thermal control based on your requirements.
2. Select Components: Choose appropriate components such as microcontrollers, MOSFETs, and thermistors.
3. Design the Circuit: Use a breadboard or PCB to assemble the circuit. Ensure proper filtering to minimize noise.
4. Test and Refine: Test the circuit with different fan speeds and refine the design as needed.
- Fan Not Spinning: Check if the voltage is sufficient for the fan to start. Ensure that the PWM signal is correctly configured if using PWM.
- Noise Issues: Use capacitors to filter the PWM signal and reduce noise.
- Overheating: Adjust the fan curve to increase fan speed at higher temperatures.
Microcontrollers like Arduino or Raspberry Pi can be used to implement complex fan control algorithms. They can read temperature sensors and adjust fan speeds dynamically based on the environment.
Feedback loops can be implemented using sensors to monitor fan performance and adjust control signals accordingly. This ensures that the fan operates within optimal parameters.
When designing a fan control system, consider the energy efficiency of the method used. PWM control is generally more efficient than voltage regulation because it minimizes power loss during switching.
Increasing the speed of a DC fan can be achieved through various methods, each with its own advantages and limitations. PWM control offers precise speed adjustment and efficiency, making it a preferred choice for many applications. However, it requires a 4-pin fan and proper filtering to minimize noise. Voltage regulation is simpler but less efficient and offers limited speed control. Thermal control provides automatic adjustment based on temperature but lacks flexibility. By choosing the right method and implementing it correctly, you can optimize fan performance for your specific needs.
The most efficient method for controlling DC fan speed is using high-frequency PWM (Pulse Width Modulation). It allows for precise speed control and is energy-efficient because the fan is either fully on or fully off during each cycle.
It is not recommended to use PWM on a 3-pin fan as it can damage the fan's internal circuitry. PWM control is best suited for 4-pin fans, which are designed to handle PWM signals without affecting the fan's control IC.
Thermal speed control uses a thermistor to monitor temperature changes. The thermistor acts as a variable resistor in a voltage divider circuit, adjusting the voltage applied to the fan based on temperature, thus controlling its speed.
Voltage regulation has a limited speed control range because reducing the voltage too much can cause the fan to stall. For example, a 12V fan may require at least 7V to start spinning and will run at half speed at this voltage.
Fan speed curves can be customized using software that maps temperature readings to specific fan speeds. This is typically done through the motherboard's BIOS or UEFI settings, allowing for efficient cooling while minimizing noise.
