Connecting a DC fan to an AC power source involves a few steps and requires the right equipment to ensure safe and efficient operation. In this article, we will guide you through the process, highlighting the necessary components and precautions.

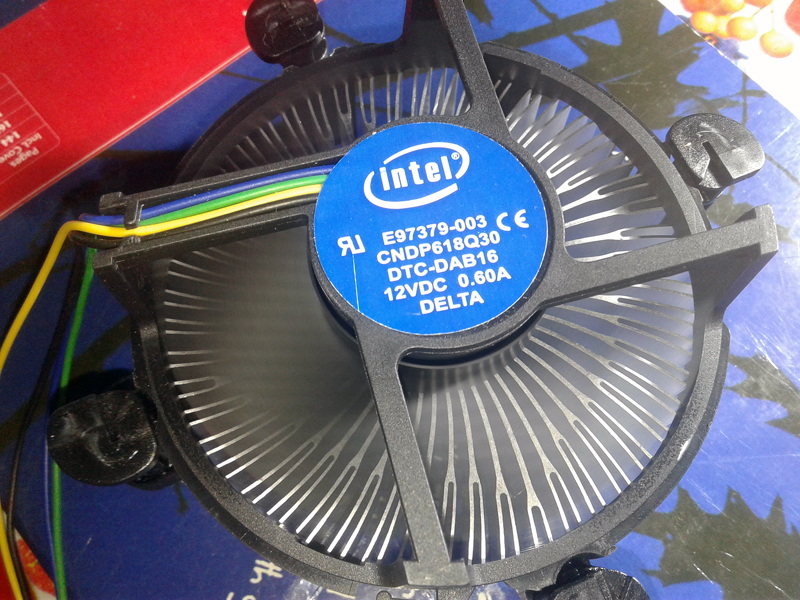

DC fans are designed to operate on direct current (DC), typically requiring a specific voltage, such as 12V, to function. AC power, on the other hand, is alternating current, which is commonly used in household outlets. To connect a DC fan to an AC power source, you need a device that can convert AC to DC.
- AC (Alternating Current): This is the type of electricity used in homes and businesses. It periodically reverses direction, which is efficient for long-distance transmission.
- DC (Direct Current): This type of electricity flows in one direction only and is commonly used in electronic devices like smartphones and computers.
To connect a DC fan to an AC power source, you will need:
1. DC Power Supply (Adapter): This is a device that converts AC power from the wall outlet to DC power suitable for your fan. It should match the fan's voltage requirement (e.g., 12V) and provide enough current (amperage) to power the fan.
2. Wiring: You will need to connect the power supply to the fan using wires. Ensure the wires are properly insulated and can handle the current.
Select a DC power supply that matches your fan's voltage (e.g., 12V) and can provide sufficient current. For example, if your fan requires 0.5A, choose a power supply that can deliver at least that amount.
1. Identify the Positive and Negative Terminals: On your fan, identify the positive (+) and negative (-) terminals. These are usually marked or color-coded (red for positive, black for negative).
2. Connect the Wires: Connect the positive wire from the power supply to the positive terminal of the fan, and the negative wire to the negative terminal. Use alligator clips or solder the connections for reliability.
If using a wall adapter, ensure it is rated for the correct voltage and amperage. For instance, a 12V 5A adapter would be suitable for most small DC fans.
Once connected, plug the power supply into the AC outlet and turn it on. The fan should start spinning. If it doesn't, check your connections and ensure the power supply is working correctly.
- Use Proper Insulation: Ensure all wires are properly insulated to prevent short circuits.
- Match Voltage and Current: Always match the fan's voltage and current requirements with the power supply.
- Avoid Overloading: Do not overload the power supply with too many fans or devices.
- Check Connections: Ensure all connections are secure and not loose.
- Check Power Supply: Verify that the power supply is working and delivering the correct voltage.
- Check Voltage: Ensure the power supply is delivering the correct voltage. A lower voltage can cause the fan to spin slowly.
- Check Current: Ensure the power supply can deliver enough current for the fan.
You can add features to your DC fan circuit, such as speed control or an on/off switch.

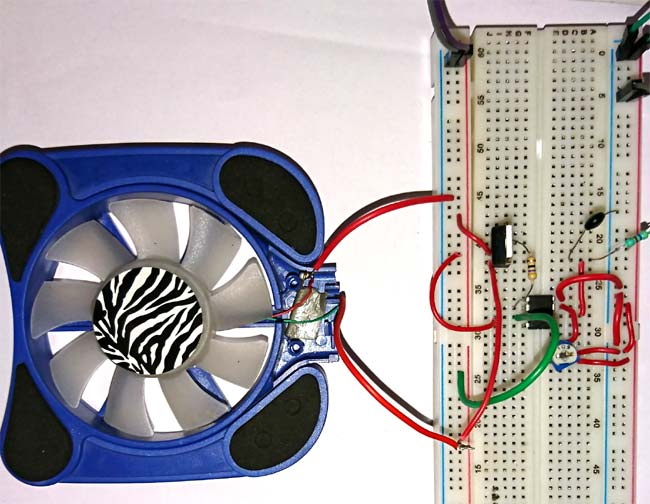

1. Choose a Potentiometer: Select a variable resistor (potentiometer) that can handle the fan's current.
2. Connect the Potentiometer: Place the potentiometer in series with the fan. This will allow you to adjust the voltage supplied to the fan, thereby controlling its speed.
+---------------+
| Power Supply |
+---------------+
|
|
v
+---------------+
| Potentiometer |
+---------------+
|
|
v
+---------------+
| DC Fan |
+---------------+
1. Choose a Switch: Select a single-pole single-throw (SPST) switch.
2. Connect the Switch: Place the switch in series with the fan. This will allow you to turn the fan on or off.
For more precise speed control, you can use a PWM controller. This device sends pulses of varying width to control the fan's speed.
- Pulse Width: The duration of the pulse determines the average voltage delivered to the fan.
- Frequency: The number of pulses per second should be high enough to avoid audible noise.
You can automate your fan's operation by adding a temperature sensor. This can turn the fan on when the temperature exceeds a certain threshold.
+---------------+
| Power Supply |
+---------------+
|
|
v
+---------------+
| Temperature Sensor |
+---------------+
|
|
v
+---------------+
| Microcontroller |
+---------------+
|
|
v
+---------------+
| DC Fan |
+---------------+
- Check for Loose Connections: Ensure all connections are secure.
- Check for Dust: Clean the fan blades and housing to reduce noise.
- Check the Switch: Ensure the switch is functioning correctly.
- Check the Power Supply: Verify that the power supply is turning off when switched off.
DC fans are widely used in various applications, including:
- Computers: To cool CPUs and GPUs.
- Electronics: In devices like routers and modems.
- Home Appliances: In air conditioners and refrigerators.
Using DC fans can be more energy-efficient than traditional AC fans, especially when combined with advanced control systems like PWM.
Connecting a DC fan to an AC power source is straightforward when you have the right components and follow the correct steps. Always ensure that your power supply matches the fan's voltage and current requirements, and take necessary safety precautions to avoid electrical hazards.
The DC power supply is necessary to convert AC power from the wall outlet into DC power that the fan can use. Without it, the fan would not operate.
Choose a power supply that matches the fan's voltage requirement (e.g., 12V) and can deliver enough current (amperage) for the fan. Ensure it is certified and safe for use.
Yes, you can use multiple fans with the same power supply as long as the total current drawn by all fans does not exceed the power supply's capacity. Connect the fans in parallel.
Always ensure proper insulation of wires, match the fan's voltage and current requirements with the power supply, and avoid overloading the power supply.
You can control the speed of your DC fan by adding a potentiometer or a PWM controller to the circuit. This allows you to adjust the voltage supplied to the fan, thereby controlling its speed.
