Connecting a computer fan to a battery is a valuable skill for electronics enthusiasts, DIY hobbyists, and anyone looking for portable cooling solutions. This process is straightforward and opens up opportunities for creative projects, from building personal cooling devices to ventilating small enclosures or experimenting with basic electrical circuits. This comprehensive guide will walk you through the essentials, from understanding fan types and power requirements to step-by-step instructions, safety considerations, troubleshooting, and creative applications.
A computer fan is a small, electrically powered device designed to move air and cool electronic components. Fans are essential in computers and other electronics to prevent overheating, which can damage sensitive parts and reduce performance. These fans typically use direct current (DC) motors and are engineered for efficiency and reliability.
Computer fans operate by drawing cooler air into a device and expelling warm air. By maintaining airflow, they help regulate temperature and ensure the longevity of electronic components. Most computer fans are designed to run on low DC voltages, making them ideal for battery-powered projects.
Computer fans come in various sizes, each suited for different applications. Common sizes include:
- Small fans for laptops and compact electronics
- Medium fans (such as 80mm or 92mm) for desktop cases
- Large fans (such as 120mm or more) for high-performance cooling
The size of the fan often determines its airflow capacity and power consumption.
- 5V Fans: Commonly used in USB-powered devices and small electronics.
- 12V Fans: Standard for desktop computers and larger cooling needs.
- 24V Fans: Used in industrial or specialized equipment.
The current draw of a fan depends on its size, speed, and design. Always check your fan's label or datasheet for voltage and current requirements before connecting it to a battery.
The battery's voltage should match the fan's rated voltage. Using a battery with lower voltage may result in weak performance or failure to start, while a higher voltage can damage the fan or cause it to run too fast, leading to excessive wear.
- AA/AAA Batteries: Versatile and widely available. Multiple batteries can be connected in series to achieve the required voltage.
- 9V Batteries: Compact and convenient, but may not provide enough current for larger fans.
- Rechargeable Batteries: Such as lithium-ion or nickel-metal hydride, offer longer life and are more environmentally friendly.
- Battery Packs: Pre-assembled packs are convenient for higher voltage or current needs.
Battery capacity, measured in milliamp-hours (mAh), determines how long your fan will run. Larger fans or higher speeds will drain batteries faster, so select a battery with sufficient capacity for your intended use.

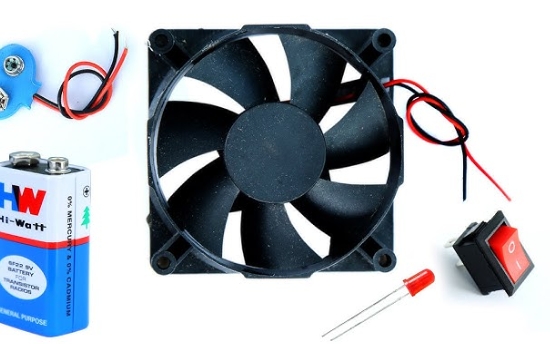

Before starting, gather the following items:
- Computer fan (with known voltage and current requirements)
- Appropriate battery or battery pack
- Battery holder or snap connector (optional)
- Electrical tape or heat shrink tubing
- Wire strippers and cutters
- Soldering iron and solder (optional for permanent connections)
- Multimeter (for testing voltage and polarity)

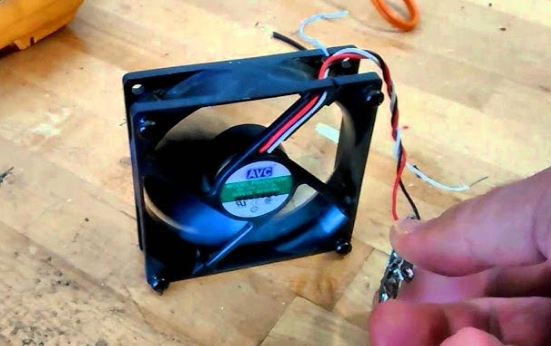

Most computer fans have two or three wires:
- Red: Positive (+)
- Black: Negative (–)
- Yellow or Blue: Signal or speed control (not needed for basic operation)
If using multiple batteries, connect them in series to achieve the required voltage. For example, two AA batteries in series provide approximately 3V, while eight provide about 12V. Use a battery holder for convenience and safety.

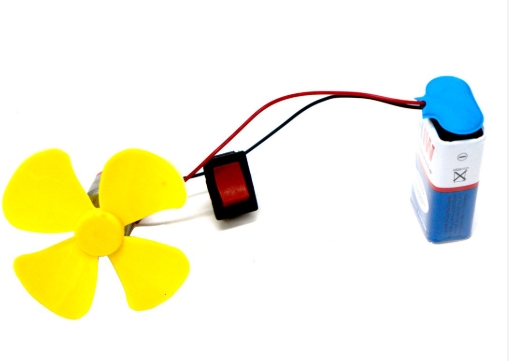

- Attach the red wire from the fan to the positive terminal of the battery.
- Attach the black wire from the fan to the negative terminal of the battery.
- Secure the connections with electrical tape or use a soldering iron for a more permanent solution.
Once connected, the fan should start spinning. If it does not, double-check the wiring and ensure the battery is charged and properly connected.
After confirming the fan works, insulate all exposed wires with electrical tape or heat shrink tubing to prevent short circuits. Secure the fan and battery in your project enclosure as needed.
- Always match the battery voltage to the fan's rated voltage.
- Avoid short circuits by insulating all connections.
- Do not mix old and new batteries or different battery types.
- Monitor the fan for excessive heat or unusual noise.
- Disconnect the battery when not in use to prevent drainage.
- Check battery voltage and charge.
- Verify correct wiring and polarity.
- Ensure the fan is not obstructed.
- Battery voltage may be too low.
- Battery may not supply enough current.
- Fan may be dirty or worn out.
- Voltage may be too high.
- Fan may be defective.
Mount a fan and battery pack inside a small box for a personal cooling system, ideal for outdoor use or during power outages.
Use a battery-powered fan to ventilate small electronics enclosures, preventing overheating in DIY projects.
Combine a solar panel with a rechargeable battery and fan for an eco-friendly cooling solution.
Use computer fans in classroom demonstrations to teach about electricity, circuits, and airflow.
Connecting a computer fan to a battery is a simple yet powerful way to create portable cooling solutions, experiment with electronics, and solve practical problems. By understanding the basics of fan operation, voltage matching, and safe wiring practices, you can successfully power a fan from a battery in a variety of creative ways. Always prioritize safety, double-check your connections, and enjoy the satisfaction of bringing your DIY project to life.
Using a battery with a higher voltage can cause the fan to spin faster than intended, which may lead to excessive noise, heat, and potential damage to the fan's motor over time. It is always best to match the battery voltage to the fan's rated voltage for safe and reliable operation.
Yes, rechargeable batteries such as lithium-ion or nickel-metal hydride are suitable for powering computer fans. They offer longer lifespan and are more environmentally friendly. Ensure the total voltage of the rechargeable batteries matches the fan's requirements.
It is not recommended to leave any battery-powered device running unattended for extended periods. Batteries can overheat, leak, or become depleted, which may pose safety risks. Always monitor your project and disconnect the battery when not in use.
To control the speed, you can use a variable resistor (potentiometer) in series with the fan or employ a simple fan controller circuit. Some fans also have a built-in speed control wire that can be used with appropriate electronics.
This could be due to a depleted battery, insufficient current supply, or a wiring issue. Check the battery's charge, ensure all connections are secure, and verify that the fan is not obstructed or damaged.
