DC fans, or direct current fans, have become increasingly popular due to their efficiency, quiet operation, and versatility. Unlike traditional AC fans, DC fans use direct current to convert electrical energy into kinetic energy, making them ideal for various applications, from cooling electronic devices to providing ventilation in homes. This article will delve into the working principle of DC fans, their components, and their advantages over AC fans. We will also explore how to choose the right DC fan for your needs and address common questions about their operation.
A DC fan consists of several key components:
- Rotor: This includes the motor shell, permanent magnetic strip, shaft core, and fan blades.
- Stator: Comprises enameled wire, plastic-coated silicon steel sheet, bearings, Hall sensors for detection, and a drive circuit board.
- Motor: Includes a permanent magnet rotor and a multi-stage winding stator.
- Outer Frame: Provides structural support and protection for the fan.
The working principle of a DC fan involves converting electrical energy into electromagnetic energy through DC voltage and electromagnetic induction. This electromagnetic energy is then converted into mechanical energy, which finally becomes kinetic energy, causing the fan blades to rotate.
1. Electromagnetic Induction: When electric current passes through a conductor, it generates a magnetic field around it. If this conductor is placed in another fixed magnetic field, it will experience attraction or repulsion, causing movement.
2. Hall Sensors and Coil Operation: Inside a DC fan, two sets of coils are wound around the shaft core. Hall sensors act as synchronous detection devices to control these coils, ensuring they work in turn. This creates different magnetic poles on the silicon steel sheet, which interact with a rubber magnet attached to the fan blades, producing repulsive forces that drive rotation.
DC fans offer several advantages over traditional AC fans:
- Energy Efficiency: DC fans are more energy-efficient, typically drawing less power than AC fans. For example, a DC fan might use up to 35 watts on high speed, compared to an AC fan's 90 watts.
- Noise Level: DC fans are generally quieter due to the absence of motor hum, which is common in AC fans.
- Speed Control: DC fans often come with remote controls that allow for more precise speed adjustments, typically offering 5 or 6 speeds compared to the 3 speeds of AC fans.
- Cost: While DC fans are generally more expensive upfront, their long-term energy savings can offset this cost.
- Durability: DC fans tend to have a longer lifespan due to fewer moving parts and less vibration.
When selecting a DC fan, consider the following factors:
- Power Consumption: Look for fans with low power consumption to save energy.
- Noise Level: If quiet operation is crucial, ensure the fan is designed to minimize motor noise.
- Speed Control: Choose a fan with a remote control for better speed adjustment options.
- Price: Balance cost with long-term energy efficiency benefits.
- Application: Consider whether you need the fan for personal use, industrial cooling, or as part of a larger ventilation system.
DC fans are versatile and can be used in a variety of settings:
- Personal Use: Ideal for home ventilation and personal cooling.
- Industrial Cooling: Often used in data centers and server rooms to cool electronic equipment.
- Automotive: Used in vehicles for cooling systems and ventilation.
- Medical Devices: Employed in medical equipment to provide quiet and efficient cooling.
Installing a DC fan is relatively straightforward, similar to installing an AC fan. However, it's important to follow the manufacturer's instructions for proper setup and maintenance. Regular cleaning of the fan blades and checking the circuit board can help extend the fan's lifespan.
- Regular Cleaning: Use a soft brush or cloth to clean dust from the fan blades and motor.
- Check for Wear: Inspect the fan for any signs of wear or damage, such as loose screws or worn-out bearings.
- Avoid Overloading: Ensure the fan is not overloaded beyond its recommended capacity.
DC fans are a superior choice for many applications due to their efficiency, quiet operation, and advanced speed control features. Understanding how they work and their advantages over AC fans can help you make informed decisions when selecting a fan for your needs.
- The primary difference lies in their power source and efficiency. DC fans use direct current and are generally more efficient and quieter than AC fans, which use alternating current.
- No, DC fans require specialized electronic controls, typically provided via a remote control, as they cannot be controlled by traditional AC fan switches.
- Regularly clean the fan blades and check the circuit board for any issues. Ensure proper installation and follow the manufacturer's maintenance guidelines.
- Yes, DC fans are generally more expensive upfront. However, they offer long-term energy savings that can offset this initial cost.

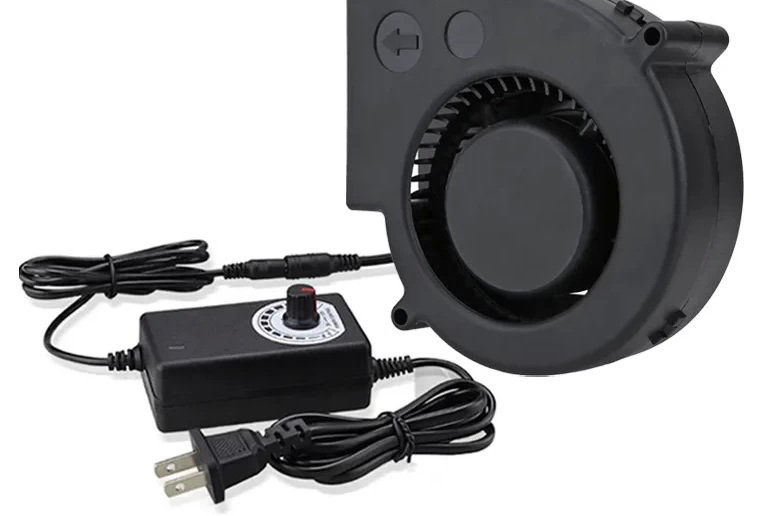

- Yes, most DC fans can be installed using the same wiring as AC fans, but they require a DC power adapter or converter to function properly.
