Choosing the right Ziehl-Abegg EC fan for your system involves several key considerations, including the type of application, required airflow, pressure, and energy efficiency. Ziehl-Abegg is renowned for its innovative EC (Electronically Commutated) fan technology, which offers high efficiency, reliability, and flexibility. Here's a comprehensive guide to help you select the perfect EC fan for your needs.

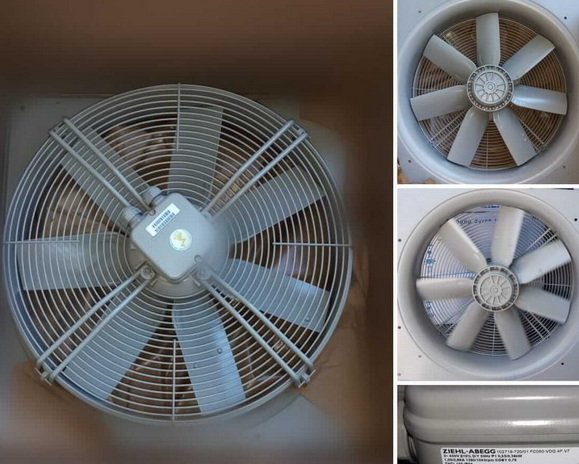

Ziehl-Abegg's EC fans are designed with state-of-the-art motor technology, combining the benefits of AC and DC motors to achieve higher energy savings and reduced noise levels. These fans are ideal for various applications, including HVAC systems, industrial ventilation, and data centers.
- Energy Efficiency: EC fans provide substantial energy savings compared to traditional AC fans due to their electronically commutated motor design.
- Versatility: Suitable for a variety of applications, including air conditioning, cooling systems, and ventilation.
- Low Noise Levels: Engineered to operate quietly, making them ideal for environments where noise reduction is a priority.
- Smart Controls: Many models come equipped with integrated control options, allowing for optimized performance and easy integration into existing systems.
Before selecting an EC fan, it's crucial to understand the specific requirements of your application. This includes:
- Airflow: The volume of air needed to be moved.
- Pressure: The static pressure the fan must overcome.
- Temperature Range: The operating temperature range of the fan.
- Noise Level: The acceptable noise level for the environment.
Ziehl-Abegg offers FANselect, a software tool that simplifies the selection process by allowing you to input your specific requirements and receive a list of suitable fans. This tool is certified by TÜV, ensuring accuracy and reliability in fan selection.
Ziehl-Abegg offers a range of fan types, including:

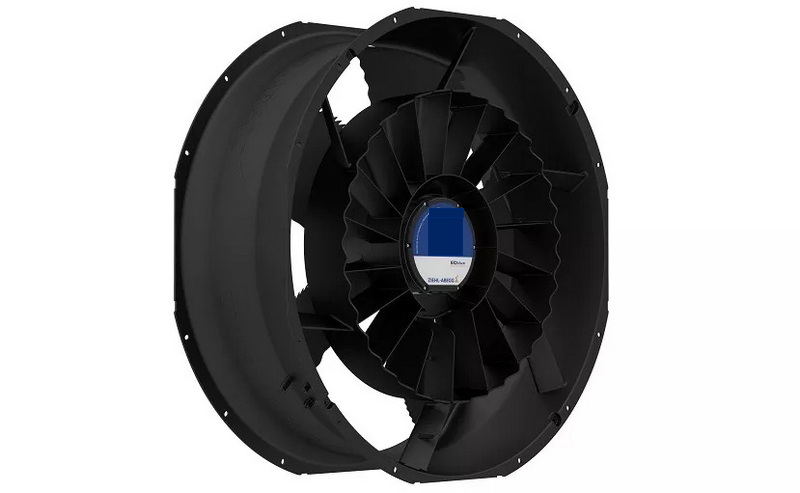

- Axial Fans: Suitable for high airflow applications with lower pressure requirements.
- Centrifugal Fans: Ideal for applications requiring higher static pressure.
Ziehl-Abegg's EC fans utilize advanced motor technologies such as PMblue (permanent magnet excited motor) and AMblue (asynchronous motor). These technologies ensure high efficiency and reliability.
Ensure the fan is compatible with your system's voltage and control systems. Many EC fans come with integrated electronic controls for optimal operation and energy management.
Regular maintenance is crucial to ensure optimal performance and longevity of your EC fan. This includes:
- Cleaning: Regularly clean the fan blades and housing to prevent dust buildup.
- Inspection: Periodically inspect the fan for any signs of wear or damage.
- Replacement: Replace worn-out parts promptly to maintain efficiency.
One of the most significant advantages of Ziehl-Abegg EC fans is their ability to reduce energy consumption. By using advanced motor technologies, these fans can achieve energy savings of up to 50% compared to traditional fans. This not only reduces operational costs but also contributes to a more sustainable environment.
A recent study in a large commercial building showed that replacing traditional AC fans with Ziehl-Abegg EC fans resulted in a 30% reduction in energy costs over a year. This demonstrates the potential for significant cost savings and environmental benefits.
Ziehl-Abegg EC fans are designed to integrate seamlessly with smart building systems. They can be controlled remotely and monitored in real-time, allowing for optimized performance and energy efficiency. This integration capability makes them ideal for modern buildings and industrial facilities.
The use of Ziehl-Abegg EC fans also has a positive environmental impact. By reducing energy consumption, these fans help lower carbon emissions, contributing to a cleaner and healthier environment. This aligns with global efforts to reduce greenhouse gas emissions and promote sustainable practices.
Choosing the right Ziehl-Abegg EC fan involves understanding your application's specific needs, utilizing selection tools like FANselect, and considering factors such as fan type, motor technology, and control options. With their high efficiency, reliability, and versatility, Ziehl-Abegg EC fans are an excellent choice for a wide range of applications.
The primary advantage of using Ziehl-Abegg EC fans is their high energy efficiency, which results in significant energy savings compared to traditional AC fans.
To determine the right fan size, use Ziehl-Abegg's FANselect software, which allows you to input your specific requirements and receive a list of suitable fans.
Ziehl-Abegg EC fans utilize advanced motor technologies such as PMblue (permanent magnet excited motor) and AMblue (asynchronous motor).
Yes, Ziehl-Abegg EC fans can operate in a wide temperature range, typically from -20°C to 80°C, depending on the model.
For troubleshooting, refer to Ziehl-Abegg's customer service resources, including videos and FAQs available on their website.
