DC fans are widely used in various applications, including electronics cooling, ventilation systems, and personal cooling devices. Understanding how DC fans work is essential for both users and engineers who design and optimize these devices. In this article, we will delve into the working principle of DC fans, their components, and how they are controlled.

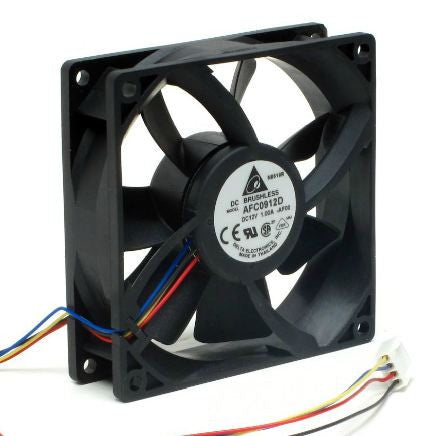

A DC fan is a type of cooling fan that operates using direct current (DC) power. Unlike AC fans, which use alternating current, DC fans convert electrical energy into kinetic energy through electromagnetic induction. This process involves converting DC voltage into electromagnetic energy, which is then transformed into mechanical energy to rotate the fan blades.
A typical DC fan consists of several key components:
- Rotor: This includes the motor shell, permanent magnetic strip, shaft core, and fan blades.
- Stator: Comprises enameled wire, plastic-coated silicon steel sheet, bearing, Hall sensor detection, drive circuit board, and shaft.
- Motor: Includes a permanent magnet rotor, multi-stage winding stator, position sensor, and electronic commutation drive control circuit.
- Outer Frame: Provides structural support and protection for the fan.
The rotor is the moving part of the DC fan, consisting of a motor shell, permanent magnetic strip, shaft core, and fan blades. The permanent magnetic strip is crucial for generating magnetic fields when interacting with the stator.
The stator is the stationary part of the fan, made up of enameled wire, plastic-coated silicon steel sheet, bearing, Hall sensor detection, drive circuit board, and shaft. The Hall sensor plays a vital role in detecting the position of the rotor and controlling the switching of the coils.
The working principle of a DC fan involves the conversion of electrical energy into kinetic energy through electromagnetic induction. Here's a step-by-step explanation:
1. Electromagnetic Induction: When DC voltage is applied to the stator coils, a magnetic field is generated around them.
2. Magnetic Interaction: The magnetic field interacts with the permanent magnet in the rotor, causing attraction or repulsion forces.
3. Rotation: The Hall sensor detects the rotor's position and controls the switching of the coils, ensuring continuous rotation by maintaining the repulsive force greater than the static friction.
4. Kinetic Energy: The rotation of the fan blades converts mechanical energy into kinetic energy, which is used to circulate air.
DC Fan Components and Working Principle:
graph LR
A[DC Power Supply] --> B[Stator Coils]
B --> C[Magnetic Field]
C --> D[Rotor Permanent Magnet]
D --> E[Attraction/Repulsion]
E --> F[Hall Sensor]
F --> G[Coil Switching]
G --> H[Fan Blade Rotation]
H --> I[Air Circulation]

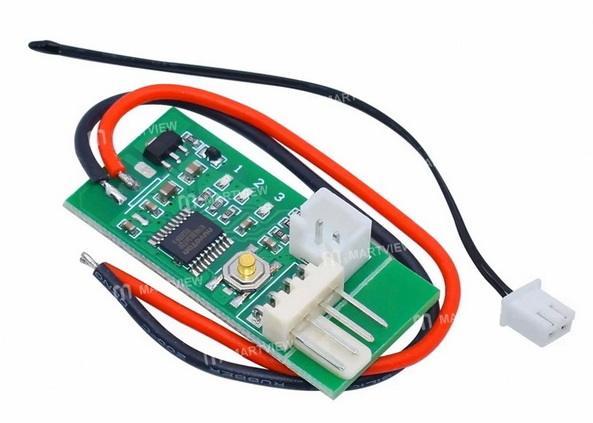

The control circuitry in a DC fan includes electronic components like Hall sensors and ICs that manage the switching of the coils. This ensures efficient operation and speed control. Modern ICs can integrate multiple functions, providing better control and protection for the fan.
When installing a DC fan, it's crucial to ensure proper wiring to avoid damage or incorrect operation. For example, connecting two 12V fans in series would require a total of 24V, while connecting them in parallel would maintain a 12V supply across each fan.
Example Wiring Diagram for Series Connection:
graph LR
A[Power Supply +] --> B[Fan1 +]
B --> C[Fan1 -]
C --> D[Fan2 +]
D --> E[Fan2 -]
E --> F[Power Supply -]
DC fans are used in a variety of applications due to their efficiency, reliability, and low noise levels. Some common uses include:
- Computer Cooling: DC fans are widely used in computer systems to cool CPUs, GPUs, and other components.
- Ventilation Systems: They are used in ventilation systems for buildings to improve airflow and reduce energy consumption.
- Personal Cooling Devices: Portable DC fans are popular for personal use due to their compact size and energy efficiency.
DC fans offer several advantages over traditional AC fans:
- Energy Efficiency: DC fans consume less power for the same airflow, making them more energy-efficient.
- Noise Reduction: They operate at lower noise levels, which is beneficial in environments where quiet operation is required.
- Variable Speed Control: DC fans can be easily controlled to operate at different speeds, allowing for precise temperature management.
Despite their advantages, DC fans face challenges such as limited lifespan of bearings and potential overheating issues. Future developments focus on improving durability and integrating advanced control systems for better performance and efficiency. For instance, advancements in bearing technology and the use of high-quality materials can enhance the lifespan of DC fans.
Regular maintenance is essential to extend the lifespan of DC fans. Common issues include dust accumulation and bearing wear. Troubleshooting involves checking for loose connections, cleaning dust from blades, and ensuring proper voltage supply. Additionally, using a soft brush to clean the fan blades and stator can help maintain efficiency.
The environmental impact of DC fans is generally positive due to their energy efficiency. However, the production process and disposal of these fans can have environmental implications. Recycling and responsible manufacturing practices are crucial to minimize their ecological footprint.
In conclusion, DC fans operate by converting electrical energy into kinetic energy through electromagnetic induction. Their efficiency, reliability, and versatility make them a preferred choice in various applications. Understanding the working principle and components of DC fans is essential for optimizing their performance and ensuring proper installation.
Answer: The primary difference is the type of power supply used. DC fans operate on direct current, while AC fans use alternating current. DC fans are generally more efficient and quieter than AC fans.

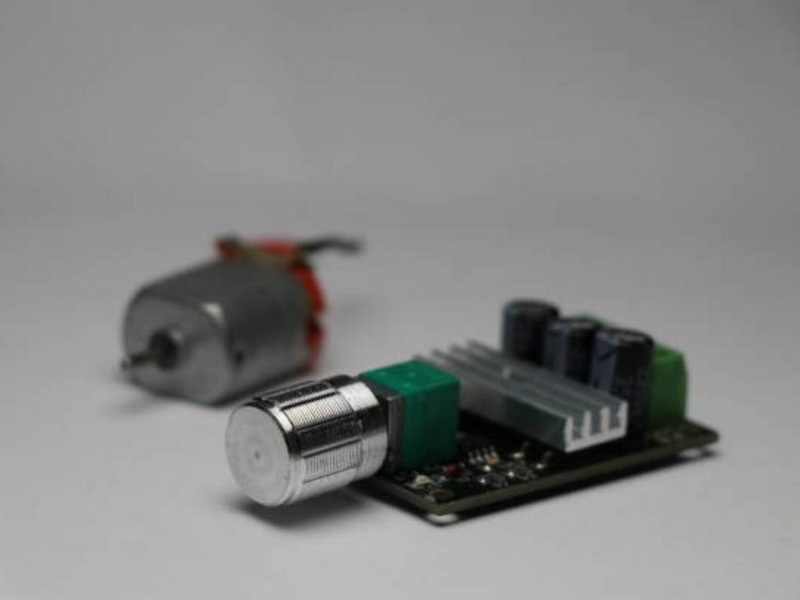

Answer: The speed of a DC fan can be controlled by adjusting the DC voltage supplied to it. Adding a variable resistor (potentiometer) to the circuit allows for speed variation by changing the voltage fed to the fan.
Answer: The main components include the rotor, stator, motor, and outer frame. The rotor contains the permanent magnet and fan blades, while the stator includes the coils and Hall sensor.
Answer: DC fans are preferred due to their efficiency, low noise levels, and ability to operate at variable speeds. They are also more suitable for devices that require precise temperature control.
Answer: When connecting multiple DC fans, ensure they are wired correctly to avoid overvoltage or undervoltage conditions. Series connections require the total voltage to match the sum of individual fan voltages, while parallel connections maintain the same voltage across each fan.
