When selecting an EC fan catalogue, it's crucial to consider several key factors to ensure you find the right product for your specific needs. EC fans, or electronically commutated fans, are renowned for their efficiency, reliability, and versatility. Here's a comprehensive guide to help you navigate through an EC fan catalogue effectively.
EC fans utilize brushless DC motors, which offer significant advantages over traditional AC fans. They provide higher efficiency, lower power consumption, and quieter operation. These features make them ideal for a wide range of applications, from residential HVAC systems to industrial cooling solutions.
- Energy Efficiency: EC fans consume less power compared to AC fans, especially when speed-controlled, making them a cost-effective choice for long-term use.
- Reliability: With fewer moving parts and no brushes, EC fans have a longer lifespan and require less maintenance.
- Noise Reduction: The design of EC fans results in quieter operation, which is beneficial in noise-sensitive environments.
When browsing an EC fan catalogue, consider the following features:
Ensure the catalogue specifies the type of EC motor used and its efficiency rating. High-efficiency motors are crucial for minimizing energy consumption.
Look for fans with variable speed control options, such as PWM (Pulse Width Modulation) or 0-10V input signals, which allow for precise airflow adjustments.
Check the fan's airflow rate and static pressure performance. This information is vital for determining if the fan can meet your specific application requirements.
Consider the noise level of the fan, especially if it will be used in environments where quiet operation is essential.
Ensure the fans comply with relevant international standards and certifications, such as AMCA (Air Movement and Control Association) or UL (Underwriters Laboratories).
The durability of the fan depends on its construction materials. Look for fans made from high-quality materials that can withstand environmental conditions.
Check if the fan offers flexible mounting options to accommodate different installation scenarios.
EC fans come in various configurations to suit different applications:

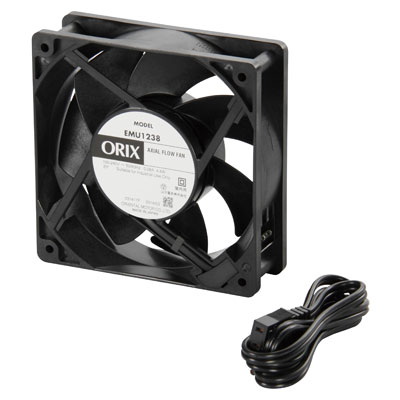

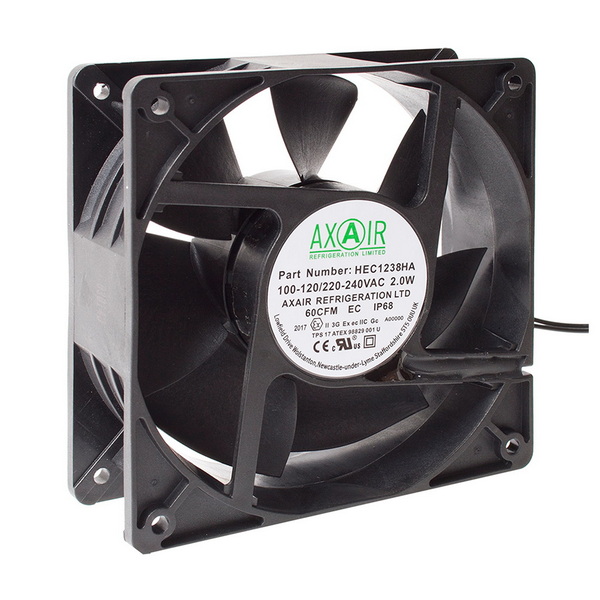

- Description: Axial fans are designed to move air parallel to the fan's axis. They are commonly used in HVAC systems, cooling towers, and industrial ventilation.
- Advantages: High airflow rates, compact design, and energy efficiency.
- Description: Centrifugal fans move air perpendicular to the fan's axis. They are often used in applications requiring high static pressure, such as in air handling units or dust collection systems.
- Advantages: High static pressure capability, robust construction, and versatility in ducted systems.
- Description: Mixed flow fans combine elements of both axial and centrifugal fans, offering a balance between airflow and pressure.
- Advantages: Suitable for applications requiring moderate airflow and pressure, such as in small HVAC systems.
Choosing the right EC fan involves matching the fan's specifications with your application's requirements:
1. Determine Airflow Needs: Calculate the required airflow rate based on the space or system you are cooling.
2. Consider Static Pressure: Ensure the fan can handle the static pressure of your ductwork or system.
3. Evaluate Noise Requirements: Select a fan that meets your noise level requirements.
4. Assess Environmental Conditions: Choose materials and designs suitable for your environment (e.g., moisture, dust).
EC fans are used in a wide range of industries:
- Residential HVAC: EC fans are used in air conditioning units and heat pumps for efficient cooling and heating.
- Industrial Ventilation: They are used in factories for ventilation and cooling machinery.
- Automotive: EC fans are used in vehicle cooling systems for improved efficiency and reliability.
- Medical Equipment: Used in medical devices requiring precise temperature control and quiet operation.
Some EC fan catalogues may include advanced features such as:
- Smart Sensors: Some fans come equipped with sensors that monitor temperature, humidity, or airflow, allowing for real-time adjustments.
- Wireless Connectivity: Fans with wireless connectivity can be controlled remotely via apps or integrated into smart home systems.
- Energy Harvesting: Some EC fans can integrate with energy-harvesting technologies to power themselves from ambient energy sources.
EC fans generally require less maintenance than traditional fans, but regular checks can ensure optimal performance:
- Cleaning: Regularly clean the fan blades and housing to prevent dust buildup.
- Inspection: Check for any signs of wear or damage on the fan's components.
- Troubleshooting: Refer to the manufacturer's guidelines for troubleshooting common issues like reduced airflow or unusual noises.
When selecting an EC fan from a catalogue, it's essential to consider factors like motor efficiency, speed control options, airflow, noise levels, and certifications. By understanding these aspects, you can choose the most suitable EC fan for your specific application, ensuring optimal performance and energy efficiency.
EC fans offer higher efficiency, lower power consumption, quieter operation, and longer lifespan compared to traditional AC fans. These benefits make them ideal for applications where energy savings and reliability are crucial.
To determine the right size, calculate the required airflow rate and static pressure for your system. Match these specifications with the fan's performance data provided in the EC fan catalogue.
EC fans often come with variable speed control options such as PWM (Pulse Width Modulation) or 0-10V input signals. These allow for precise airflow adjustments based on system demands.
Yes, EC fans can be suitable for outdoor applications if they are designed with appropriate ingress protection (IP) ratings to withstand environmental conditions like moisture and dust.
Check the EC fan catalogue for certifications such as AMCA, UL, or CE, which indicate compliance with international standards for safety and performance.
