Building a high-performance PC requires more than just powerful components; it demands a keen understanding of how to keep those components cool and running efficiently. Among the various connectors and headers on a modern motherboard, two often cause confusion for both beginners and experienced builders: CPU FAN and CPU OPT. While both are essential for maintaining optimal CPU temperatures, their specific purposes, features, and best-use scenarios differ. This comprehensive guide will explore what CPU OPT is, how it compares to CPU FAN, and how to utilize it to ensure your system stays cool and stable under any workload.

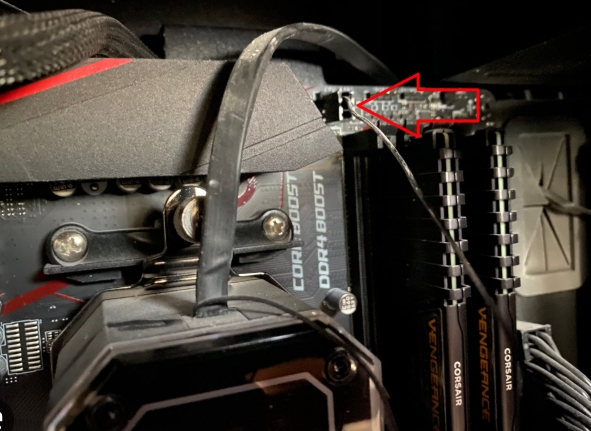

CPU OPT, short for "CPU Optional," is a dedicated fan header found on many modern motherboards. Its primary function is to provide an additional power and control source for cooling fans or pumps that are associated with the CPU cooler. The CPU OPT header is typically located close to the main CPU FAN header, making it easy to identify during PC assembly.
As CPU cooling technology has advanced, many high-end air coolers and liquid cooling solutions now feature multiple fans or require a separate power source for a pump. The CPU OPT header allows users to connect these additional cooling devices directly to the motherboard, ensuring synchronized cooling and efficient temperature management for the CPU.
The CPU OPT header is usually a four-pin connector, similar to the main CPU FAN header. This design allows for Pulse Width Modulation (PWM) control, enabling dynamic adjustment of fan speed based on CPU temperature. Some budget motherboards may only offer three pins, in which case PWM control is unavailable and only voltage-based speed control is possible.
- Secondary CPU fan: For large air coolers with two fans in a push-pull configuration.
- AIO liquid cooler pump or additional fan: When the cooler includes both a pump and fans, CPU OPT can provide power to one of these components.
- Case fan: In some setups, users may utilize CPU OPT for an extra case fan, especially if they want the fan speed to track CPU temperature.
| Feature | CPU FAN Header | CPU OPT Header |
|---|---|---|
| Primary Purpose | Main CPU cooling fan | Secondary CPU fan or pump |
| Location | Near CPU socket | Next to CPU FAN header |
| Boot Requirement | Mandatory for system boot | Optional, does not affect boot |
| Safeguards | Will halt boot if not detected | No boot safeguard |
| Monitoring | Full BIOS/UEFI integration | May lack some monitoring |
| PWM Support | Always (4-pin) | Usually, but not always |
| Use with Splitters | Not recommended | Supported, within limits |
- CPU FAN is essential for system operation; the system may refuse to boot or issue warnings if nothing is connected.
- CPU OPT is optional and designed for additional cooling devices. It does not prevent boot if unused but can be monitored for warnings.

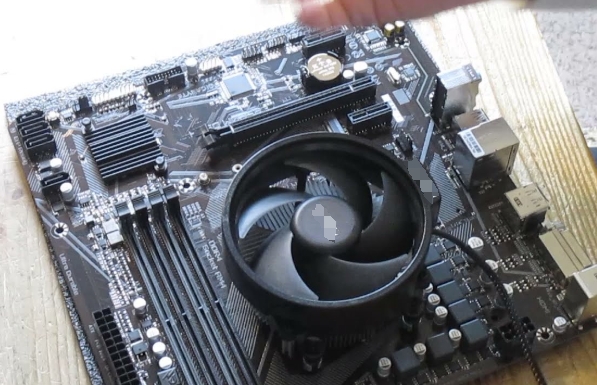

Many premium air coolers, such as those with a push-pull fan setup, come with two fans. Typically, the primary fan connects to CPU FAN, while the secondary fan connects to CPU OPT. This setup allows both fans to be controlled in tandem, ensuring balanced airflow and optimal cooling performance.
AIO coolers often include both a pump and one or more radiator fans. The standard approach is:
- Connect the main radiator fan to CPU FAN.
- Connect the pump or additional fan to CPU OPT.
- If your motherboard has a dedicated AIO_PUMP header, use that for the pump and reserve CPU OPT for a second fan.
For custom loops, the CPU OPT header can be used for either an extra radiator fan or the pump, depending on the available headers and your cooling design. Always consult your motherboard manual for specific recommendations.
If you want a case fan to ramp up its speed in response to CPU temperature (rather than overall system temperature), connecting it to CPU OPT is a practical solution. This is particularly useful for fans positioned near the CPU socket or radiator.
- CPU FAN: Main fan (center or front)
- CPU OPT: Secondary fan (rear or pull fan)
- CPU FAN: Radiator fan(s) via splitter or direct connection
- CPU OPT or AIO_PUMP: Pump
- CPU FAN: Critical radiator fan
- CPU OPT: Pump or secondary radiator fan

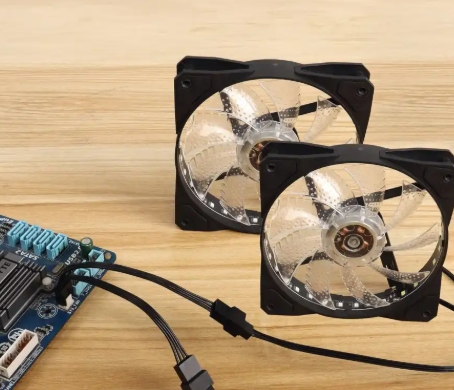

The CPU OPT header can safely power multiple fans via a Y-splitter, provided the total current draw does not exceed the header's rating. Always check your motherboard specifications before connecting multiple fans to a single header.
Both CPU FAN and CPU OPT headers can be controlled via the motherboard's BIOS or UEFI firmware. Most motherboards allow you to set custom fan curves, adjusting fan speeds based on temperature readings. Some software utilities also enable real-time monitoring and adjustment within the operating system.
- CPU FAN: Monitored by default; missing or malfunctioning fan will trigger warnings or halt boot.
- CPU OPT: Can be monitored and configured for warnings, but does not halt boot if disconnected.
Since the CPU FAN header is monitored by the motherboard for critical cooling, always connect your primary CPU cooler fan here. This ensures that if the fan fails or disconnects, the system will shut down to prevent thermal damage.
Reserve CPU OPT for secondary fans or cooling pumps. While you can use it for other fans, its location and function make it ideal for components directly related to CPU cooling.
Motherboard fan headers have current limits. When using splitters, ensure the total current draw does not exceed the header's rating. Overloading can damage the motherboard or cause erratic fan operation.
Some motherboards provide only three pins on CPU OPT, limiting speed control options. For PWM fans or pumps, ensure the header supports four-pin control.
- Check connection: Ensure the fan or pump is securely connected to the header.
- BIOS settings: Verify that the fan header is enabled and configured correctly.
- Pin compatibility: Confirm that the fan type matches the header (PWM vs. DC).
- Header assignment: Some monitoring software only tracks the CPU FAN header. If you want to monitor a fan connected to CPU OPT, configure your BIOS or use compatible software.
- Motherboard limitations: On some boards, CPU OPT may not support full monitoring or control features.
- Speed fluctuations: If a case fan is connected to CPU OPT, it may ramp up or down in response to CPU temperature, which can be unexpected. For more consistent case airflow, use SYS_FAN or CHA_FAN headers instead.
Understanding the CPU OPT header is essential for anyone building or upgrading a PC with advanced cooling needs. While it may seem like a minor detail, proper use of CPU OPT can enhance cooling efficiency, system stability, and even extend component lifespan. Always connect your main CPU cooler to the CPU FAN header, and use CPU OPT for secondary fans or pumps. Consult your motherboard manual for specific recommendations, and never exceed the power limits of your headers. With thoughtful configuration, both CPU FAN and CPU OPT can work together to keep your system running cool and quiet.
Answer:
Nothing will happen if you leave CPU OPT empty. It is an optional header and does not affect system boot or performance. It is only needed if you have a secondary CPU fan or pump that requires power and control.
Answer:
Yes, you can connect a case fan to CPU OPT. However, the fan speed will be tied to CPU temperature rather than overall system temperature, which may not be ideal for all airflow setups.
Answer:
It is safe to use a splitter on CPU OPT as long as the total current draw does not exceed the header's rating. Always check your motherboard's documentation for specific limits.
Answer:
You can connect an AIO pump to CPU OPT if your motherboard lacks a dedicated AIO_PUMP header. Ensure the header supports the required voltage and control method for your pump.
Answer:
Most systems will not boot or will display a warning if nothing is connected to CPU FAN. Always connect your main CPU cooler to the CPU FAN header to ensure proper operation and system protection.
