Computer fans play a vital role in keeping your PC's internal components cool, ensuring smooth performance and longevity. Whether you're building a new system, replacing a faulty fan, or upgrading for better airflow, knowing how to measure a computer fan is crucial. This guide will walk you through every aspect of measuring a computer fan, from understanding standard sizes to practical measurement techniques and tips for choosing the right fan for your needs.
Selecting the correct fan size is essential for several reasons:
- Compatibility: Only fans that match your case's mounting points will fit securely.
- Cooling Efficiency: The right size ensures adequate airflow for your system's thermal demands.
- Noise Levels: Larger fans can move more air at lower speeds, often resulting in quieter operation.

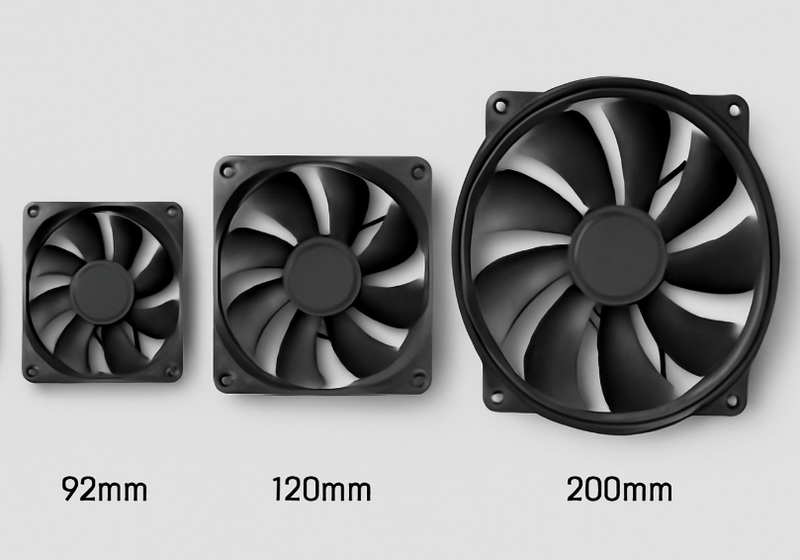

Computer fans are available in various standard sizes, typically measured in millimeters. The most common sizes include:
- 80 mm
- 92 mm
- 120 mm
- 140 mm
- 200 mm
Each size serves different purposes, from compact cases to high-performance gaming rigs. Larger fans generally provide better airflow at lower noise levels but require more space.
The size of a computer fan is determined by measuring the length of one edge of the fan's square frame, not the blades. This measurement is taken from the outer edge of one side to the outer edge of the opposite side, typically in millimeters.
1. Turn Off and Unplug Your Computer: Always ensure safety before handling any internal components.
2. Remove the Fan (if necessary): For the most accurate measurement, it's best to remove the fan from its mounting.
3. Place the Fan on a Flat Surface: This provides stability for precise measurement.
4. Measure Edge to Edge: Using a ruler or measuring tape, measure from one outer edge of the frame to the opposite outer edge. This gives you the fan's size.
5. Check Mounting Hole Distance: Measure the distance between the centers of two adjacent mounting holes. This can help confirm the fan's size, as mounting hole spacing is standardized for each fan size.
If you cannot remove the fan, you can measure it while it's still mounted, though it may be less precise. Carefully position your ruler across the visible frame and estimate the size as closely as possible.
Fan speed is measured in revolutions per minute (RPM). Many modern fans, especially those with three or four wires, have a tachometer signal wire that allows your motherboard or fan controller to read the RPM directly. Alternatively, you can use a dedicated tachometer device or an optical sensor setup to measure RPM manually.
To test a fan's voltage and current draw:
- Use a Multimeter: Set your multimeter to the appropriate voltage or current range.
- Connect the Probes: For voltage, touch the probes to the positive and negative terminals of the fan. For current, wire the multimeter in series with the fan's power supply.
- Read the Values: The multimeter will display the voltage or amperage, helping you verify the fan's power requirements and operational status.
These are the most common type, typically ranging from 80 mm to 140 mm. They are mounted on the case to provide general airflow.
These are often smaller and specifically designed to cool the processor or graphics card. Their sizes and mounting mechanisms can vary depending on the hardware.
Used in liquid cooling setups, these fans are usually 120 mm or 140 mm and are designed to push or pull air through a radiator for efficient heat dissipation.
If you have access to your case or fan's model number, check the manufacturer's documentation or website for exact specifications. This is often the easiest way to confirm fan size and compatibility.
Consider the available space in your case and the cooling requirements of your components. Larger fans may not fit in compact cases, while smaller fans may not provide enough airflow for high-performance systems.
- Always measure in millimeters for consistency, as most fan sizes are specified this way.
- Double-check mounting hole spacing to ensure compatibility with your case.
- Consider airflow (CFM) and static pressure ratings, especially for fans used on radiators or with dust filters.
- Balance noise and performance: Larger fans running at lower speeds can be quieter while still providing effective cooling.
Some older or proprietary systems may use non-standard fan sizes. In these cases:
- Round to the nearest standard size if the measurement is close.
- Look for adapter brackets or custom mounting solutions if an exact replacement isn't available.
- Consult online forums or the manufacturer for advice on compatible replacements.
Suppose you have a fan installed in your case with no visible size markings. By measuring from one edge of the frame to the opposite edge, you find it's about 120 mm. You also measure the distance between the centers of two adjacent mounting holes and find it matches the standard for 120 mm fans. You can confidently purchase a 120 mm replacement.
You want to ensure your new fan won't overload your power supply. By using a multimeter, you measure the fan's current draw and confirm it matches the manufacturer's rating, ensuring safe operation.
Measuring your computer fan is a straightforward but essential task for anyone looking to upgrade, replace, or optimize their PC's cooling system. By understanding how to measure the fan size, check mounting hole spacing, and assess other key specifications such as RPM, voltage, and amperage, you can ensure compatibility and optimal performance. Always use precise measurements, consult manufacturer documentation when available, and consider both airflow and noise requirements when selecting a new fan. With the right approach, you'll keep your system cool, quiet, and running smoothly.
To measure your computer fan, use a ruler or measuring tape to measure the length of one side of the fan's square frame from edge to edge. Do not measure the blades; always measure the frame for the most accurate result.
If your measurement is close to a standard size, round to the nearest standard fan size. Most cases and fans are designed around standard sizes, so this approach usually works. For rare non-standard sizes, look for adapter brackets or check with the manufacturer for compatible options.
Measure the distance between the centers of the mounting holes on your current fan or case. Compare this measurement to the specifications of the fan you intend to purchase. If they match, the fan should fit properly.
Many modern fans have a tachometer wire that allows your motherboard or fan controller to read the RPM directly. Alternatively, you can use a dedicated tachometer device or an optical sensor setup to measure RPM manually.
No, you should only use fans that match your case's mounting points. Attempting to use a larger fan may require modifications and could lead to improper fit or airflow issues. Always choose a fan size that is compatible with your case.
