Industrial exhaust fans are essential for maintaining optimal air quality, temperature, and safety in factories, warehouses, workshops, and commercial kitchens. Proper installation ensures efficient airflow, reduces contaminants, and extends equipment lifespan. This comprehensive guide walks you through the step-by-step process of installing an industrial exhaust fan, covering planning, preparation, mounting, wiring, testing, and maintenance best practices.
Industrial exhaust fans are high-capacity ventilation devices designed to remove stale air, fumes, heat, and airborne contaminants from large indoor spaces. They are commonly installed in manufacturing plants, warehouses, commercial kitchens, and other facilities where air quality and temperature control are critical.
These fans come in various sizes and configurations, including wall-mounted, roof-mounted, and ducted models. The right choice depends on the building layout, airflow requirements, and specific environmental challenges.
Begin by evaluating the size of the space, the types of contaminants present, and the volume of air that needs to be exchanged. Calculate the required airflow (measured in cubic feet per minute, or CFM) to ensure you select a fan with adequate capacity.
Every industrial exhaust fan comes with a manufacturer's installation manual. Thoroughly review these instructions, as different models may have specific requirements for mounting, wiring, and safety protocols.
Check local building and electrical codes to ensure your installation meets all legal and safety requirements. Obtain any necessary permits before starting work.
Choose a location that maximizes airflow efficiency and targets areas with the highest concentration of heat, fumes, or pollutants. Common options include:
- Wall-mounted installations for lateral airflow
- Roof-mounted installations for vertical exhaust
- Ducted systems for targeted extraction
Ensure the chosen site is structurally sound and can support the weight and vibration of the fan.
Keep the fan away from obstacles that could impede airflow, such as beams, pipes, or storage racks. Ensure there is enough clearance for maintenance access.
Before beginning the installation, assemble the necessary tools and materials:
- Power drill and drill bits
- Saw (reciprocating or circular)
- Wrenches and screwdrivers
- Level and measuring tape
- Mounting brackets and hardware
- Electrical wiring supplies (conduit, connectors, wire nuts)
- Safety equipment (gloves, goggles, hard hat)
- Weatherproof sealant and caulk
- Shims and framing lumber (if needed)
Having everything on hand will streamline the process and reduce downtime.
- Disconnect power at the breaker before working on electrical connections.
- Use ladders or scaffolding safely, especially for roof or high wall installations.
- Wear appropriate personal protective equipment (PPE).
- If unsure about electrical work, consult a licensed electrician.

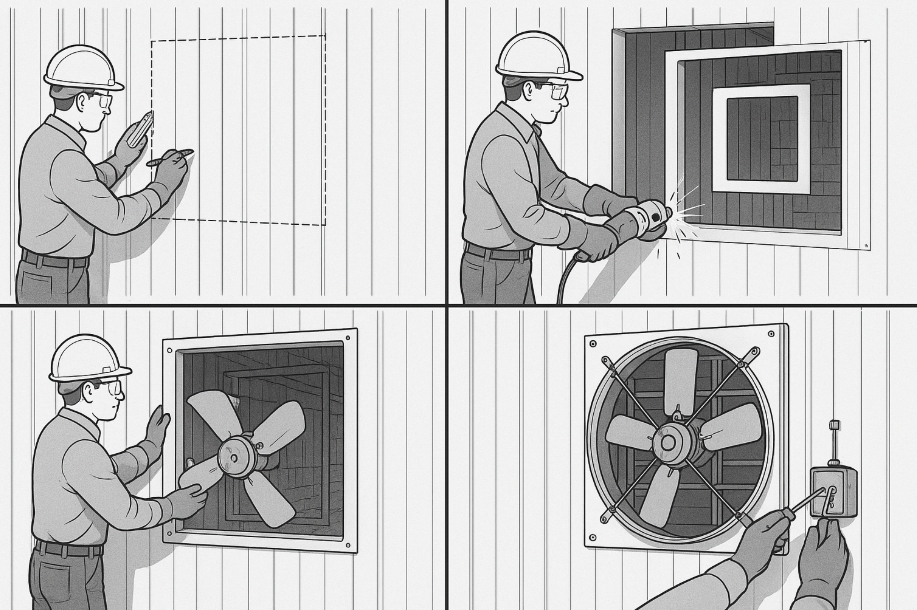

1. Mark the Opening: Using the fan's shroud or template, outline the opening on the wall or roof. Double-check measurements for accuracy.
2. Drill Pilot Holes: Drill pilot holes at each corner of the outline to make cutting easier.
3. Cut the Opening: Use a reciprocating or circular saw to cut along the marked lines. Remove any insulation or non-structural material from the area.
1. Remove Obstructing Studs: If wall studs or roof rafters are in the way, carefully remove or cut them back.
2. Build a Frame: Construct a sturdy frame around the opening using lumber (such as 2x6 boards) to support the weight of the fan and maintain structural integrity.
3. Install Sheathing (Optional): For added support, cover the inside of the opening with plywood sheathing, cutting a circular hole to fit the fan's shroud.
1. Position the Fan: Center the fan in the opening using shims if necessary. Ensure it is level and properly aligned for optimal airflow.
2. Secure the Fan: Attach the fan to the framing using the provided mounting brackets, screws, and washers. For roof installations, ensure the fan is securely fastened to withstand wind and vibration.
3. Install Vibration Isolators (Optional): In high-vibration environments, use vibration isolators to reduce noise and prevent wear.
1. Seal Gaps: Apply weatherproof caulk or sealant around the perimeter of the fan to prevent air and water leaks.
2. Install Flashing: For roof installations, install metal flashing to direct water away from the opening and protect against leaks.
1. Connect to Power: Run electrical wiring from the breaker box to the fan location, following the manufacturer's wiring diagram.
2. Install a Switch or Thermostat: Depending on the application, connect the fan to a wall switch, thermostat, or automated control system.
3. Ground the Fan: Properly ground the fan according to electrical codes to prevent electrical hazards.
4. Double-Check Connections: Ensure all wiring is secure and connections are tight before restoring power.
1. Restore Power: Turn the breaker back on and test the fan's operation.
2. Check for Proper Rotation: Make sure the fan blades spin freely and in the correct direction.
3. Inspect for Air Leaks: Feel around the installation for any air escaping through gaps and reseal as needed.
4. Balance Airflow: Adjust any dampers or louvers to achieve balanced airflow throughout the space.
- Regularly inspect the fan for dust, debris, and signs of wear.
- Clean the blades and housing to maintain efficiency.
- Check electrical connections periodically for corrosion or looseness.
- Lubricate moving parts as recommended by the manufacturer.
- Replace worn or damaged components promptly to prevent further issues.
- Incorrect Sizing: Installing a fan that is too small or too large for the space can reduce efficiency and increase energy costs.
- Poor Sealing: Failing to properly seal gaps can lead to air leaks, water intrusion, and reduced performance.
- Inadequate Support: Insufficient framing may cause the fan to vibrate excessively or even detach over time.
- Improper Wiring: Unsafe or incorrect electrical connections can pose serious fire and safety hazards.
- Neglecting Maintenance: Skipping regular inspections and cleaning can shorten the fan's lifespan and reduce effectiveness.
Installing an industrial exhaust fan is a multi-step process that requires careful planning, precise execution, and strict adherence to safety protocols. By following the guidelines outlined in this article, you can ensure a successful installation that improves air quality, enhances comfort, and protects both workers and equipment. Regular maintenance will keep your exhaust system running efficiently for years to come.
The required size depends on the volume of the space and the type of contaminants present. Calculate the necessary airflow (CFM) based on room dimensions and ventilation needs. Consult manufacturer guidelines or a ventilation specialist for accurate sizing.
While experienced DIYers can handle the physical installation, electrical wiring should be performed by a licensed electrician to ensure safety and code compliance. For complex or large-scale installations, hiring professionals is recommended.
Regularly clean the fan blades and housing, inspect for dust buildup, check electrical connections, and lubricate moving parts as needed. Schedule routine inspections to catch and address issues early.
Unusual noises, reduced airflow, excessive vibration, and frequent electrical issues are signs that maintenance or replacement may be necessary. Address these issues promptly to avoid further damage.
Yes. Always disconnect power at the breaker before working on electrical components, use proper PPE, and ensure the installation site is structurally sound. Follow manufacturer and local code requirements throughout the process.
