Upgrading or replacing your CPU cooling fan is one of the most effective ways to ensure your computer runs efficiently and stays cool under load. Whether you're building a new PC, experiencing overheating issues, or simply want quieter operation, installing a new CPU cooler can make a significant difference in both performance and longevity of your system. This comprehensive guide will walk you through every step of the process, from preparation to post-installation checks, ensuring a smooth and successful upgrade.
A CPU cooling fan is essential for dissipating heat generated by your processor. Over time, stock coolers may become less effective, or you might need better cooling for overclocking or demanding workloads. Upgrading to a more efficient cooler can:
- Lower CPU temperatures, improving stability and performance
- Reduce fan noise for a quieter computing experience
- Extend the lifespan of your processor and motherboard components
- Allow for higher performance through overclocking
- Prevent thermal throttling, which can slow down your computer during heavy tasks
Before you purchase a new cooler, it's important to understand the two main types:
Air coolers use a combination of a heatsink and one or more fans to draw heat away from the CPU and disperse it into the case. They are generally easier to install, more affordable, and require less maintenance. Air coolers are available in various sizes, from compact low-profile units to large tower coolers.

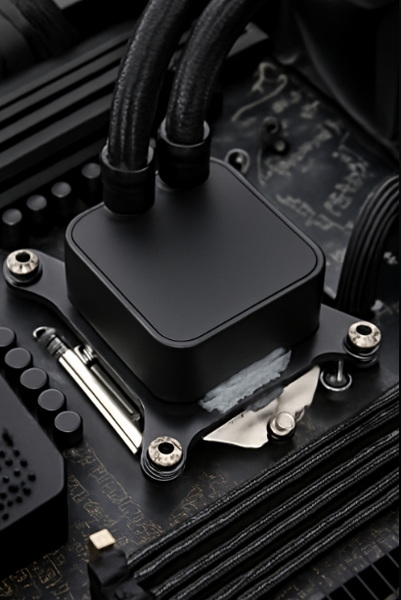

Liquid coolers, also known as all-in-one (AIO) coolers, use a closed-loop system filled with coolant. A pump moves the liquid from a cold plate on the CPU to a radiator, where fans dissipate the heat. Liquid coolers can offer superior cooling performance, especially for overclocked or high-end CPUs, but they can be more complex to install and may require more space inside your case.
Selecting the right CPU cooler depends on several factors:
- CPU Socket Compatibility: Ensure the cooler supports your motherboard's CPU socket.
- Case Clearance: Check the maximum cooler height or radiator length your case can accommodate.
- TDP Rating: Choose a cooler rated for your CPU's thermal design power (TDP).
- Noise Level: Look for coolers with larger, slower-spinning fans for quieter operation.
- Aesthetics: Some coolers offer RGB lighting or sleek designs to match your build.
Before you begin, gather the following items:
- Phillips-head screwdriver
- Isopropyl alcohol (preferably 90% or higher)
- Lint-free cloth or paper towels
- Thermal paste (if not pre-applied to the new cooler)
- Your new CPU cooler (with mounting hardware)
- Anti-static wrist strap (optional, but recommended)
- Small bowl or container for screws
Having everything ready will streamline the process and minimize the risk of damaging sensitive components.
A clean, static-free environment is crucial when working inside your computer. Follow these guidelines:
- Power down your PC and unplug all cables
- Move your case to a large, flat surface with good lighting
- Ground yourself by touching a metal object or using an anti-static wrist strap
- Remove the side panel of your case to access the motherboard
- Organize your tools and materials within easy reach
The removal process varies depending on your cooler type (stock, tower, or liquid), but the general steps are as follows:
1. Unplug the CPU fan connector from the motherboard.
2. Locate and unscrew the mounting hardware securing the cooler to the motherboard. This may involve unscrewing four corners or releasing retention clips, depending on your cooler design.
3. Gently twist the cooler to break the seal of the thermal paste, then lift it straight off the CPU. Avoid using excessive force, as this can damage the processor or socket.
4. If your cooler is attached to a radiator (liquid coolers), also unscrew and remove the radiator and fans from the case.
Take care to keep all screws and mounting hardware organized for reassembly or future use.
Proper cleaning is essential for optimal thermal transfer between the CPU and the new cooler.
- Dampen a lint-free cloth or paper towel with isopropyl alcohol.
- Gently wipe away all old thermal paste from the top of the CPU. Repeat until the surface is clean and free of residue.
- If reusing the old cooler, also clean the contact surface of the cooler base.
Allow the surfaces to dry completely before proceeding.
Thermal paste fills microscopic gaps between the CPU and cooler, ensuring efficient heat transfer. Here's how to apply it:
- If your new cooler has pre-applied thermal paste, you can skip this step.

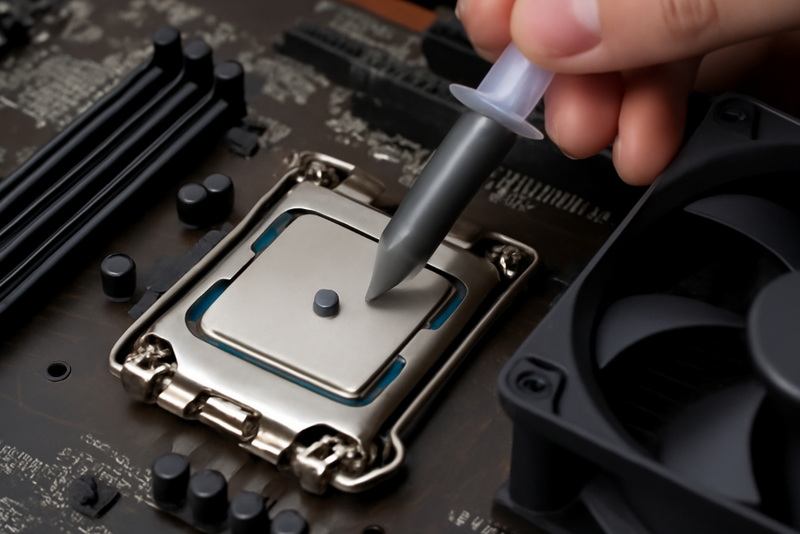

- If not, squeeze a small, pea-sized amount of thermal paste onto the center of the CPU.
- Avoid spreading the paste manually; the pressure from the cooler will distribute it evenly when installed.
Be careful not to use too much paste, as excess can spill over the edges and potentially cause problems.
The installation process depends on your cooler type and CPU socket (Intel or AMD), but the following steps are common:
- Position the cooler so that its mounting brackets align with the holes around the CPU socket.
- For tower coolers, ensure the fan will direct airflow toward the rear exhaust of your case.
- For liquid coolers, position the radiator and fans in your chosen mounting location (top, front, or rear of the case).
- Attach the cooler to the motherboard using the provided screws or clips.
- Tighten the screws in a diagonal (X) pattern to ensure even pressure across the CPU surface. This prevents uneven mounting and maximizes thermal conductivity.
- For coolers with spring-loaded screws, tighten each one a little at a time, alternating diagonally, until all are secure.
- If your cooler uses separate fans, attach them to the heatsink or radiator using the included clips or screws.
- Ensure the airflow direction matches your case's airflow pattern (usually indicated by arrows on the fan frame).
- Plug the CPU fan cable into the CPU_FAN header on your motherboard. This is typically located near the CPU socket.
- For coolers with additional fans or RGB lighting, connect the appropriate cables to their designated headers or controllers.
- Use cable ties or Velcro straps to tidy up excess cables and prevent them from interfering with other components or airflow.
Before closing your case, it's important to verify that the new cooler is functioning correctly.
- Double-check that all cables are connected and the cooler is securely mounted.
- Reconnect your power cable and turn on the system.
- Enter the BIOS/UEFI setup during boot to monitor CPU temperatures and fan speeds.
- Alternatively, use software tools within your operating system to check temperatures under idle and load conditions.
If temperatures are higher than expected, shut down the system and recheck the cooler installation and thermal paste application.
- System won't boot: Ensure the CPU fan is connected to the correct header and that all power cables are secure.
- High temperatures: Re-seat the cooler, reapply thermal paste, and verify that the fan is spinning.
- Unusual noises: Check for loose screws, cables touching the fan blades, or defective fans.
- Fan not spinning: Confirm the fan is plugged into the correct header and that the BIOS settings are correct.
- Vibration or rattling: Make sure all screws are tight and nothing is obstructing the fan.
- Clean dust from your CPU cooler and case fans every few months using compressed air.
- Check fan operation regularly to ensure they are spinning smoothly.
- Replace thermal paste every couple of years or if you notice rising temperatures.
- Listen for changes in fan noise, which can indicate wear or the need for lubrication or replacement.
- Keep your PC in a cool, well-ventilated area to reduce overall heat buildup.
Installing a new CPU cooling fan is a practical and rewarding upgrade that can greatly improve your computer's performance, stability, and noise levels. By following the detailed steps in this guide, you can confidently tackle the process, whether you're a first-time builder or an experienced enthusiast. Remember to choose a cooler that fits your needs, prepare your workspace carefully, and take your time during installation. Regular cleaning and monitoring will ensure your system remains cool and efficient for years to come.
Most coolers list supported CPU socket types (such as LGA1700, AM5, etc.) on their packaging or product page. Check your motherboard's socket type and ensure the cooler supports it. Some coolers include multiple mounting brackets for different sockets.
Yes, you should always clean off the old thermal paste and apply a fresh layer whenever you remove or replace your CPU cooler. This ensures optimal heat transfer and prevents overheating issues.
In most cases, you can install a new air cooler without removing the motherboard, provided there is enough clearance in your case. For some large tower coolers or liquid coolers requiring a backplate, you may need to access the underside of the motherboard, which can require removal from the case.
Double-check the cooler's mounting pressure, ensure the thermal paste is applied correctly, verify that the fan is spinning, and confirm the airflow direction. Also, make sure your case has adequate ventilation and that dust is not blocking airflow.
It's a good practice to clean your CPU cooler and fan every few months to remove dust buildup. Replacement is only necessary if the cooler becomes noisy, fails, or no longer provides adequate cooling for your needs.
