In the world of modern electronics, industrial automation, and HVAC systems, efficient cooling is not just a luxury—it's a necessity. Overheating can lead to system failures, reduced lifespan for components, and increased operational costs. Among the many cooling solutions available, the axial muffin fan stands out as a reliable, versatile, and cost-effective option. This article explores why the axial muffin fan is a preferred choice for cooling systems, delving into its design, performance, applications, and the advantages it brings to various industries.

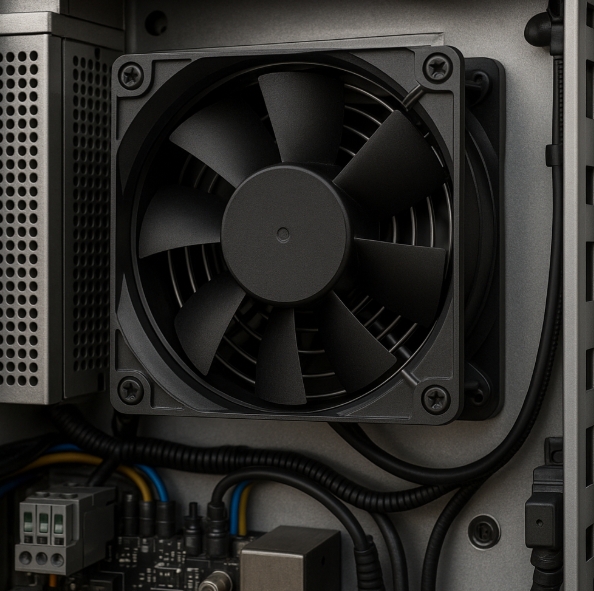

An axial muffin fan is a type of axial-flow fan characterized by its compact, square or rectangular housing—resembling a "muffin tin," hence the name. It operates by drawing air in parallel to the axis of the fan and expelling it in the same direction, creating a high-volume, low-pressure airflow. This design is particularly effective for moving large amounts of air through confined spaces, such as electronic enclosures, server racks, and industrial equipment.
- Motor: Powers the rotation of the blades.
- Blades (Impeller): Skewed or angled to maximize airflow while minimizing noise.
- Housing: Typically made of durable materials like aluminum or thermoplastics for longevity and heat resistance.
- Bearings: High-quality bearings, such as ball bearings, ensure long service life and quiet operation.
The simplicity of the axial muffin fan's design allows for direct intake and discharge of air, reducing complexity and improving efficiency.
Axial muffin fans move air along the axis of rotation, meaning air enters and exits in a straight line. As the blades spin, they create a pressure difference, drawing air through the fan and expelling it on the other side. This mechanism is ideal for applications where high airflow is needed over short distances and where space is at a premium.
- High Airflow, Low Pressure: Axial muffin fans are designed to deliver a significant volume of air at relatively low static pressure, making them perfect for ventilating enclosures and cooling components that generate heat.
- Energy Efficiency: Their simple design translates to lower power consumption compared to other fan types, such as centrifugal fans.
- Quiet Operation: Modern axial muffin fans incorporate aerodynamic blade designs and advanced materials to reduce noise, making them suitable for noise-sensitive environments.
Axial muffin fans are compact, allowing them to fit into tight spaces where other fan types might not be practical. Their flat, square form factor makes them easy to mount on panels, within cabinets, or directly onto electronic devices.
The axial design enables these fans to move large volumes of air efficiently, which is essential for cooling densely packed electronic components or ventilating small enclosures. The high airflow helps maintain optimal operating temperatures, preventing overheating and extending the lifespan of sensitive equipment.
Axial muffin fans are generally more affordable than other fan types due to their simple construction and fewer components. This makes them an attractive option for manufacturers and end-users looking to balance performance with budget constraints.
Available in a wide range of sizes, voltages, and airflow ratings, axial muffin fans can be tailored to suit various applications—from cooling small desktop devices to ventilating large industrial systems. Some models offer features like variable speed control, thermal protection, and moisture resistance for specialized uses.
High-quality axial muffin fans use robust materials and advanced bearing systems, such as dual-ball bearings, to ensure reliable operation over tens of thousands of hours. This durability reduces maintenance needs and downtime in critical systems.
The standardized shapes and mounting patterns of axial muffin fans simplify installation and replacement. Many models come with plug-and-play features, such as pre-attached power cords or quick-connect terminals, further streamlining setup and servicing.
Axial muffin fans are used across a broad spectrum of industries and environments due to their adaptability and performance. Common applications include:
- Electronics Cooling: Preventing overheating in computers, servers, and networking equipment.
- Industrial Equipment: Ventilating control panels, power supplies, and machinery.
- HVAC Systems: Assisting in air circulation and heat exchange.
- Refrigeration: Cooling condensers and compressors in vending machines and refrigerators.
- LED Displays and Signage: Maintaining optimal temperatures for high-brightness displays.
- Hydroponics and Indoor Agriculture: Ensuring proper air movement for healthy plant growth.
Recent advancements in fan engineering have further enhanced the performance of axial muffin fans:
- Aerodynamic Blade Design: Modern blades are shaped to maximize airflow while minimizing turbulence and noise, improving both efficiency and comfort in the operating environment.
- Material Improvements: The use of heat-resistant thermoplastics and reinforced composites increases durability and allows operation in challenging conditions.
- Smart Features: Integration of variable speed controls, temperature sensors, and remote monitoring enables adaptive cooling, reducing energy consumption and noise when full power is not needed.
- Customization: Manufacturers now offer custom solutions tailored to specific cooling challenges, including unique sizes, mounting options, and environmental protections.
| Feature | Axial Muffin Fan | Centrifugal Fan | Blower Fan |
|---|---|---|---|
| Airflow Direction | Along the axis | Perpendicular to axis | Perpendicular to axis |
| Pressure Capability | Low | High | High |
| Airflow Volume | High | Moderate | Moderate |
| Size/Footprint | Compact | Larger | Larger |
| Noise Level | Low to moderate | Moderate to high | Moderate |
| Cost | Low | Higher | Higher |
| Maintenance | Low | Moderate | Moderate |
| Typical Applications | Electronics, HVAC | Ducted systems, HVAC | Industrial, HVAC |
The axial muffin fan has earned its reputation as a cornerstone of modern cooling systems. Its compact size, high airflow efficiency, energy savings, and adaptability make it the go-to solution for a wide variety of applications. Whether you're managing heat in sensitive electronics, ventilating industrial machinery, or optimizing air movement in HVAC systems, the axial muffin fan delivers reliable performance and value.
Continuous innovations in fan design and materials are pushing the boundaries of what axial muffin fans can achieve, ensuring they remain a vital component in the future of cooling technology. For anyone seeking a dependable, efficient, and cost-effective cooling solution, choosing an axial muffin fan is a decision grounded in both science and practicality.
An axial muffin fan is distinguished by its compact, square or rectangular housing and is specifically designed for installation in confined spaces, such as electronic enclosures or equipment panels. Its design allows for efficient airflow while minimizing noise and maximizing space utilization.
To choose the right axial muffin fan, consider the volume of air that needs to be moved (measured in CFM), the available space for installation, and the specific cooling requirements of your equipment. Manufacturers provide detailed specifications to help match fan performance to your needs.
Yes, high-quality axial muffin fans are designed for continuous operation, with durable bearings and materials that ensure long service life. Some models can operate for over 60,000 hours without significant maintenance.
Many axial muffin fans are built with heat-resistant, moisture-resistant, or corrosion-resistant materials, making them suitable for demanding environments such as industrial plants, outdoor installations, or areas with high humidity.
Noise can be minimized by selecting fans with advanced aerodynamic blade designs, using vibration-dampening mounts, and operating the fan at lower speeds when possible. Some models are specifically engineered for ultra-quiet performance.
