In electronics, effective thermal management is crucial, especially for compact devices operating in enclosed spaces. Overheating can lead to performance degradation, system instability, and even permanent damage. A 5-8v dc miniature cooling fan-offers a practical and efficient solution for dissipating heat in such applications. These fans are widely used in various electronic devices, including Raspberry Pis, small single-board computers (SBCs), FPGAs, motor drivers, and custom electronic projects. This article delves into the factors that contribute to the performance of 5-8v dc miniature cooling fans, aiming to identify which fan offers the best balance of cooling efficiency, noise level, power consumption, and reliability for specific cooling needs.

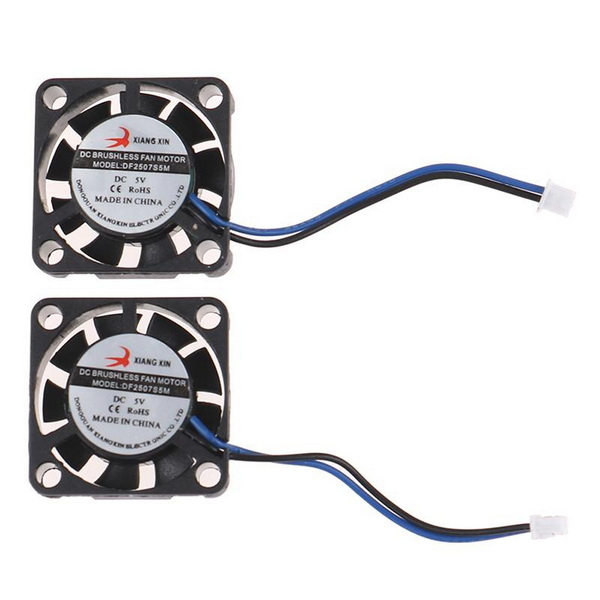

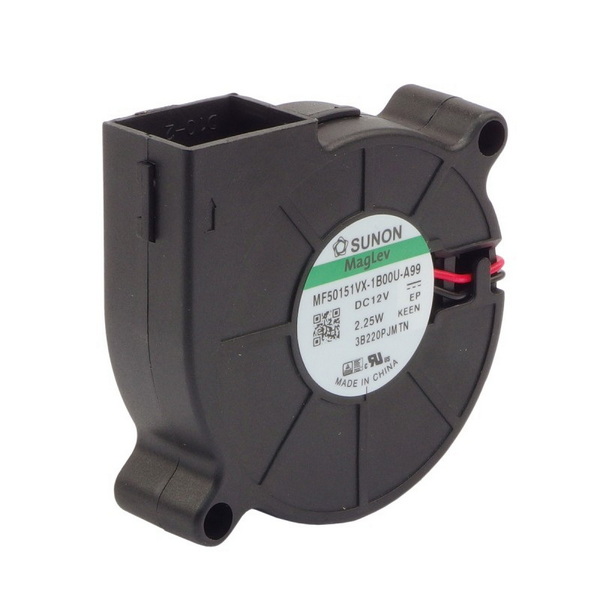

5-8v dc miniature cooling fans-are compact cooling solutions specifically designed to operate within a 5 to 8-volt direct current (DC) range. Their small size, often around 30mm x 30mm x 7mm to 40mm x 40mm x 10mm, makes them ideal for applications where space is severely limited. Despite their small footprint, these fans are engineered to provide significant airflow to dissipate heat from critical components.
- Operating Voltage: Optimized to function efficiently and safely within the 5-8V DC range. This voltage range is common in many electronic devices, making integration straightforward.
- Size: Compact dimensions are crucial for fitting into small enclosures and mounting directly onto components like heat sinks.
- Brushless DC Motor (BLDC): Almost all modern 5-8v dc miniature cooling fans-utilize brushless DC motors. These motors offer superior reliability, longevity, and energy efficiency compared to older brushed DC motors. They also tend to produce less electromagnetic interference (EMI).
- Connectors: Typically come with industry-standard connectors such as Molex PicoBlade, JST 2-pin, or 3-pin connectors for easy and secure connection to power sources or control circuits. The 3-pin connector often includes a tachometer output, allowing for fan speed monitoring.
- Materials: The fan blades are usually made from durable plastics designed to withstand continuous operation and resist deformation. The housing is also typically made from plastic but can sometimes be found in metal for enhanced durability and heat dissipation.
- Raspberry Pi Cooling: Essential for preventing thermal throttling and ensuring stable performance when the Raspberry Pi is used for demanding tasks such as media streaming, gaming, or server applications.
- FPGA Cooling: Field-Programmable Gate Arrays (FPGAs) generate considerable heat, especially during complex computations. 5-8v dc miniature cooling fans-are crucial for maintaining optimal operating temperatures and preventing overheating, which can lead to errors or device failure.
- Motor Driver Cooling: Motor drivers used in robotics, CNC machines, and other applications can generate significant heat. A cooling fan helps dissipate this heat, ensuring the driver operates reliably and efficiently.
- Small Computers: Used in mini-PCs, embedded systems, and other compact computer systems to maintain stable performance and prevent overheating.
- 3D Printer Hotends and Electronics: These fans cool the hotend to prevent heat creep and the control board to ensure reliability.
- VR Headsets: Cooling internal components in VR headsets to improve user comfort and prevent performance drops due to overheating.
- Portable Game Consoles: Maintaining stable temperatures inside handheld gaming devices for optimal performance.
Several key factors influence the overall performance and suitability of 5-8v dc miniature cooling fans. Understanding these factors is crucial for selecting the best fan for a specific application.
Airflow, measured in Cubic Feet per Minute (CFM), is arguably the most critical specification. It indicates the volume of air a fan can move within a given time. A higher CFM value generally translates to better heat dissipation and more effective cooling. However, it's important to consider the static pressure alongside CFM, especially in applications where the fan is pushing air through a restricted space, such as a heat sink.
Fan speed, measured in Revolutions Per Minute (RPM), directly impacts the airflow. Higher RPMs typically result in greater airflow and improved cooling efficiency. However, increased RPMs also tend to increase noise levels. Therefore, finding a balance between RPM and noise is essential. Some fans offer variable speed control, allowing users to adjust the RPM based on the cooling requirements and noise sensitivity of the application.
Noise level, measured in decibels (dB), is a crucial consideration, especially for applications where quiet operation is necessary, such as home entertainment systems, office environments, or wearable devices. Lower dB values indicate quieter operation. Manufacturers often provide noise level specifications at different RPM levels, allowing users to make informed decisions based on their specific noise requirements.
Static pressure is a measure of the fan's ability to push air through obstructions, such as heat sinks or filters. High static pressure is important when cooling components that are densely packed or have significant airflow restrictions.
The quality of materials and construction significantly affects the fan's durability, lifespan, and overall performance. High-quality fans are more likely to provide consistent performance over extended periods and withstand demanding operating conditions. Look for fans with robust bearings, durable fan blades, and well-constructed housings.
The type of bearing used in the fan significantly impacts its lifespan and noise level. Common bearing types include:
- Sleeve Bearings: These are the most common and least expensive type of bearing. They are generally quieter at low speeds but have a shorter lifespan compared to other bearing types.
- Ball Bearings: Ball bearings offer longer lifespans and can operate at higher speeds compared to sleeve bearings. However, they tend to be noisier, especially at lower speeds.
- Fluid Dynamic Bearings (FDB): FDBs are the most advanced type of bearing. They use a thin layer of fluid to reduce friction and noise. FDB fans offer excellent performance, long lifespans, and quiet operation, but they are typically more expensive.
Lower power consumption is desirable for energy efficiency, especially in battery-powered devices or applications where minimizing power draw is critical. Power consumption is typically specified in terms of voltage (V) and current (A).
To objectively evaluate and compare 5-8v dc miniature cooling fans, it's essential to consider several key performance metrics.
The primary goal of a cooling fan is to dissipate heat effectively. Cooling efficiency can be quantified by measuring how well the fan maintains the temperature of the device it is cooling under various load conditions. This can be done using thermal imaging or temperature sensors.
Measure the temperature difference with and without the fan operating, ideally under load. This provides a direct indication of the fan's cooling effectiveness.
Measure the actual power drawn by the fan under typical operating conditions. This should be compared to the manufacturer's specifications.
Manufacturers often specify the Mean Time Between Failures (MTBF) for their fans. This is a statistical measure of the expected lifespan of the fan under normal operating conditions. Higher MTBF values indicate greater reliability and longevity.
Excessive vibration can cause noise, reduce the lifespan of the fan and the device it is cooling, and potentially damage sensitive components. Vibration levels can be measured using accelerometers.
It's difficult to provide a definitive "best" 5-8v dc miniature cooling fan-without specific application details. However, we can compare generic models based on typical specifications and features. Keep in mind that actual performance can vary depending on the manufacturer and specific model.
- Airflow: Typically around 5-10 CFM
- Speed: 3000-5000 RPM
- Noise Level: 20-30 dB
- Power Consumption: 0.2A at 5V
- Bearing Type: Sleeve Bearing
- Pros: Inexpensive, readily available.
- Cons: Shorter lifespan, potentially higher noise.
- Typical Applications: Basic cooling for Raspberry Pi, small electronics projects.
- Airflow: 10-15 CFM
- Speed: 4000-6000 RPM
- Noise Level: 25-35 dB
- Power Consumption: 0.25A at 5V
- Bearing Type: Ball Bearing
- Pros: Higher airflow, better cooling performance.
- Cons: Noisier, higher power consumption, may be more expensive.
- Typical Applications: FPGA cooling, motor driver cooling, applications requiring more aggressive cooling.
- Airflow: 3-7 CFM
- Speed: 2000-4000 RPM
- Noise Level: 15-25 dB
- Power Consumption: 0.15A at 5V
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Pros: Very quiet operation, long lifespan.
- Cons: Lower airflow, may not be sufficient for high-heat applications, typically more expensive.
- Typical Applications: Noise-sensitive environments, home entertainment systems, wearable devices.
The choice of fan depends entirely on the specific requirements of the application. For example, a high-performance fan might be preferred for applications where maximum cooling is needed, while an ultra-quiet fan would be better suited for noise-sensitive environments. Consider using a fan controller to adjust speed and noise.
To ensure optimal performance and extend the lifespan of a 5-8v dc miniature cooling fan, follow these installation and usage tips:
Ensure the fan is securely mounted to minimize vibration and maximize airflow. Use screws, adhesive pads, or specialized mounting brackets to ensure a stable and secure attachment.
Orient the fan correctly to direct airflow effectively over the heat source. Most fans have an arrow indicating the direction of airflow. Typically, the fan should be positioned to draw cool air from the surroundings and exhaust hot air away from the component being cooled.
Dust accumulation can significantly reduce fan performance and lifespan. Clean the fan regularly using compressed air or a soft brush. Pay particular attention to the fan blades and the air intake and exhaust vents.
Use a stable and regulated power supply within the specified voltage range (5-8V DC) to prevent damage to the fan. Overvoltage can damage the fan motor, while undervoltage can reduce its performance.
Consider using a fan controller to adjust the fan speed based on the temperature of the component being cooled. This allows for optimizing the balance between cooling performance and noise level. Some fan controllers can automatically adjust the fan speed based on temperature readings from a thermal sensor.
Periodically monitor the fan's performance to ensure it is operating correctly. Listen for unusual noises, check the airflow, and monitor the temperature of the component being cooled.
In Raspberry Pi applications, a 5V mini cooling fan-can be easily attached to the 5V and GND GPIO pins to provide continuous cooling. This is particularly beneficial when the Pi is used for CPU-intensive tasks for extended periods, such as running a media server, compiling code, or performing machine learning tasks. Alternatively, a PWM-controlled fan connected to a GPIO pin can offer variable speed control.
For FPGAs, which can generate significant heat, a cooling fan can be mounted directly on the FPGA heat sink using thermal adhesive or mounting clips. This ensures efficient heat transfer and prevents the FPGA from overheating, which can lead to errors or device failure.
When used with motor drivers, the fan can be positioned to blow air across the driver's heat sink, effectively dissipating heat and preventing overheating. This is particularly important for motor drivers used in high-power applications, such as robotics or CNC machines.
In enclosed electronic devices, a 5-8v dc miniature cooling fan-can be used to create airflow and prevent heat buildup. The fan can be mounted on the enclosure to draw cool air in and exhaust hot air out, maintaining a stable internal temperature.
- Compact Size: Fits easily into small spaces, making them ideal for portable devices and embedded systems.
- Low Power Consumption: Suitable for battery-powered applications and energy-efficient designs.
- Effective Cooling: Helps maintain stable operating temperatures and prevents overheating.
- Easy Installation: Simple to integrate into existing systems with standard connectors.
- Affordability: Generally inexpensive compared to larger cooling solutions.
- Limited Airflow: May not be sufficient for high-heat applications or densely packed components.
- Noise: Can be noisy at higher speeds, especially with sleeve bearings.
- Lifespan: May be shorter compared to larger fans or fans with advanced bearing types.
- Static Pressure: Lower static pressure compared to larger fans, making them less effective at pushing air through obstructions.
Selecting the best 5-8v dc miniature cooling fan-requires careful consideration of the specific requirements of the application. Factors such as airflow, noise level, power consumption, build quality, and bearing type should be thoroughly evaluated. While a high-performance fan offers maximum cooling, an ultra-quiet fan may be more suitable for noise-sensitive environments. Proper installation, regular maintenance, and the use of fan controllers can further optimize performance and longevity. Ultimately, the optimal choice depends on striking the right balance between cooling efficiency, noise, power consumption, and cost.
The ideal voltage range for a miniature cooling fan is typically between 5-8V DC, as this range provides a balance between performance and energy efficiency. Operating within this range ensures the fan operates optimally without risking damage from overvoltage or reduced performance from undervoltage.
Choosing the right size cooling fan depends on the dimensions of the device you are cooling and the amount of space available. 5-8v dc miniature cooling fans-usually come in sizes around 30mm x 30mm x 7mm to 40mm x 40mm x 10mm, which are suitable for small computers, FPGAs, and motor drivers. Measure the available space and select a fan that fits comfortably without obstructing airflow.
Yes, you can control the speed of a 5V DC cooling fan-using an Arduino. By using a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) and connecting the fan to the Arduino, you can control the fan's on/off state and speed via PWM (Pulse Width Modulation) signals. This allows you to adjust the fan speed based on the temperature of the component being cooled.
You should clean your miniature cooling fan regularly, ideally every 1-3 months, depending on the environment. Dusty environments may require more frequent cleaning. Dust accumulation can significantly reduce the fan's efficiency and lifespan. Use compressed air or a soft brush to remove dust from the fan blades and housing.
Signs of a failing cooling fan include increased noise levels (grinding, rattling), reduced airflow, inconsistent fan speed, and the fan failing to start or stopping intermittently. If you notice any of these issues, it may be time to replace the fan to prevent overheating of your device and potential damage to other components.
