In the ever-evolving world of electronics and industrial cooling, the “DC muffin fan” stands out as a critical component for maintaining optimal operating temperatures. Whether found in computers, telecommunications equipment, industrial control panels, or even home appliances, the DC muffin fan is essential for protecting sensitive electronics from overheating and ensuring reliable performance. But what exactly is a DC muffin fan, how does it work, and why is it so widely used? This comprehensive guide will explore the structure, working principles, benefits, applications, selection criteria, and maintenance of DC muffin fans. By the end, you'll have a thorough understanding of this vital cooling technology.

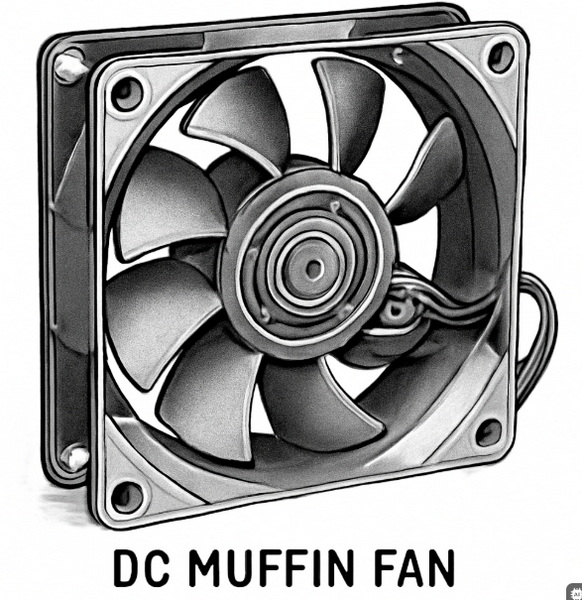

A DC muffin fan is a type of axial cooling fan that operates using direct current (DC) electricity. The term “muffin fan” is derived from its distinctive square or rectangular frame, which resembles a muffin tin. Designed to move air efficiently through electronic enclosures, DC muffin fans help dissipate heat and protect electronic components from damage due to excessive temperatures. These fans are available in a variety of sizes, voltages, and airflow capacities, making them highly versatile for different applications.
The frame of a DC muffin fan is usually constructed from flame-retardant plastic or metal, providing durability and mounting flexibility. The housing is designed to direct airflow efficiently and protect internal components from dust and debris.
The impeller consists of several blades attached to a central hub. As the impeller spins, it draws air through the frame and expels it in a linear direction, parallel to the axis of rotation.
At the core of every DC muffin fan is a brushless DC motor. This motor converts electrical energy into mechanical energy, driving the impeller to generate airflow. Brushless motors are favored for their efficiency, long life, and quiet operation.
Bearings support the rotating shaft and minimize friction. DC muffin fans typically use either sleeve bearings, which are cost-effective and quiet, or ball bearings, which offer greater durability and a longer service life.
Modern DC muffin fans incorporate electronic circuits for commutation, speed control, and sometimes additional features such as tachometer outputs or pulse-width modulation (PWM) control.
A Hall effect sensor detects the position of the rotor, enabling precise electronic commutation and speed feedback to the control circuitry.
The operation of a DC muffin fan is based on electromagnetic principles and modern electronic control. Here's how it works step by step:
The fan receives DC voltage (commonly 5V, 12V, 24V, or 48V) from a power source. This voltage powers the internal brushless DC motor.
When current flows through the stator windings, it generates a magnetic field. The rotor, equipped with permanent magnets, interacts with this field. The interaction between the magnetic fields of the stator and rotor generates a force that causes the rotor to turn.
Unlike traditional brushed motors, DC muffin fans use electronic commutation. The Hall effect sensor detects the rotor's position and signals the control circuit to switch the current in the stator windings at the precise moment, ensuring smooth and efficient rotation.
The rotor is mechanically linked to the impeller. As the rotor spins, the fan blades draw air through the fan and expel it in a directed flow that cools electronic components.
The speed of a DC muffin fan is directly proportional to the supplied voltage and current. Many fans support PWM control, allowing precise adjustment of speed for optimal cooling and noise management.
Bearings ensure the rotating assembly moves smoothly, reducing friction and extending the fan's operational life. Ball bearings typically offer longer lifespans than sleeve bearings.
These are the most common type, moving air parallel to the axis of rotation. They are ideal for general-purpose cooling in open environments.
These fans draw air in from the sides and expel it at a 90-degree angle, producing higher pressure airflow for cooling confined or high-resistance spaces.
- Energy Efficiency:
DC muffin fans consume significantly less power than AC fans, resulting in lower operational costs and reduced environmental impact.
- Quiet Operation:
The brushless motor design and efficient engineering result in low noise levels, making DC muffin fans suitable for noise-sensitive environments such as bedrooms, offices, and medical equipment.
- Precise Speed Control:
PWM and voltage regulation allow for fine-tuned speed adjustments, optimizing airflow and minimizing energy consumption.
- Long Lifespan:
Brushless motors and high-quality bearings contribute to extended service life, with some ball bearing fans rated for many thousands of hours of continuous operation.
- Compact and Lightweight:
The compact motor design enables slimmer, lighter fans, which are easier to integrate into modern, space-constrained devices.
- Smart Features:
Many DC muffin fans offer advanced options such as remote control, smart home integration, temperature and motion sensors, and reverse functionality for year-round comfort.
- Computers and Servers:
DC muffin fans are essential for cooling CPUs, graphics cards, power supplies, and server racks, preventing thermal throttling and hardware failure.
- Telecommunications:
They maintain optimal temperatures in routers, switches, and base stations, ensuring reliable network performance.
- Industrial Control Panels:
Muffin fans dissipate heat from control electronics, programmable logic controllers, and variable frequency drives.
- Medical Devices:
Quiet, efficient cooling is critical for sensitive diagnostic and imaging equipment.
- Home Appliances:
From air purifiers to entertainment systems, DC muffin fans provide silent, reliable airflow.
- Automotive Electronics:
They cool infotainment systems, battery packs, and power electronics in electric and hybrid vehicles.
When choosing a DC muffin fan, consider the following factors:
- Voltage and Current Requirements:
Ensure compatibility with your power supply (5V, 12V, 24V, 48V, etc.).
- Airflow and Static Pressure:
Match the fan's airflow (measured in CFM) and pressure to your cooling needs and enclosure design.
- Size and Mounting:
Select a fan size that fits your application, with appropriate mounting options.
- Noise Level:
For noise-sensitive environments, prioritize fans with low decibel ratings.
- Bearing Type:
Choose ball bearings for longevity or sleeve bearings for cost-effectiveness.
- Control Features:
Look for PWM support, tachometer outputs, or smart integration if needed.
- Reliability and Certification:
Opt for fans with certifications such as UL, RoHS, and compliance with relevant industry standards.
DC muffin fans are generally low-maintenance, but regular cleaning of dust and debris from the blades and housing will extend their lifespan. If a fan fails to start, check for power supply issues, loose connections, or bearing wear. Many modern fans include diagnostic features like tachometer outputs to monitor performance and alert users to potential issues.
DC muffin fans are indispensable components in modern electronics, offering efficient, reliable, and quiet cooling solutions across countless applications. Their brushless motor design, precise speed control, and energy efficiency make them superior to traditional AC fans in many respects. Whether you are designing a high-performance server, a sensitive medical device, or a smart home appliance, understanding the structure and operation of DC muffin fans will help you make informed decisions for optimal thermal management.
A DC muffin fan operates on direct current, using a brushless motor for higher efficiency, quieter operation, and precise speed control. In contrast, AC fans use alternating current and are generally less efficient and noisier.
The speed can be regulated by adjusting the supplied voltage or through pulse-width modulation (PWM), which allows for fine-tuned, energy-efficient speed adjustments without sacrificing performance.
DC muffin fans commonly use sleeve or ball bearings. Ball bearings offer longer life and better performance in high-temperature or high-vibration environments, while sleeve bearings are quieter and more cost-effective for standard applications.
Yes, many modern DC muffin fans offer smart features such as remote control, Wi-Fi or Bluetooth connectivity, and compatibility with smart home platforms like Alexa or Google Home.
The lifespan depends on the bearing type and operating conditions. Ball bearing DC muffin fans can last for many thousands of hours, while sleeve bearing models typically last for several years under optimal conditions.
