A custom squirrel cage fan is a highly specialized type of centrifugal fan engineered to efficiently move air in a variety of settings, including industrial, commercial, and residential environments. Its distinctive design and operational principles make it an essential component in ventilation, heating, cooling, and air circulation systems. This article provides an in-depth exploration of what a custom squirrel cage fan is, how it functions, its structural components, benefits, and typical uses.

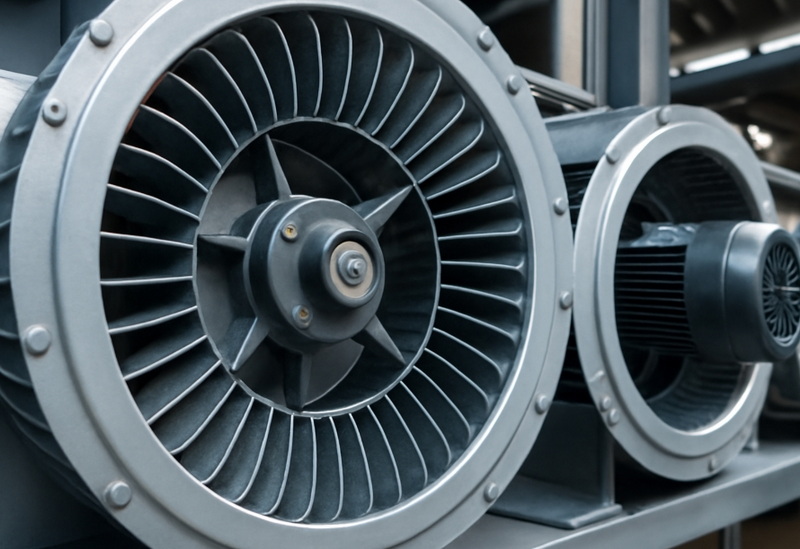

A custom squirrel cage fan is a centrifugal fan distinguished by its impeller, which resembles a cylindrical wheel with multiple curved blades arranged around its circumference. The term "squirrel cage" originates from the impeller's similarity to a hamster or squirrel exercise wheel. Unlike axial fans, which move air parallel to the fan's axis, squirrel cage fans draw air into the center of the impeller and expel it radially outward through the fan housing.
The "custom" aspect refers to the ability to tailor the fan's design to meet specific airflow, pressure, size, and environmental requirements. This customization can include variations in blade shape, housing geometry, motor type, and materials, allowing for optimization in efficiency, noise reduction, durability, and compatibility with particular applications.
The operation of a custom squirrel cage fan is based on the principle of centrifugal force generated by the rotating impeller. The process works as follows:
- The fan features a cylindrical impeller with curved blades mounted on a central hub connected to a motor shaft.
- When the motor powers the shaft, the impeller spins rapidly.
- Air enters the fan through an intake located at the center of the impeller.
- As the impeller rotates, it imparts centrifugal force to the air, pushing it outward toward the edges of the cylindrical cage.
- The air moves radially outward along the blades and is then directed by the fan housing (often a scroll or volute casing) to exit through the outlet.
- This radial movement increases the air's velocity and pressure, enabling the fan to generate static pressure and move air efficiently through ductwork or ventilation systems.
This design allows the fan to maintain high performance even against static pressure, which is a significant advantage over axial fans that tend to lose efficiency when faced with back pressure. The direction of rotation and the curvature of the blades are carefully engineered to maximize airflow while minimizing noise and energy consumption.
The impeller is the core component of the fan and consists of a series of blades arranged around a central hub. The blade design is crucial for determining the fan's performance characteristics. The main blade types include:
- Forward-curved blades: These blades curve in the direction of rotation and are typically used in applications requiring low pressure but high airflow volumes, such as residential HVAC systems.
- Backward-curved blades: These blades curve opposite to the direction of rotation, offering higher efficiency and the ability to handle higher static pressures, making them suitable for industrial and commercial applications.
- Straight blades: These blades provide a compromise between efficiency and noise, suitable for a variety of general-purpose applications.
The choice of blade design affects the airflow capacity, pressure generation, noise levels, and energy consumption of the fan.
The housing encloses the impeller and plays a vital role in directing airflow. It is typically shaped as a scroll or volute, designed to convert the kinetic energy of the moving air into static pressure by gradually expanding the cross-sectional area. This design minimizes turbulence and ensures smooth airflow toward the discharge outlet, enhancing efficiency and reducing noise.
The motor drives the impeller and is selected based on the fan's size and application. Smaller fans often use single-phase motors, while larger industrial fans use three-phase motors for greater power and efficiency. The motor converts electrical energy into mechanical energy, spinning the impeller at the required speed to achieve the desired airflow and pressure.
There are two primary types of drive mechanisms in custom squirrel cage fans:
- Direct-driven: The motor shaft is directly connected to the impeller, which reduces energy losses, minimizes maintenance, and often results in quieter operation.
- Belt-driven: This mechanism uses belts and pulleys to connect the motor and impeller, allowing flexible motor placement and easier speed adjustments. Belt-driven fans are common in large industrial applications where space or speed variability is a concern.
When designing a custom squirrel cage fan, several factors must be considered to ensure optimal performance:
- Airflow Requirements: The volume of air that needs to be moved per unit time determines the impeller size and motor power.
- Static Pressure: The resistance the fan must overcome, such as ductwork or filters, influences blade design and motor selection.
- Noise Levels: Applications sensitive to noise require fans with aerodynamic blade shapes and sound-dampening housings.
- Environmental Conditions: Fans used in harsh environments may require corrosion-resistant materials, special coatings, or sealed motors.
- Energy Efficiency: Optimizing blade shape, motor efficiency, and drive type can reduce energy consumption and operating costs.
- Space Constraints: The physical size and shape of the fan must fit within the installation area, sometimes necessitating custom housing designs.
Custom squirrel cage fans offer a range of benefits that make them preferable in many applications:
- High Efficiency: They can move large volumes of air with relatively low energy consumption, especially when designed with backward-curved blades.
- Compact Design: Despite their capacity, these fans have a small footprint, making them suitable for installations with limited space.
- Durability and Reliability: Constructed from robust materials, they are capable of withstanding harsh environments, including high temperatures, dust, and corrosive atmospheres.
- Quiet Operation: The aerodynamic design of blades and housings reduces noise, which is essential in commercial and residential settings.
- Adjustable Airflow: Customization allows precise control over airflow volume and pressure, adapting the fan to specific operational needs.
- Effective Against Static Pressure: They maintain performance in duct systems with significant resistance, unlike axial fans which lose efficiency under such conditions.
- Low Maintenance: Direct-driven designs and quality materials reduce wear and tear, lowering maintenance frequency and costs.
Custom squirrel cage fans are versatile and find use across many industries and applications, including:
- HVAC Systems: They are widely used in heating, ventilation, and air conditioning systems to circulate air efficiently in buildings.
- Industrial Ventilation: Factories and plants use these fans for dust collection, fume extraction, and cooling of machinery.
- Electronics Cooling: Compact squirrel cage fans provide targeted airflow for cooling sensitive electronic components and systems.
- Clean Rooms and Laboratories: Their ability to maintain high airflow and pressure makes them ideal for controlled environments requiring precise air quality.
- Agricultural Ventilation: They help ventilate greenhouses, livestock buildings, and drying systems to maintain optimal environmental conditions.
- Commercial Kitchens: Used in exhaust systems to remove smoke, odors, and heat.
- Transportation: Employed in HVAC systems of trains, buses, and ships for effective air circulation.
Proper maintenance ensures reliable operation and extends the life of custom squirrel cage fans. Key maintenance tasks include:
- Regular Cleaning: Dust and debris can accumulate on blades and housing, reducing efficiency and increasing noise. Periodic cleaning is essential.
- Lubrication: Bearings and moving parts require lubrication according to manufacturer recommendations to prevent wear.
- Inspection of Belts and Pulleys: For belt-driven fans, belts should be checked for wear and tension adjusted to avoid slippage.
- Motor Checks: Monitoring motor temperature and electrical connections helps prevent failures.
- Vibration Analysis: Excessive vibration can indicate imbalance or mechanical issues that need correction.
- Noise Monitoring: Unusual noises may signal bearing failure or blade damage.
Troubleshooting common problems involves identifying symptoms such as reduced airflow, increased noise, or motor overheating and addressing the underlying causes promptly.
With growing emphasis on energy conservation and environmental responsibility, custom squirrel cage fans are often designed with energy efficiency in mind. Advances in motor technology, such as variable frequency drives (VFDs), allow precise control of fan speed to match airflow demands, reducing energy consumption significantly.
Materials and coatings that resist corrosion and wear extend the fan's lifespan, reducing waste and replacement frequency. Additionally, quieter operation reduces noise pollution, contributing to a better environment in urban and workplace settings.
A custom squirrel cage fan is a versatile and efficient centrifugal fan designed to move air by utilizing centrifugal force generated by a rotating impeller with curved blades. Its unique design allows it to operate effectively against static pressure, making it ideal for a variety of industrial and commercial ventilation applications. Customization options enable optimization for specific airflow, pressure, noise, and environmental conditions. With advantages like energy efficiency, durability, quiet operation, and adaptability, custom squirrel cage fans remain an essential component in modern air handling and ventilation systems. Proper design, maintenance, and operation ensure these fans deliver reliable performance and contribute to energy savings and environmental sustainability.
A squirrel cage fan moves air radially outward using centrifugal force, allowing it to work effectively against static pressure in ductwork. In contrast, axial fans move air parallel to the axis and are less effective against back pressure.
Yes, especially those with backward-curved blades which are self-cleaning and designed to handle dusty and harsh conditions without performance loss.
The fan housing (scroll or volute) directs the air expelled radially by the impeller toward a specific outlet, controlling the airflow direction and velocity.
Direct-driven fans have higher efficiency, lower maintenance, and quieter operation, while belt-driven fans offer flexibility in motor placement and easier speed adjustments.
Blade curvature and shape influence airflow volume, pressure capability, noise levels, and energy consumption. Forward-curved blades suit low pressure/high volume, backward-curved blades suit higher pressure and efficiency, and straight blades offer a balance.
