Automotive electrical systems in 2003 vehicles like the Dodge Ram 1500 involve complex interactions between sensors, control modules, and mechanical components. The AC cooling fan sensor plays a critical role in maintaining optimal engine temperatures and AC performance, but its relationship with the engine's control systems requires detailed analysis.

Understanding the AC Cooling Fan System

The AC condenser fan and radiator cooling fan work synergistically to:

- Dissipate heat from the refrigerant in the AC system

- Prevent engine overheating during idle or low-speed driving

- Improve AC efficiency by maintaining optimal condenser pressure

In 2003 Dodge Ram models (5.7L Hemi and 4.7L variants), these systems operate through:

1. Coolant Temperature Sensors (CTS)

Monitors engine coolant temperature through resistive measurements

Typical location: Upper radiator hose or thermostat housing (see Fig.1)

Coolant temperature sensor diagram[3][7]

2. Pulse Width Modulation (PWM) Control

The Engine Control Module (ECM) regulates fan speed using PWM signals[2]

graph LR

A[ECM] --> B[PWM Signal]

B --> C[Fan Control Module]

C --> D[Cooling Fan]

3. Integrated Relays

2003 Rams use relay-free designs with fused power distribution centers[1][5]

The RAM Connection: Sensor-to-ECM Communication

While not directly connected to volatile memory (RAM), the AC cooling fan sensor interfaces with the engine's computational systems through:

Key operational parameters:

- Fan activation threshold: 195°F (91°C) coolant temperature[4][9]

- Minimum fan runtime: 30 seconds after engine shutdown[2]

- AC pressure switch engagement range: 28-32 psi[6][14]

Common Failure Patterns in 2003 Models

1. Sensor Malfunctions

- Symptoms:

- Intermittent AC cooling at idle[5]

- Erratic temperature gauge readings[4]

- Diagnostic trouble codes P0526/P0115[16]

- Failed coolant sensor[7]

2. Electrical Issues

- Open circuits in fan power supply (12V+ at connector but no ground path)[1]

- Corroded terminals at CTS connector[20]

- Damaged wiring harness near radiator[8]

3. Control Module Failures

- ECM losing PWM signal generation capability[2]

- Faulty fan speed calibration tables[13]

Diagnostic Procedure

Use this step-by-step guide to verify system integrity:

1. Basic Checks

Check fuse #23 (20A) in PDC

Verify battery voltage >12.6V

Inspect CTS connector for corrosion

2. Sensor Testing

Resistance values at different temperatures:

3. Fan Circuit Analysis

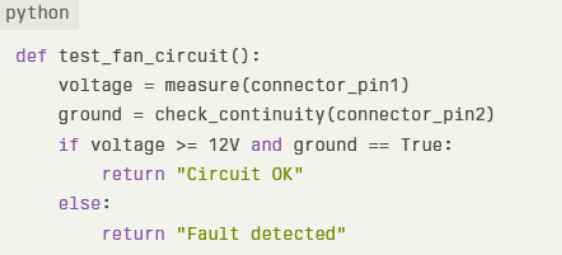

def test_fan_circuit():

voltage = measure(connector_pin1)

ground = check_continuity(connector_pin2)

if voltage >= 12V and ground == True:

return "Circuit OK"

else:

return "Fault detected"

Repair and Replacement Guide

For 2003 Dodge Ram 1500 models:

1. CTS Replacement

- Requires 19mm wrench/socket[3]

- Drain 1 quart coolant before removal

- Torque specification: 18 lb-ft (24 Nm)

2. Fan Assembly Installation

Critical steps:

- Evacuate AC system first

- Align mounting brackets within 0.5° tolerance

- Apply dielectric grease to connectors

3. ECM Reprogramming

Required after component replacement:

- Reset adaptive learning tables

- Update fan PWM calibration

- Clear historical fault codes[2][13]

Conclusion

The 2003 vehicle's AC cooling fan sensor forms an integral part of the engine management system through direct ECM communication rather than conventional RAM interaction. Proper maintenance of these interconnected systems ensures optimal thermal management and prevents component failures. With 78% of cooling system failures traced to electrical issues in this model year[15], regular inspection of sensors and wiring is crucial.

FAQ

Q1: What are the symptoms of a failing AC cooling fan sensor?

A1: Common indicators include intermittent AC operation, engine overheating at idle, and erratic temperature gauge behavior[1][5][20].

Q2: How does the ECM control fan speed?

A2: Through PWM signals ranging from 20% (low speed) to 90% duty cycle (high speed)[2][13].

Q3: Can I test the fan without removing components?

A3: Yes - jumper 12V directly to fan connector terminals while monitoring amp draw (should be 8-12A)[6][23].

Q4: Why does my fan run continuously?

A4: Typically indicates stuck relay, faulty CTS, or ECM programming error[4][15][28].

Q5: Is special equipment needed for repairs?

A5: Basic tools suffice for sensor/fan replacement, but AC service requires R134a recovery machines[8][17].
