Mounted squirrel cage fans have become essential in modern HVAC systems, industrial ventilation, and commercial air handling. Their reputation for efficiency and quiet operation makes them a preferred choice across many applications. But how do mounted squirrel cage fans truly compare to other fan types when it comes to noise? This article explores the acoustic properties of mounted squirrel cage fans, their design features, and the factors influencing their noise output, while providing a detailed comparison with other fan technologies. For a more immersive understanding, practical video demonstrations and expert tips are included.

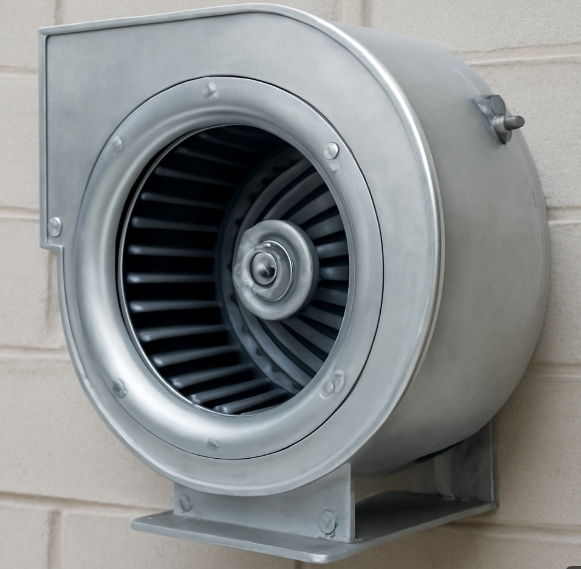

Mounted squirrel cage fans, often referred to as centrifugal or blower fans, are distinguished by their cylindrical impeller, which features multiple curved blades arranged around a central hub. The term “squirrel cage” comes from the resemblance of the impeller to an exercise wheel commonly used by small animals. These fans are widely used in HVAC systems, industrial ventilation, air purification, and automotive applications because they can move large volumes of air with high efficiency and reliability.
The heart of a mounted squirrel cage fan is the impeller. This component can have forward-curved, backward-curved, or straight blades. The impeller sits inside a scroll-shaped housing, also known as a volute, which directs airflow efficiently from intake to outlet. As the impeller rotates, air is drawn into the center and expelled radially outward by centrifugal force, creating a steady, high-volume airflow.
Mounted squirrel cage fans typically use either direct-driven or belt-driven systems. Direct-driven fans have the motor shaft directly connected to the impeller, resulting in lower maintenance and quieter operation. Belt-driven models allow for flexible motor placement and speed adjustments, but may introduce more mechanical noise, especially in larger industrial units.
These fans can be mounted in various orientations—horizontally or vertically—depending on the application. Proper mounting is crucial for optimal performance and minimal noise, as improper installation can lead to vibration and increased sound levels.
Mounted squirrel cage fans are renowned for their relatively low noise output, especially when compared to other industrial fans. This quietness is primarily due to several design features:
- Aerodynamic blade design minimizes turbulence, resulting in smoother airflow and less noise.
- The enclosed housing contains and directs airflow, reducing sound leakage and preventing erratic air movement that can cause noise.
- Lower operating speeds further reduce noise, as these fans often run at lower rotational velocities than axial fans.
The primary sources of noise in mounted squirrel cage fans include:
- Blade passing frequency, which is a tonal noise that increases with flow rate and is linked to the interaction between the rotating blades and the volute tongue.
- Mechanical vibration, which can result from poor mounting or worn bearings. These issues are typically manageable with proper installation and maintenance.
Double outlet squirrel cage fans, which feature two volute tongues, tend to produce higher tonal noise compared to single outlet designs. This is due to stronger jet and wake flows and larger pressure fluctuation zones. However, double outlet fans also deliver higher airflow rates, making them suitable for applications where noise is less of a concern and high volume is needed.
To understand how mounted squirrel cage fans compare acoustically, it's helpful to look at other common fan technologies:
| Fan Type | Typical Noise Level | Main Noise Sources | Key Features |
|---|---|---|---|
| Mounted Squirrel Cage | Low to Moderate | Blade passing, minor hum | High volume, efficient, compact, quiet |
| Axial Fans | Moderate to High | Blade turbulence, motor | High speed, direct airflow, noisier |
| Propeller Fans | High | Blade turbulence, vibration | Simple design, high speed, loud |
| Backward-Curved Centrifugal | Moderate | Blade passing, airflow | Higher pressure, more efficient, moderate |
| Inline Duct Fans | Moderate | Motor, airflow | Space-saving, moderate noise |
Key Takeaways:
- Mounted squirrel cage fans are generally quieter than axial and propeller fans due to their aerodynamic design and lower speeds.
- Forward-curved squirrel cage fans are especially quiet and are preferred in environments where noise reduction is a priority, such as offices and residential buildings.
- Backward-curved centrifugal fans may be slightly noisier but offer higher efficiency for high-pressure applications.
Several factors influence the noise output of mounted squirrel cage fans:
- Blade design: Forward-curved blades are quieter but less efficient at high pressures, while backward-curved blades handle higher pressures but may generate more noise.
- Impeller-housing clearance: Tighter clearances improve efficiency but can increase noise; optimal design balances both.
- Mounting and installation: Secure mounting reduces vibration and resonance, which are key contributors to noise.
- Maintenance: Dust buildup, worn bearings, or loose components can raise noise levels. Regular cleaning and inspection are essential.
- Operating conditions: Running the fan at higher speeds or against higher resistance (static pressure) can increase tonal noise, especially at the blade passing frequency.
- HVAC systems: For air circulation, heating, and cooling in residential and commercial buildings.
- Industrial ventilation: For fume extraction, dust control, and maintaining safe work environments.
- Electronics cooling: In servers, amplifiers, and sensitive equipment requiring steady airflow.
- Automotive: In vehicle HVAC systems and engine cooling.
- Ensure the fan is mounted securely to a stable surface to minimize vibration.
- Use rubber isolators or mounts to absorb mechanical vibrations.
- Maintain proper clearance around the fan for optimal airflow and noise reduction.
- Regularly inspect and clean the fan and filters to prevent dust buildup and airflow restriction.
- Follow manufacturer guidelines for orientation and wiring to ensure correct airflow direction and efficiency.
Mounted squirrel cage fans are among the quietest and most efficient fan types available for HVAC, industrial, and commercial applications. Their aerodynamic impeller design, enclosed housing, and lower operating speeds contribute to their low noise output, making them ideal for environments where quiet operation is essential. While double outlet designs can be slightly noisier due to increased tonal noise, the overall noise level remains lower than that of axial or propeller fans. Proper installation, maintenance, and selection of the right impeller type are key to maximizing performance and minimizing noise.
Mounted squirrel cage fans are quieter because their curved blades and enclosed housing minimize turbulence and contain airflow, reducing noise generation compared to open-bladed axial or propeller fans.
Yes, these fans are commonly used in residential HVAC systems due to their quiet operation, efficiency, and ability to move large air volumes.
Proper mounting—either horizontally or vertically—ensures smooth operation and minimizes vibration. Incorrect mounting can lead to increased noise and reduced efficiency.
The primary sources are blade passing frequency (tonal noise), mechanical vibration, and airflow turbulence. Proper design and maintenance help keep these noises to a minimum.
Ensure secure mounting, use vibration isolators, maintain clean filters and fan components, and operate the fan within the recommended speed and pressure range for your application.
