In the world of modern engineering and HVAC (Heating, Ventilation, and Air Conditioning) systems, the need for efficient, reliable, and quiet air movement is greater than ever. High flo squirrel cage fans have become the preferred choice for many applications, ranging from industrial manufacturing to residential climate control. This article explores how high flo squirrel cage fans improve airflow efficiency, examining their design, operational principles, advantages, and practical applications. In addition, it addresses common questions about these fans and provides a comprehensive understanding of their impact on airflow management.

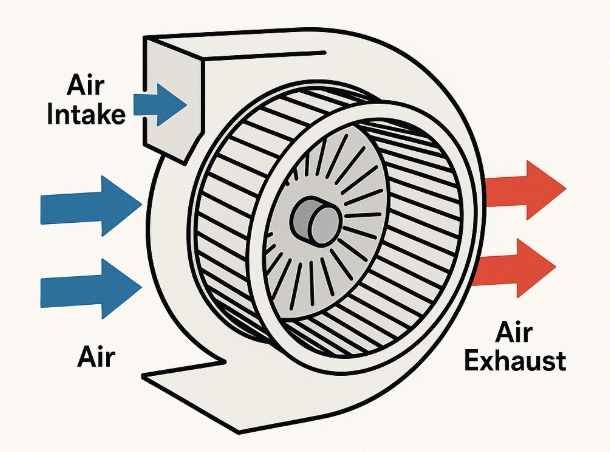

High flo squirrel cage fans, also known as centrifugal or blower fans, are mechanical fans characterized by their cylindrical impeller, which resembles a hamster wheel or “squirrel cage.” Unlike axial fans that move air parallel to the axis, squirrel cage fans draw air into the center of the impeller and expel it radially outward. This unique design enables them to generate high static pressure and deliver consistent, powerful airflow, making them ideal for environments where efficient air movement is crucial.
The impeller is the heart of the high flo squirrel cage fan. Its cylindrical shape and curved blades are engineered to maximize the conversion of rotational energy into airflow. As the impeller spins, it creates centrifugal force, drawing air in from the center and accelerating it outward. The curvature, angle, and number of blades are carefully optimized to reduce turbulence and noise, while increasing the volume and pressure of the airflow.
The housing, or casing, of a squirrel cage fan is designed to guide the airflow efficiently from the impeller to the outlet. A well-designed housing minimizes turbulence and prevents air from escaping prematurely, ensuring that the energy generated by the impeller is effectively used to move air where it is needed. This containment and direction of airflow are key contributors to the overall efficiency of the fan.
High flo squirrel cage fans rely on robust electric motors, which can be single-phase for smaller applications or three-phase for industrial uses. These motors are chosen for their reliability and efficiency. Bearings play a crucial role by supporting the impeller shaft, reducing friction, and enabling smooth rotation. Proper lubrication and maintenance of bearings are essential for maintaining peak efficiency and longevity.
The centrifugal action of the impeller is the primary driver of airflow efficiency in squirrel cage fans. By accelerating air radially outward, these fans can generate higher static pressures than axial fans, making them effective at moving air through ductwork, filters, and other resistance points commonly found in HVAC and industrial systems. This ability to overcome resistance ensures that air is distributed evenly and efficiently throughout the environment.
The blade design of high flo squirrel cage fans is optimized for maximum efficiency. Forward-curved, backward-curved, or straight blades can be used, each offering different benefits in terms of airflow volume, pressure, and noise characteristics. Multi-blade configurations increase the surface area, allowing the fan to impart greater force to the air, further enhancing efficiency.
A key advantage of the squirrel cage design is its ability to minimize turbulence within the airflow path. The smooth, continuous motion of the impeller, combined with a well-designed housing, results in quieter operation compared to many other fan types. This reduction in turbulence not only lowers noise levels but also ensures that more of the energy input is converted into useful airflow, rather than being lost as heat or vibration.
High flo squirrel cage fans are renowned for their energy efficiency. Their design allows them to move large volumes of air with relatively low power consumption. The efficient conversion of electrical energy into kinetic energy means lower operational costs and reduced environmental impact. Many modern squirrel cage fans are equipped with variable frequency drives, allowing for precise control of speed and airflow, further optimizing energy use.
The ability of high flo squirrel cage fans to handle both high and low resistance environments makes them suitable for a wide range of applications. Whether used for general ventilation, fume extraction, cooling of electronics, or industrial process air movement, these fans deliver consistent performance and efficiency. Their compact design also allows for installation in space-constrained environments without sacrificing airflow capacity.
High flo squirrel cage fans are found in numerous settings due to their adaptability and efficiency:
- HVAC Systems: Distributing conditioned air throughout buildings, maintaining comfortable temperatures and humidity levels.
- Industrial Ventilation: Removing dust, fumes, and airborne contaminants from manufacturing environments.
- Electronics Cooling: Ensuring proper temperature regulation in sensitive equipment by providing steady airflow.
- Drying Processes: Accelerating the drying of products such as grains, timber, and painted surfaces by delivering controlled air streams.
- Environmental Chambers: Regulating humidity and temperature in controlled testing environments.
- Fume Extraction: Safely removing hazardous fumes in laboratories and industrial plants.
Proper maintenance is essential for sustaining the efficiency of high flo squirrel cage fans. Regular cleaning of the impeller and air inlet prevents dust and debris buildup, which can obstruct airflow and reduce efficiency. Checking and replacing filters, inspecting motor and electrical components, monitoring vibration levels, and ensuring proper lubrication of bearings are all critical steps in maintaining optimal performance.
When compared to axial fans and other blower designs, high flo squirrel cage fans offer several distinct advantages:
- Higher Static Pressure Capability: Ideal for ducted systems and environments with resistance.
- Quieter Operation: Reduced turbulence leads to lower noise levels.
- Greater Energy Efficiency: Lower power consumption for equivalent airflow.
- Compact Form Factor: Fits into tight spaces without compromising performance.
- Durability: Fewer moving parts and robust construction lead to longer service life.
High flo squirrel cage fans represent a pinnacle of engineering in the world of air movement technology. Their unique design harnesses centrifugal force to deliver powerful, efficient, and quiet airflow, making them indispensable in a wide array of applications. From HVAC systems to industrial manufacturing, their ability to handle high static pressures, operate quietly, and consume less energy sets them apart from other fan types. Proper maintenance ensures their longevity and sustained performance, providing reliable airflow solutions for years to come. As energy efficiency and indoor air quality become ever more critical, high flo squirrel cage fans will continue to play a vital role in meeting these demands.
High flo squirrel cage fans use centrifugal force to move air, allowing them to generate higher static pressure and deliver consistent airflow even in ducted or high-resistance environments. Their optimized blade design and housing minimize turbulence and energy loss, resulting in greater overall efficiency.
Yes, these fans are commonly used in residential HVAC systems due to their quiet operation, compact design, and ability to efficiently distribute conditioned air throughout living spaces.
Regular maintenance, including cleaning the impeller and air inlet, checking filters, inspecting bearings, and monitoring motor performance, should be performed at least quarterly or according to manufacturer recommendations to ensure optimal efficiency and longevity.
Many high flo squirrel cage fans are constructed from heat-resistant or corrosion-resistant materials, making them suitable for demanding industrial applications. Always check the specifications to ensure compatibility with your specific environment.
Key factors include required airflow volume, static pressure, noise level, available space, energy efficiency, and the specific application environment. Consulting with a ventilation specialist or referring to manufacturer performance charts can help ensure the right fan is chosen for your needs.
