As CPUs become increasingly powerful, effective heat management is more important than ever for maintaining performance, stability, and longevity. While traditional air cooling has long been the standard, water cooling—especially all-in-one (AIO) liquid coolers—has become popular for its superior efficiency, quieter operation, and visual appeal. However, integrating a water cooling system introduces new considerations, particularly in how these coolers connect to your motherboard. One of the most common sources of confusion is the water cooling CPU fan header: what it is, how it differs from other headers, and how to use it correctly.
This comprehensive guide will demystify the water cooling CPU fan header, explain its role in modern PC builds, and provide practical advice for both beginners and experienced enthusiasts.
A CPU fan header is a dedicated connector on a motherboard designed to supply power and control signals to the primary cooling fan for the CPU. Traditionally, this header is labeled CPU_FAN and is essential for air-cooled systems, where a heatsink and fan assembly sits directly atop the processor.
Key characteristics of the CPU fan header include:
- Supplying 12V DC power, typically via a 4-pin PWM (Pulse Width Modulation) connector.
- Allowing the motherboard to monitor fan speed (RPM) and adjust it automatically based on CPU temperature.
- Including safety features: most systems will not boot or will issue a warning if no fan is detected on the CPU_FAN header.
Air cooling uses a heatsink and one or more fans to dissipate heat from the CPU. The fan(s) are connected directly to the CPU_FAN header, and their speed is modulated according to the CPU's temperature.
Water cooling, especially AIO (All-In-One) solutions, introduces a more complex system:
- A water block attaches to the CPU, transferring heat to a liquid coolant.
- A pump circulates the coolant through tubes to a radiator.
- Fans attached to the radiator dissipate the heat from the coolant into the air.
This setup requires powering and controlling both the pump and the radiator fans—which is where specialized headers come into play.
Modern motherboards typically provide several headers for cooling solutions. The most relevant for water cooling are:
| Header | Typical Use | Power/Control Features | Boot Impact |
|---|---|---|---|
| CPU_FAN | Primary CPU fan or radiator fans | PWM/DC, speed monitoring, failsafe required | System may not boot if empty |
| CPU_OPT | Secondary CPU fan, pump, or extra radiator fan | PWM/DC, speed monitoring, no failsafe | Optional |
| AIO_PUMP | Dedicated AIO water cooling pump | Often constant 12V, sometimes PWM, speed monitoring | Optional |
| SYS_FAN/CHA_FAN | Case/chassis fans | PWM/DC, speed monitoring | Optional |
- Purpose: Main cooling fan for the CPU, or radiator fans in a water cooling setup.
- Features: Monitored by the BIOS/UEFI for RPM and presence; if not detected, system may refuse to boot or issue a warning.
- Connection: In water cooling, the radiator fans are typically connected here.
- Purpose: Secondary connection for additional fans or the pump in dual-fan or water-cooled setups.
- Features: Similar to CPU_FAN but does not trigger boot errors if unpopulated.
- Connection: Can be used for a second set of fans or the pump if AIO_PUMP is unavailable.
- Purpose: Specifically designed to power and control the pump in an AIO liquid cooler.
- Features: Usually provides a constant 12V (for pumps that run at full speed), but some motherboards allow PWM control for adjustable pump speed.
- Connection: The pump's power cable should ideally be connected here.
Not all motherboards have a dedicated AIO_PUMP header. In such cases, the pump can be connected to CPU_OPT or even a SYS_FAN header, provided it supplies sufficient power and supports the necessary control mode.

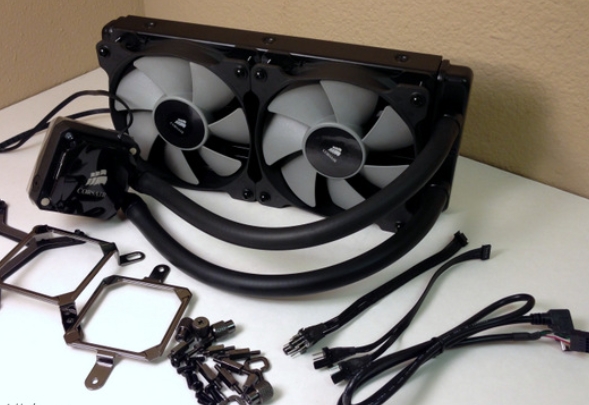

A standard AIO cooler will have:
- Pump Power Cable: Connects to AIO_PUMP or CPU_OPT (or SYS_FAN if necessary).
- Radiator Fan(s): Connect to CPU_FAN (directly or via a splitter/hub).
- Optional RGB/LED Cables: Connect to dedicated RGB headers or controller.

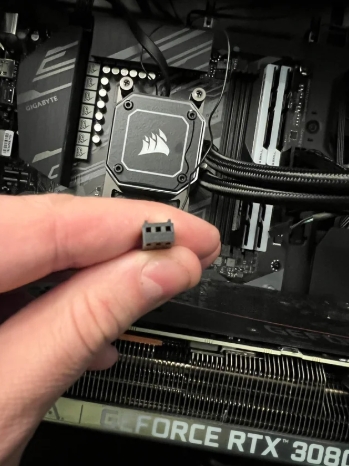

Step-by-step connection:
1. Identify the headers: Locate CPU_FAN, CPU_OPT, and AIO_PUMP on your motherboard. Refer to your motherboard manual for exact locations and pinouts.

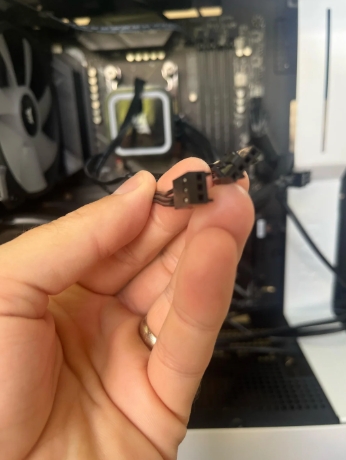

2. Connect the radiator fans: Plug them into the CPU_FAN header, using a splitter if you have multiple fans.
3. Connect the pump: Plug it into the AIO_PUMP header. If unavailable, use CPU_OPT or a SYS_FAN header set to run at full speed.
4. Secure all cables: Use cable ties or channels to keep the build tidy and airflow unobstructed.
For custom loops, the principle is the same: the pump requires a steady power supply (preferably via AIO_PUMP or a dedicated power connector), and fans should be connected to headers that allow speed control based on coolant or CPU temperature.
Modern motherboards allow fine-tuning of fan and pump speeds via BIOS/UEFI or proprietary software. Key points:
- Fan Curves: Adjust radiator fan speeds based on CPU temperature for optimal noise and cooling balance.
- Pump Control: Some pumps benefit from variable speeds (quieter at idle, faster under load), while others should run at full speed for reliability.
- Monitoring: Use BIOS or software to monitor RPMs and set alerts for failures.
Incorrect configuration can lead to higher noise, reduced cooling efficiency, or even hardware damage due to overheating.
- Connecting the Pump to CPU_FAN: This may cause boot errors if the motherboard expects a fan RPM signal and the pump provides none or a low value.
- Leaving CPU_FAN Empty: Always connect at least one cooling device to CPU_FAN to avoid boot issues.
- Underpowering the Pump: Ensure the header used can supply enough current for the pump.
- Ignoring BIOS Settings: Failing to set the correct control mode (PWM vs. DC) can result in non-functional or noisy pumps/fans.
- Cable Confusion: Double-check connections; mixing up fan and pump headers can lead to poor performance or damage.
While all fan headers supply power and control signals, only CPU_FAN is mandatory for system boot. AIO_PUMP and CPU_OPT provide flexibility for advanced cooling setups, allowing users to optimize their systems for performance, noise, and reliability.
Key differences:
- CPU_FAN: Mandatory, monitored for system protection.
- CPU_OPT/AIO_PUMP: Optional, used for additional fans or pumps, not required for boot.
- Use splitters or hubs for multiple radiator fans to minimize clutter.
- Route cables behind the motherboard tray or through grommets for a clean look.
- Label cables during installation to avoid confusion during future upgrades or maintenance.
A water cooling CPU fan header refers to the specific motherboard connectors—primarily CPU_FAN, CPU_OPT, and AIO_PUMP—used to power and control the fans and pump in a water-cooled PC. Understanding the function and correct use of these headers is crucial for ensuring effective cooling, system stability, and ease of maintenance. As water cooling continues to gain popularity among PC enthusiasts, mastering these basics will help you build quieter, cooler, and more visually striking systems.
If you connect your AIO pump to the CPU_FAN header, the system will recognize it as the primary cooling device. This is acceptable if the pump provides a valid RPM signal, but some pumps do not, which may cause boot errors or warnings. Ideally, radiator fans should be connected to CPU_FAN, and the pump to AIO_PUMP or CPU_OPT.
It is not recommended to connect both the pump and radiator fans to the same header, as they have different power and control requirements. Use separate headers for each to ensure proper operation and control.
If your motherboard lacks an AIO_PUMP header, connect the pump to CPU_OPT or a SYS_FAN header that can provide constant 12V power. Ensure the header supports the pump's power needs and configure it in BIOS to run at full speed if required.
Most AIO pumps are designed to run at full speed for maximum reliability and cooling. However, some users may prefer to reduce pump speed for quieter operation, provided the cooling remains adequate. Always monitor temperatures to ensure safe operation.
CPU_FAN is the primary header for CPU cooling and is required for system boot. CPU_OPT is an optional secondary header for additional fans or pumps and does not affect booting if left unconnected. Both can provide PWM or DC control, but only CPU_FAN is monitored for failsafe operation.
