Muffin fans are an essential yet often overlooked component in the world of cooling and ventilation. Whether you are a technology enthusiast, a home brewer, or an industrial designer, you have likely encountered these compact, square-shaped fans in various devices and systems. Despite their whimsical name, muffin fans serve a serious purpose: maintaining optimal temperatures and airflow in confined spaces. This article delves deep into what muffin fans are, how they work, their applications, benefits, and how they compare to other types of fans. We will also explore installation tips, maintenance advice, and answer some of the most frequently asked questions about muffin fans.

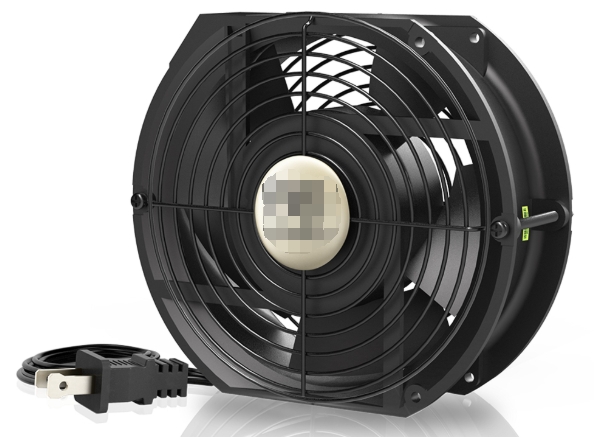

A muffin fan is a small, axial fan characterized by its square or rectangular frame and compact design. Unlike larger, round fans, muffin fans are designed to fit into tight spaces and are commonly used in electronic devices, home appliances, and industrial equipment. The term "muffin fan" originated from the resemblance of early fan models to muffin tins, with their metallic, cup-like rotors and housings. Over time, the name stuck, and today it refers to a broad range of small, square fans used for cooling and ventilation.
Muffin fans operate on the principle of axial airflow. This means the fan blades rotate around a central axis, drawing air in from one side and expelling it out the other, parallel to the axis of rotation. The blades are typically curved to maximize airflow and minimize noise. As the blades spin, they create a pressure difference that moves air efficiently through the fan's frame. This airflow is crucial for dissipating heat, maintaining stable temperatures, and ensuring the longevity of sensitive components.
A typical muffin fan consists of several key components:
- Frame: Usually made of durable plastic or metal, the frame provides structural support and mounting points.
- Impeller (Fan Blades): The rotating blades are engineered for maximum airflow and minimal turbulence.
- Motor: The motor powers the impeller, and can be either AC or DC depending on the fan model.
- Bearings: High-quality bearings, such as ball bearings, reduce friction and extend the fan's lifespan.
- Power Connector: Fans may use various connectors, including standard plugs, wire leads, or terminal blocks.
- Mounting Hardware: Many muffin fans come with brackets, screws, or clips for easy installation.
One of the most common uses for muffin fans is in the cooling of electronic devices. Computers, servers, and networking equipment generate significant heat during operation. Muffin fans are strategically placed inside these devices to direct air over critical components like CPUs, GPUs, and power supplies. By maintaining a steady airflow, muffin fans prevent overheating, reduce the risk of hardware failure, and ensure optimal performance.
Muffin fans are frequently found in home appliances such as refrigerators, air purifiers, and dehumidifiers. In these applications, the fans help circulate air, maintain consistent temperatures, and improve energy efficiency. In heating, ventilation, and air conditioning (HVAC) systems, muffin fans are used to ventilate small enclosures, cabinets, and even specific rooms, ensuring that air is distributed evenly and stale air is expelled.
Home brewers and beer enthusiasts often use muffin fans in kegerators and draft beer systems. Inside a kegerator, cold air tends to settle at the bottom, leading to uneven cooling and foamy pours. By installing a muffin fan, users can circulate the air, eliminate temperature stratification, and achieve more consistent cooling throughout the unit. This simple addition can dramatically improve the quality and taste of draft beer.
In industrial settings, muffin fans are used to cool control panels, electrical enclosures, and machinery. Their compact size and standardized mounting make them ideal for custom installations. DIY enthusiasts also use muffin fans in a variety of projects, such as cooling home theater cabinets, ventilating 3D printer enclosures, or even creating homemade air purifiers.
Muffin fans are designed to fit into small, confined spaces where larger fans would be impractical. Their square or rectangular frames make them easy to mount in a variety of orientations, and their lightweight construction allows for flexible installation.
Despite their small size, muffin fans are engineered to move a significant volume of air. The combination of curved blades and powerful motors ensures efficient cooling and ventilation, even in challenging environments.
Many muffin fans use high-quality ball bearings, which reduce friction and wear over time. This results in quieter operation and a longer service life, making muffin fans a cost-effective choice for both commercial and residential applications.
Muffin fans are available in a wide range of sizes, voltages, and configurations. Some models include speed controllers, allowing users to adjust airflow and noise levels to suit their needs. Others come with specialized mounting brackets, dust filters, or even temperature sensors for automatic operation.
Compared to other cooling and ventilation options, muffin fans are relatively inexpensive. Their widespread availability and standardized sizes make them easy to source and replace, further reducing long-term maintenance costs.
Muffin fans come in a variety of sizes, with 80mm, 92mm, and 120mm square frames being among the most common. The thickness of the fan can also vary, typically ranging from 25mm to 38mm. The size you choose will depend on the available space and the required airflow.
The performance of a muffin fan is often measured in cubic feet per minute (CFM), which indicates how much air the fan can move. Typical muffin fans can deliver anywhere from 20 to over 100 CFM, depending on their size and motor power. Fan speed is measured in revolutions per minute (RPM), with higher speeds generally producing more airflow but also more noise.
Noise is an important consideration, especially in environments where quiet operation is essential. Muffin fans are designed to minimize noise through the use of balanced blades, high-quality bearings, and vibration-dampening mounts. Some models are specifically marketed as "silent" or "low-noise" fans, making them ideal for use in bedrooms, offices, or home theaters.
Muffin fans are available in both AC and DC versions. DC fans are commonly used in electronics and computer systems, typically operating at 5V, 12V, or 24V. AC fans are more common in industrial and household applications, with standard voltages including 110V and 220V. Always check the power requirements before installation to ensure compatibility with your system.
Some advanced muffin fans include features such as:
- Speed Controllers: Allow users to manually adjust the fan speed for optimal balance between airflow and noise.
- Temperature Sensors: Automatically adjust fan speed based on ambient temperature.
- Dust Filters: Prevent dust and debris from entering sensitive equipment.
- Alarm Outputs: Notify users if the fan stops working or falls below a certain speed.
| Feature | Muffin Fan | Traditional Axial Fan | Centrifugal Fan |
|---|---|---|---|
| Shape | Square/rectangular frame | Round frame | Round with spiral casing |
| Airflow Direction | Axial (parallel to axis) | Axial (parallel to axis) | Radial (perpendicular to axis) |
| Typical Applications | Electronics, enclosures, HVAC | General ventilation, cooling | High-pressure ducting, HVAC |
| Noise Level | Low to moderate | Varies | Moderate to high |
| Installation Flexibility | High, multiple mounting options | Moderate | Usually fixed installations |
| Size | Compact | Varies (often larger) | Larger |
While muffin fans and traditional axial fans share similar operating principles, muffin fans are specifically designed for compact installations and tend to be quieter and more efficient in small spaces. Centrifugal fans, on the other hand, are better suited for applications requiring high static pressure and long duct runs, but they are generally larger and noisier.
When selecting a muffin fan, consider the following factors:
- Available Space: Measure the area where the fan will be installed to ensure a proper fit.
- Airflow Requirements: Determine the necessary CFM to achieve adequate cooling or ventilation.
- Noise Sensitivity: Choose a low-noise model if the fan will be used in a quiet environment.
- Power Source: Match the fan's voltage and current requirements to your power supply.
- Mounting Options: Look for fans with compatible brackets or mounting holes for easy installation.
1. Position the Fan: Place the fan in a location that maximizes airflow over the components or area you want to cool.
2. Secure the Fan: Use screws, brackets, or clips to mount the fan securely to the frame or enclosure.
3. Connect Power: Attach the fan to the appropriate power source, ensuring correct polarity for DC fans.
4. Test Operation: Turn on the fan and verify that it is spinning freely and moving air as intended.
5. Adjust Settings: If your fan has a speed controller, set it to the desired airflow and noise level.
- Clean Regularly: Dust and debris can accumulate on the blades and reduce efficiency. Clean the fan periodically with compressed air or a soft brush.
- Check Bearings: Listen for unusual noises, which may indicate worn bearings. Replace the fan if necessary.
- Inspect Wiring: Ensure all electrical connections are secure and free from corrosion.
- Replace Filters: If your fan has a dust filter, clean or replace it as needed to maintain optimal airflow.
Muffin fans may be small, but their impact on cooling and ventilation is significant. From keeping your computer running smoothly to ensuring your draft beer is perfectly chilled, these versatile fans are indispensable in a wide range of applications. Their compact size, efficient airflow, and customizable features make them a popular choice for both professionals and hobbyists. By understanding how muffin fans work, where they excel, and how to install and maintain them, you can make informed decisions that enhance the performance and longevity of your equipment.
A muffin fan is a small, square-shaped axial fan used primarily for cooling and ventilation in electronics, appliances, and industrial equipment. The name comes from the fan's resemblance to a muffin tin, with its metallic, cup-like rotor and housing.
Muffin fans are widely used in computers, servers, home appliances, HVAC systems, kegerators, and various industrial and DIY projects that require compact, efficient airflow.
Yes, multiple muffin fans can be wired to the same power source or controller. However, it is important to ensure that the total current draw does not exceed the capacity of the power supply or controller to avoid damage.
By circulating air inside a kegerator, muffin fans eliminate temperature stratification, ensuring that the entire unit is cooled evenly. This results in less foaming and better-tasting beer when poured.
Regular cleaning to remove dust and debris, checking for secure mounting and electrical connections, and replacing worn bearings or filters as needed will help maintain optimal performance and extend the life of your muffin fan.
