Muffin fans are essential components in electronics, industrial equipment, and household appliances. Their compact design, efficient airflow, and adaptability make them crucial for cooling and ventilation in a wide range of applications. This in-depth article explores what a muffin fan is, how it works, its key features, uses, and answers to frequently asked questions, providing a thorough understanding for engineers, hobbyists, and anyone interested in thermal management.

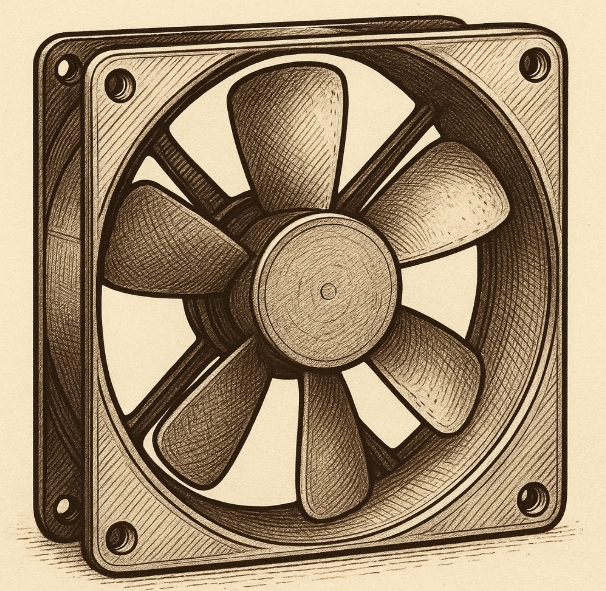

A muffin fan is a compact axial fan, typically encased in a square or rectangular housing, designed to move air efficiently through confined spaces. These fans are most commonly found in electronic enclosures, power supplies, amplifiers, HVAC systems, and a variety of industrial and consumer devices. Their primary role is to provide cooling and ventilation, preventing overheating and ensuring the reliable operation of sensitive components.
Muffin fans are recognized for their slim profile, standardized mounting dimensions, and the ability to deliver significant airflow relative to their size. They are available in a range of sizes, voltages, and airflow capacities to suit diverse requirements.
The term "muffin fan" has an interesting backstory. Some believe the name comes from the fan's resemblance to a muffin tin, especially when viewed from above with its round rotor and square housing. Others point out that "Muffin" was originally a brand name from one of the early manufacturers of slimline axial fans in the electronics industry. Over time, the term became generic, and today, almost all small, square axial fans are commonly referred to as muffin fans, regardless of the manufacturer.
At its core, a muffin fan operates as an axial fan. The mechanism is straightforward yet highly effective:
- Rotating Blades: The heart of the muffin fan is a set of curved blades attached to a rotating hub. When powered, the motor spins the blades, causing air to flow parallel to the axis of rotation.
- Motor: Most muffin fans use an electric motor—either AC or DC—to drive the blades. The motor's speed and power determine the fan's airflow and pressure capabilities.
- Airflow Generation: As the blades rotate, they impart energy to the air, creating a pressure difference that draws air in from one side and expels it out the other. This movement of air is essential for cooling and ventilation.
- Enclosure: The fan's square or rectangular housing helps direct airflow and provides mounting points for easy installation.
The efficiency of a muffin fan comes from the combination of its aerodynamic blade design and the optimized housing, which minimizes turbulence and maximizes airflow. The rotation of the blades imparts a swirling motion to the air, which enhances the cooling effect, especially when used in conjunction with heat sinks or fin arrays in electronic equipment.
Muffin fans are available in a variety of models, each tailored for specific needs. Some of the key features and specifications include:
- Size: Common sizes include 80mm, 92mm, 120mm, and 140mm square, with thicknesses typically ranging from 25mm to 38mm.
- Voltage: Available in AC (typically 110V or 220V) and DC (5V, 12V, 24V) versions to suit different power sources.
- Airflow: Measured in cubic feet per minute (CFM), with typical values ranging from 20 CFM to over 100 CFM depending on size and speed.
- Noise Level: Expressed in decibels (dBA), with quieter models designed for noise-sensitive environments.
- Power Consumption: Varies with size and speed, but muffin fans are generally energy-efficient.
- Bearing Type: Sleeve bearings for cost-effectiveness or ball bearings for longer life and higher reliability.
- Mounting Options: Standardized mounting holes for easy installation in enclosures or panels.
- Additional Features: Some models include speed controllers, thermal sensors, or integrated guards for safety.
Muffin fans are found in a wide range of applications due to their versatility and effectiveness:
- Electronics Cooling: Used in computers, servers, power supplies, amplifiers, and other electronic devices to prevent overheating.
- Industrial Equipment: Provide ventilation for control panels, motor drives, and machinery.
- HVAC Systems: Assist in air circulation and temperature regulation in heating, ventilation, and air conditioning units.
- Home Appliances: Found in air purifiers, dehumidifiers, and kitchen equipment.
- DIY Projects: Popular among hobbyists for custom cooling solutions, such as coffee bean coolers or small-scale ventilation systems.
- Compact Size: Fits easily into tight spaces.
- High Airflow: Delivers significant cooling relative to size.
- Versatility: Suitable for a wide range of voltages and applications.
- Easy Installation: Standardized mounting and wiring.
- Reliability: Long operational life, especially with ball bearings.
- Noise: High-speed models can generate noticeable noise.
- Limited Pressure: Not suitable for high static pressure applications.
- Dust Accumulation: Requires periodic cleaning to maintain performance.
Choosing the right muffin fan involves considering several factors:
- Airflow Requirements: Determine the CFM needed based on the heat load and enclosure size.
- Voltage Compatibility: Match the fan voltage to your power supply.
- Noise Constraints: Select low-noise models for quiet environments.
- Lifespan: Opt for ball bearing fans for continuous operation.
- Mounting Space: Ensure the fan fits the available space and mounting points.
- Special Features: Consider speed control, thermal sensors, or guards as needed.
Proper installation and maintenance are key to maximizing the performance and lifespan of muffin fans:
- Mount Securely: Use appropriate screws or brackets to minimize vibration.
- Ensure Unobstructed Airflow: Avoid blocking the intake or exhaust sides.
- Clean Regularly: Remove dust and debris from the blades and housing.
- Check Connections: Ensure electrical connections are secure and insulated.
- Monitor Performance: Listen for unusual noises or reduced airflow, which may indicate wear or blockage.
Muffin fans are indispensable components in modern electronics and industrial systems. Their compact design, efficient airflow, and adaptability make them ideal for a wide range of cooling and ventilation tasks. Understanding how a muffin fan works, its key features, and proper selection criteria ensures optimal performance and longevity for your applications. Whether you are an engineer, hobbyist, or simply curious about thermal management, the muffin fan stands out as a simple yet powerful solution.
A muffin fan is a specific type of axial fan, typically characterized by its compact, square or rectangular housing and standardized mounting dimensions. While all muffin fans are axial fans, not all axial fans are muffin fans. The term "muffin fan" often refers to those used in electronic enclosures and similar applications.
Yes, muffin fans are available in both AC and DC versions. It is important to choose a fan that matches your power supply's voltage and current specifications to ensure safe and reliable operation.
Consider the heat load, enclosure size, and required airflow (CFM). Manufacturers often provide guidelines or calculators to help you select the appropriate fan size and capacity based on your cooling needs.
Routine maintenance includes cleaning the blades and housing to remove dust, checking for secure mounting and electrical connections, and listening for unusual noises that may indicate bearing wear or obstruction.
Most muffin fans, especially those with ball bearings, are designed for continuous operation and have long lifespans. However, regular maintenance and choosing a fan rated for your application's demands will ensure the best performance and longevity.
