Squirrel cage fans in VW vehicles are crucial for maintaining a comfortable and safe driving environment. These fans, also known as blower motors, are responsible for circulating air through the heating, ventilation, and air conditioning (HVAC) system. When a VW squirrel cage fan becomes faulty, it can lead to a range of issues that affect both comfort and safety. This comprehensive guide explores the symptoms of a faulty VW squirrel cage fan, the underlying causes, maintenance tips, troubleshooting steps, and answers to common questions. By understanding the role and common problems associated with squirrel cage fans in VW vehicles, you can ensure your car's HVAC system operates efficiently and reliably.

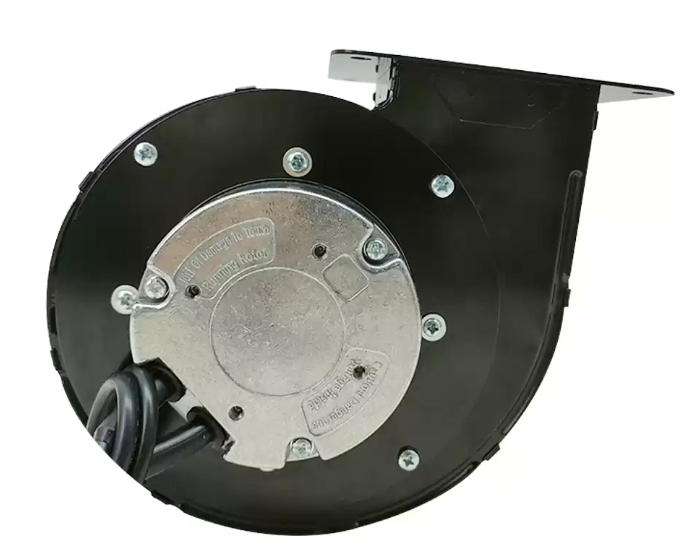

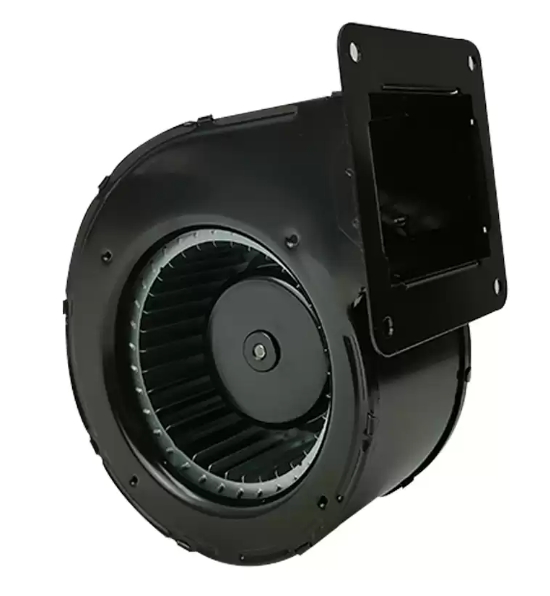

A squirrel cage fan, commonly found in VW vehicles, is a type of centrifugal fan that uses a rotating cylindrical assembly of blades (the "cage") to move air efficiently. This design is favored for its ability to generate high airflow with relatively low noise, making it ideal for automotive HVAC systems. The fan's unique structure allows it to draw in air from the environment or recirculate cabin air, pushing it through the heater core or evaporator and then into the vehicle's interior.
In VW vehicles, the squirrel cage fan is typically located behind the glove box or under the dashboard. Its primary function is to draw air from outside or recirculate cabin air, pushing it through the heater core or evaporator and then into the vehicle's interior. This process ensures effective heating, cooling, and defrosting, which are essential for both comfort and safety, especially in extreme weather conditions.
One of the most noticeable symptoms of a failing squirrel cage fan in a VW is reduced or absent airflow from the vents. Even when the fan speed is set to high, you may notice little to no air movement. This can make it difficult to heat or cool the cabin effectively, leading to discomfort during both hot summers and cold winters.
A healthy squirrel cage fan should operate quietly. If you begin to hear rattling, squealing, grinding, or buzzing noises when the fan is running, it often indicates a problem. These sounds can result from debris caught in the fan, worn bearings, or a misaligned fan cage. Persistent noise is a clear sign that the fan requires inspection and possibly repair or replacement.
Excessive vibration in the dashboard or interior trim when the fan is running is another sign of trouble. This can be caused by an unbalanced or damaged squirrel cage, loose mounting, or foreign objects interfering with the fan's rotation. Vibrations not only affect comfort but can also lead to further damage if left unaddressed.
A faulty VW squirrel cage fan may work sporadically or only at certain speed settings. Sometimes, the fan might only operate at its highest speed, or it may stop working altogether. This inconsistency can be due to electrical issues, a failing blower motor resistor, or worn-out fan components. Intermittent operation can make it difficult to maintain a comfortable cabin temperature.
If you notice a burning odor or see smoke coming from the vents, it's a serious warning sign. This can indicate that the fan motor is overheating, possibly due to excessive friction, electrical faults, or debris buildup. Immediate attention is required to prevent further damage or fire risk. Never ignore burning smells or visible smoke, as they can pose significant safety hazards.
A malfunctioning squirrel cage fan in a VW can compromise the effectiveness of the defroster. If the windshield remains foggy or icy despite activating the defrost function, the fan may not be pushing enough air through the system. This can reduce visibility and increase the risk of accidents, especially in cold or humid conditions.
In some cases, the fan may not start on its own but will begin spinning if manually turned. This points to a failing motor or a problem with the electrical connections between the motor and the fan cage. Manual intervention should not be necessary for normal operation and indicates a need for repair.
If the fan only operates at a single speed, regardless of the setting on the control panel, this could indicate a problem with the blower motor resistor or the fan speed control switch. This issue limits your ability to adjust airflow to your preference and can be particularly inconvenient during temperature extremes.
Sometimes, a faulty squirrel cage fan can cause the entire HVAC control system to become unresponsive. If adjusting the fan speed or temperature settings has no effect, the issue may be related to the fan motor or its associated electrical components.
Leaves, dust, and other debris can enter the HVAC system and become lodged in the squirrel cage fan. This not only causes noise and vibration but can also impede airflow and strain the motor. Regular cleaning and maintenance can help prevent debris buildup.
Over time, the bearings in the fan motor can wear out, leading to increased friction, noise, and eventual failure. The motor itself may also degrade due to age or lack of lubrication. Worn bearings are a common cause of squealing or grinding noises.
Faulty wiring, blown fuses, or a malfunctioning blower motor resistor can disrupt the operation of the squirrel cage fan. These issues often result in intermittent or complete loss of fan function. Electrical problems should be diagnosed and repaired by a qualified technician to ensure safety.
Water entering the blower motor area, often due to clogged cowl drains or damaged seals, can cause corrosion and electrical shorts, leading to fan failure. Moisture can also promote the growth of mold and mildew, which can affect air quality inside the vehicle.
Impacts, improper installation, or manufacturing defects can cause the squirrel cage to become unbalanced or damaged, resulting in noise, vibration, and reduced performance. Physical damage may require replacement of the entire fan assembly.
1. Check for Airflow: Turn on the HVAC system and cycle through all fan speeds. Note any lack of airflow or inconsistent operation.
2. Listen for Noises: Pay attention to any unusual sounds when the fan is running.
3. Feel for Vibrations: Place your hand on the dashboard or near the glove box to detect vibrations.
4. Inspect for Odors or Smoke: Be alert for any burning smells or visible smoke.
5. Manual Fan Test: If accessible, try spinning the fan manually to see if it starts running.
6. Check Electrical Components: Inspect fuses, wiring, and the blower motor resistor for signs of damage or wear.
7. Look for Debris: Remove the cabin air filter and inspect the fan area for leaves, dust, or foreign objects.
Modern VW vehicles may allow you to use onboard diagnostics (OBD) to check for HVAC-related error codes. A scan tool can help identify electrical faults or communication issues between the fan and the vehicle's control modules.
- Clean the fan blades and housing periodically to prevent dust and debris buildup.
- Replace the cabin air filter every few months to maintain optimal airflow.
- Inspect the air intake area for leaves and other debris, especially after autumn or storms.
- Lubricate the fan motor bearings as recommended by the manufacturer to reduce friction and wear.
- Use only the specified lubricant to avoid damaging the motor or bearings.
- Routinely inspect the fan, motor, and electrical connections for signs of damage or corrosion.
- Check for water ingress and ensure cowl drains are clear.
- Look for signs of rust or moisture around the blower motor area.
- Schedule annual maintenance with a qualified technician to ensure the HVAC system, including the squirrel cage fan, is in good working order.
- Have the entire HVAC system checked if you notice persistent issues with airflow, noise, or odors.
- If the fan is noisy, check for debris or worn bearings.
- If airflow is weak, inspect the cabin air filter and fan blades for blockages.
- If the fan only works on certain speeds, test the blower motor resistor.
- If the fan does not operate at all, check the fuse, wiring, and motor.
- Disconnect the vehicle's battery to prevent electrical shock.
- Remove the glove box or access panel to reach the fan.
- Unplug the electrical connector and remove mounting screws.
- Carefully extract the old fan and install the new one, ensuring proper alignment.
- Reconnect all components and test the system before reassembling the dashboard.
- Take photos during disassembly to help with reassembly.
- Label screws and connectors to avoid confusion.
- Use only genuine or high-quality replacement parts to ensure longevity and proper fit.
A clean cabin air filter prevents dust and debris from entering the HVAC system and reaching the squirrel cage fan. Replace the filter according to the manufacturer's recommendations or more frequently if you drive in dusty or polluted environments.
If you notice water accumulating in the footwells or under the dashboard, investigate and repair leaks immediately. Water ingress can damage the blower motor and other electrical components, leading to premature failure.
Do not overload the vehicle's electrical system with aftermarket accessories that draw power from the same circuit as the HVAC fan. Overloading can cause fuses to blow or wiring to overheat, affecting fan operation.
Regular inspections by a qualified technician can catch early signs of wear or damage in the squirrel cage fan and other HVAC components. Preventive maintenance is key to avoiding unexpected breakdowns and costly repairs.
A faulty VW squirrel cage fan can significantly impact the comfort and safety of your vehicle. Recognizing the symptoms early—such as weak airflow, unusual noises, vibrations, inconsistent operation, and burning smells—can help you address issues before they escalate. Regular maintenance, prompt troubleshooting, and timely replacement are key to ensuring your VW's HVAC system operates efficiently. By understanding the role and common problems associated with squirrel cage fans in VW vehicles, you can maintain a comfortable and safe driving environment year-round. Taking proactive steps to care for your vehicle's HVAC system will not only enhance your driving experience but also extend the lifespan of critical components.
Noises from squirrel cage fans in VW vehicles are often caused by debris caught in the fan, worn bearings, or an unbalanced fan cage. Regular cleaning and inspection can help prevent these issues and ensure quiet operation.
Weak airflow is usually due to a clogged cabin air filter, debris in the fan, or a failing blower motor. Ensuring the filter is clean and the fan is free of obstructions can restore proper airflow and improve HVAC performance.
Yes, lubricating the motor bearings can reduce noise and extend the life of the fan. Use the lubricant recommended by the manufacturer and follow proper procedures to avoid damage. If you are unsure, consult a professional technician.
There is no set interval, but replacement is necessary when the fan shows signs of failure such as persistent noise, weak airflow, or complete non-operation. Regular maintenance can extend its lifespan, but eventual replacement may be required as the vehicle ages.
While the vehicle may still be drivable, a faulty fan can compromise defrosting and cabin comfort, especially in extreme weather. It's best to address the issue promptly to ensure safety and comfort for all occupants.
