Keeping your computer running at optimal temperatures is essential in an age where powerful hardware packs more performance—and generates more heat—than ever before. This guide is designed to help you understand how to correctly install computer fans, regardless of your system's configuration. Whether you are assembling a completely new system, upgrading your cooling setup, or simply replacing an old fan, proper installation is crucial for your computer's reliability, longevity, and performance.
Adequate cooling is one of the most overlooked yet critical aspects of computer health and performance. High-end CPUs, GPUs, and other components can overheat and throttle if not cooled effectively, leading to slower operation or even hardware failure. Modern systems rely on active cooling to maintain safe temperatures and stable performance. Well-installed fans support smooth airflow, which in turn prevents heat pockets, promotes dust management, and reduces the likelihood of catastrophic thermal events.
Before diving into installation, it is helpful to recognize the different kinds of fans used in a computer system. Each type serves a unique role:

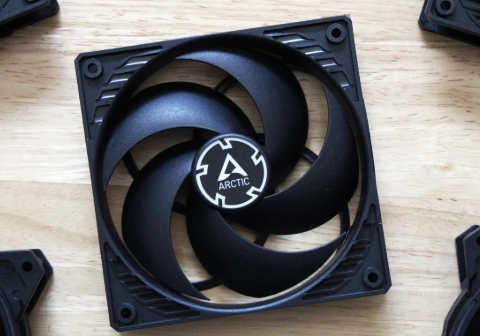

These are the most common fans found in PC builds. They are mounted on the front, back, top, or bottom of the chassis. Case fans ensure air moves through the entire computer, carrying heat away from sensitive components.
Mounted on the heatsink above the CPU, these fans dissipate the intense heat produced by the central processor. CPU fans range from simple stock coolers to advanced towers or all-in-one liquid cooling radiators.
Almost all dedicated graphics cards have their own onboard fans or even blowers. On high-end cards, advanced aftermarket coolers can be installed for quieter or more efficient heat removal.
The PSU includes its own internal fan to cool the power conversion components. These are rarely user-replaceable.
Some setups include fans dedicated to memory modules, VRMs, or storage devices. While less common in casual builds, they are important in high-performance or server systems.
Installing a random fan may not bring optimal results. Several important factors must guide your decision:
- Size Compatibility: The most popular sizes are 120mm and 140mm, but some cases support smaller or larger dimensions. Always measure available mounts before buying.
- Airflow vs. Static Pressure: For open-air use, such as front or rear case ventilation, high airflow fans are ideal. For cooling through dense surfaces like heatsinks or radiators, prioritize static pressure fans.
- Connection Type: Match fan connectors to your motherboard or fan controller. Three-pin fans allow basic voltage control, while four-pin (PWM) fans support precise speed adjustments.
- Noise Levels: Consider the decibel rating of fans if quiet operation is a priority.
- Durability and Build Quality: Reliable brands use high-quality bearings and sturdy materials for longer lifespans and smoother operation.
Gathering the right tools in advance will make the installation process safer and more efficient. Prepare the following:
- Phillips-head screwdriver
- Anti-static wrist strap or anti-static mat
- Cable ties or Velcro straps for cable management
- A clean microfiber or lint-free cloth
- Thermal paste (only for CPU fan or heatsink installations if not pre-applied)
Follow these essential safety practices:
- Shut down the PC, unplug the power supply, and disconnect all peripherals.
- Press the power button once after unplugging to discharge remaining power.
- Use the anti-static wrist strap, grounding yourself to avoid ESD damage.
- Work on a hard, clean surface with ample lighting and keep screws and small parts organized.
1. Access the Case Interior: Remove the side panels, typically secured with screws or latches.
2. Determine Fan Placement: Identify intake and exhaust positions. For best results, use lower front or side positions for intake, and upper rear or top openings for exhaust.

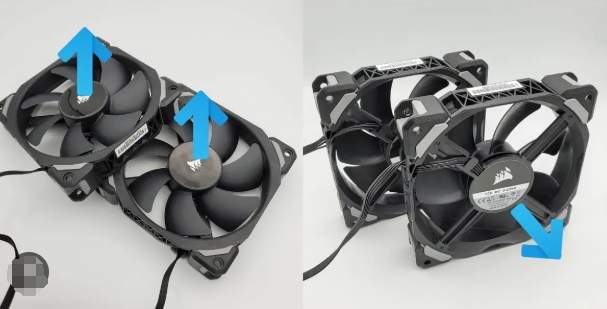

3. Orient the Fan Correctly: Most fans display arrows on their frames showing airflow direction. The open side (without a frame or grill) is often the direction air exits.
4. Align and Secure the Fan: Hold the fan against the mounting position and insert screws through the provided holes. Tighten evenly, but do not overtighten to prevent cracking.
5. Connect Power Cables: Plug the fan into its designated motherboard header or a molex/adapter if necessary.
6. Manage Fan Cables: Use the ties to bundle wires out of airflow paths, avoiding contact with moving blades.
7. Reassemble the Case: Once all fans are installed, replace the panels and secure them.

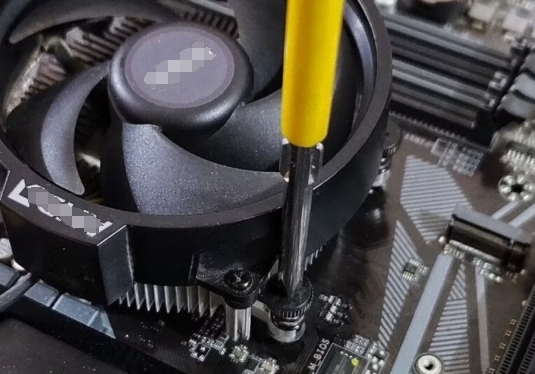

1. Remove the Old Cooler (If Applicable): Unclip or unscrew any mounts, and gently twist the old cooler to loosen the bond with the CPU.
2. Clean and Prep the CPU: Use a microfiber cloth or alcohol pad to remove old thermal paste from the processor.
3. Apply Thermal Paste: If not pre-applied, dispense a small drop (about the size of a grain of rice or pea) onto the center of the CPU.
4. Mount the New Heatsink and Fan: Follow the manufacturer's steps for your specific model. This may include attaching a backplate, aligning brackets, and tightening screws diagonally.
5. Attach the Fan: Some coolers require mounting the fan last, using clips or brackets. Position it so it pushes air toward case exhausts.
6. Connect the Fan Header: Plug the CPU fan cable into the dedicated CPU_FAN motherboard header, typically near the processor socket.
7. Recheck Installation: Confirm heatsink stability and cable connections before closing the case.
1. Power Down and Remove the Graphics Card: Unscrew the rear bracket and gently slide the card out of the slot.
2. Disassemble the Cooling Shroud: Remove screws on the backplate and gently separate the cooler while disconnecting fan cables.
3. Install the New Fan: Align the new fan and reattach all retaining clips or screws per manufacturer instructions.
4. Reconnect and Reinstall the Card: Insert the graphics card back into the PCIe slot, secure it, and reconnect power cables.
5. Test for Functionality: Before closing the case, ensure the fan spins upon boot.
Correct installation does not end with mounting. Verifying your fans' performance is crucial:
- Power Up the System: Watch for all fans to begin spinning immediately.
- Enter BIOS/UEFI: Access the hardware monitor section to check that all connected fans are detected and report RPM readings.
- Monitor Temperatures: Use dedicated system monitoring utilities within your operating system to verify that temperatures remain stable, especially under load.
- Listen for Issues: Loud rattling, vibration, or clicking noises suggest a mounting or hardware problem that needs correction.
- Inspect Airflow Paths: Hold a small strip of paper or tissue near intake and exhaust to confirm air direction and strength.
Optimal airflow means cooler components and less dust. Consider the following:
- Balanced Intake and Exhaust: Aim for slightly positive pressure, with a small bias toward intake fans. This helps keep dust out and ensures steady air movement.
- Strategic Fan Placement: Intake fans should be low and at the front, while exhaust should be high and at the back or top, following the natural rise of hot air.
- Clean Air Filters: Regularly clean or replace dust filters to prevent airflow restrictions.
- Cable Management: Tidy up cables to eliminate blockages that could disrupt smooth airflow.
Keeping fans and airflow in top shape requires occasional maintenance:
- Clean Inside the Case: Remove dust buildup with compressed air every few months, focusing on fan blades, filters, and heatsinks.
- Check Bearings and Noise: If a fan becomes much louder or vibrates, its bearings may be failing. Replace as soon as issues arise.
- Monitor for Loose Connections: Ensure no cables have become disconnected or tangled around moving blades.
- Maintain Good Thermal Paste Application: For CPU fans, reapply thermal paste and re-seat the cooler once every couple of years.
A properly installed computer fan is the cornerstone of a cool, quiet, and reliable PC. With the steps and best practices outlined in this guide, any user—regardless of technical experience—can refresh, maintain, or upgrade system cooling with confidence. Investing time into a well-thought-out fan installation rewards you with greater hardware longevity, improved performance stability, and quieter operation. Remember: Smart planning, precise orientation, careful mounting, and regular maintenance will keep your computer running its best.
Most fans have arrows molded onto the frame indicating airflow direction. Otherwise, observe that air generally flows from the open (logo) side through to the side with the frame struts where the motor mount is visible. Hold the fan up and verify by feeling the movement of air when plugged in briefly.
Yes, but it is best to use matching fans for intake and exhaust for optimal airflow patterns and consistent noise levels. Always ensure each fan fits its mounting location.
Most modern motherboards support PWM control for four-pin fans and voltage control for three-pin fans. However, the number of managed headers may be limited. Consult your motherboard's manual for details about its fan control capabilities.
Yes, always clean off old thermal paste and apply a fresh layer when installing a new CPU cooler or reseating the previous one. This ensures proper heat transfer between the cooler and CPU.
Possible reasons include cables or objects obstructing the blades, a faulty fan header, mechanical issues with the fan's bearings, or incorrect installation. Check for obstructions, verify electrical connections, and replace faulty fans when needed.
