Server cabinets are essential for organizing and protecting the heart of any IT infrastructure. As servers, switches, and storage devices work tirelessly, they generate substantial heat. Without proper cooling, this heat can lead to equipment malfunction, reduced performance, and even permanent damage. Efficient cooling is not just a luxury—it is a necessity for maintaining the reliability and longevity of your hardware.
Among the many cooling solutions available, the 6 muffin fan setup stands out for its simplicity, affordability, and effectiveness in many scenarios. But can a 6 muffin fan truly cool a server cabinet on its own? This comprehensive guide explores the science behind muffin fans, their installation, their strengths and limitations, and how to maximize their cooling potential. For those who prefer hands-on learning, you'll also find a video walkthrough on installing a 6 muffin fan system in a server rack.
A muffin fan is a compact, square-shaped axial fan, often seen in electronics cooling. Its design is optimized for moving air through enclosures, making it a staple in server cabinets and network racks. The term "muffin" refers to its shape, which resembles a muffin tin, and its ability to fit into tight spaces.
Servers and networking equipment are high-performance machines that convert electrical energy into computational power—and heat. If this heat is not effectively removed, it can cause:
- Shortened equipment lifespan
- Increased risk of downtime or hardware failure
- Erratic system behavior
- Potential safety hazards
Proper airflow and cooling ensure that your IT investments remain safe, stable, and productive.

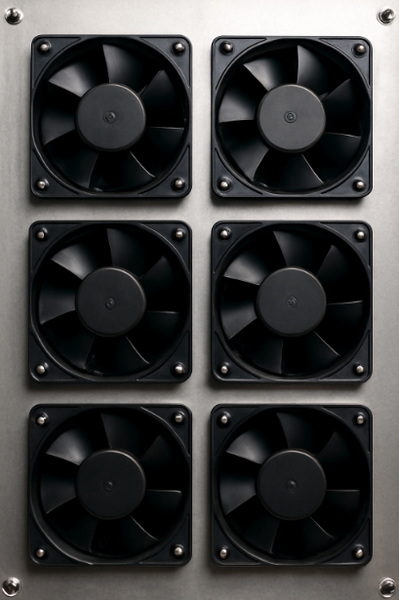

A 6 muffin fan system typically features six high-efficiency fans mounted on a tray or panel. This assembly is installed at strategic points in the cabinet—often at the top, bottom, or sides—to create a consistent airflow. The goal is to draw cooler air into the cabinet and expel hot air generated by the equipment.

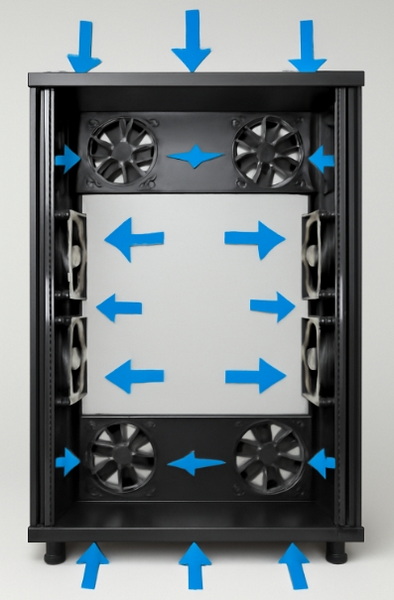

- Top-mounted fans: Exhaust rising hot air out of the cabinet.
- Bottom-mounted fans: Draw cool air from the room into the cabinet.
- Side-mounted fans: Move air horizontally across the equipment.
The combined effect is a continuous stream of air that prevents hot spots and maintains even temperatures throughout the cabinet.
To see the process in action, watch the included video demonstration. This guide shows how to mount a 6 muffin fan tray, connect power, and set up temperature controls for automated operation. The video is especially helpful for visual learners and those new to server cabinet cooling.
A 6 muffin fan system is far more affordable than installing dedicated air conditioning or climate-controlled server rooms. For small to medium-sized cabinets, it provides ample airflow to keep temperatures in check without incurring high energy costs.
Muffin fan trays can be installed in various positions, depending on your cabinet's layout and your cooling needs. Whether you need to cool a densely packed rack or focus on specific hot spots, a 6 muffin fan setup can be adapted for optimal results.
Many modern muffin fan systems feature built-in thermostats or thermal controllers. These devices automatically activate the fans when the temperature rises above a set threshold, ensuring efficient cooling while minimizing noise and power consumption.
High-quality muffin fans are engineered for low-noise operation, making them suitable for office environments, home labs, and other noise-sensitive areas. Some models operate at noise levels barely noticeable in a typical workspace.
The effectiveness of a 6 muffin fan system depends on the total heat output of your equipment. For high-density racks or environments with significant heat generation, muffin fans may not be sufficient as a standalone solution. In such cases, supplemental cooling or advanced climate control may be necessary.
The physical design of your server cabinet greatly impacts cooling efficiency. Cabinets with perforated doors and adequate ventilation allow muffin fans to work at their best. Sealed or overcrowded cabinets can restrict airflow, reducing the effectiveness of even the most powerful fans.
Strategic placement of intake and exhaust fans is crucial. Fans should be positioned to create a clear path for air to flow through the cabinet, avoiding recirculation of hot air. Using blanking panels to fill unused rack spaces can help direct airflow through active equipment.
Dust and debris can accumulate on fans and vents, impeding airflow and reducing cooling efficiency. Regular cleaning and maintenance are essential to keep your muffin fan system operating at peak performance.
Before installation, assess your equipment's heat output and the cabinet's ventilation features. This evaluation will help determine if a 6 muffin fan system is adequate or if additional cooling solutions are needed.
- Install intake fans at the bottom or lower sides to draw in cool air.
- Place exhaust fans at the top or upper sides to expel hot air.
- Ensure there are unobstructed pathways for air to flow through the equipment.
Integrate a thermostat or temperature controller to automate fan operation. This approach conserves energy, reduces noise, and extends the lifespan of your fans.
Leave space between devices to allow air to circulate freely. Overcrowding can create hot spots and diminish the effectiveness of your muffin fan system.
Schedule routine inspections to clean dust from fans, vents, and equipment surfaces. Replace worn or noisy fans promptly to maintain optimal airflow and cooling performance.
Many IT professionals and home lab enthusiasts have successfully implemented 6 muffin fan systems in their server cabinets. For example, one user built a custom rear exhaust box using multiple muffin fans and achieved significant temperature reductions while maintaining a quiet environment. Another approach involved installing a series of 120mm muffin fans at strategic locations, combined with filtered intakes and thermostatic controls, resulting in effective cooling and a clean, professional appearance.
A 6 muffin fan system can provide effective cooling for many small to medium-sized server cabinets, as long as the total heat load does not exceed the fans' capacity and the cabinet is designed to facilitate proper airflow. By following best practices in installation, maintenance, and airflow management, you can ensure reliable performance and protect your valuable IT equipment from the risks associated with overheating.
For high-density or mission-critical installations, supplemental cooling solutions such as air-conditioned cabinets or liquid cooling may be necessary. However, for most standard applications, a well-configured 6 muffin fan setup offers an excellent balance of cost, efficiency, and ease of installation.
A standard 6 muffin fan tray can move a substantial amount of air, which is generally sufficient for most small to medium-sized server cabinets. The exact airflow depends on the fan model and specifications, but it is designed to handle the cooling needs of typical IT equipment.
The best placement depends on your cabinet layout. Typically, exhaust fans are mounted at the top to remove hot air, while intake fans are placed at the bottom or sides to bring in cool air. This setup creates a vertical or horizontal airflow path to efficiently cool the equipment.
While a 6 muffin fan system can improve airflow, its effectiveness is limited in a completely sealed cabinet. For optimal cooling, ensure your cabinet has adequate ventilation openings or perforated doors to allow proper air exchange.
Choose high-quality, low-noise muffin fans and use a thermal controller to adjust fan speed based on temperature. Running fans at lower speeds when full power is not needed can significantly reduce noise.
Regularly clean the fans and cabinet to remove dust and debris, check fan operation, and replace any faulty or noisy fans. Proper maintenance ensures consistent airflow and prolongs the life of both the fans and your server equipment.
