In the rapidly evolving world of electronics and industrial automation, efficient cooling solutions are more important than ever. The 24 volt muffin fan has emerged as a popular choice for engineers, manufacturers, and hobbyists seeking reliable and energy-efficient airflow. As energy costs rise and sustainability becomes a global priority, understanding the efficiency and advantages of the 24 volt muffin fan is essential for anyone involved in system design, maintenance, or procurement.
This article provides a comprehensive exploration of the 24 volt muffin fan, examining its design, operation, energy efficiency, and practical applications. Whether you are considering a cooling solution for sensitive electronics, renewable energy systems, or industrial machinery, this guide will help you make informed decisions and maximize the benefits of your investment.

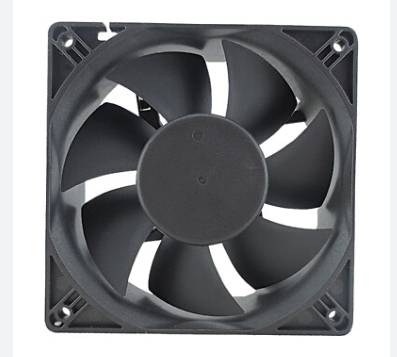

A muffin fan is a type of axial fan, named for its resemblance to a muffin in shape. These fans are designed to move air efficiently through electronic enclosures, machinery, and other confined spaces. The 24 volt muffin fan is a specific variant that operates on a 24-volt DC power supply, making it suitable for a wide range of applications.
- Compact, square or round frame
- Axial airflow (air moves parallel to the axis of rotation)
- Available in various voltages, including 5V, 12V, 24V, and 48V
- Used for cooling, ventilation, and heat dissipation
A 24 volt muffin fan uses a brushless DC motor to spin its blades, drawing air through the fan and expelling it out the other side. The 24-volt power supply allows for higher efficiency in certain applications, especially where longer cable runs or higher airflow is required.
- Brushless DC Motor: Reduces friction, increases lifespan, and improves efficiency.
- Ball or Sleeve Bearings: Minimize wear and noise.
- Aerodynamic Blades: Designed for optimal airflow and minimal resistance.
Energy efficiency in fans refers to the ratio of airflow produced (measured in cubic feet per minute, or CFM) to the electrical power consumed (measured in watts). A more energy-efficient fan delivers higher airflow for less power.
- Reduces operational costs
- Minimizes heat generation
- Extends equipment lifespan
- Supports sustainability goals
- Reduced Current Draw: For the same power output, a 24 volt muffin fan draws less current than a 12 volt fan, reducing losses in wiring and connectors.
- Longer Cable Runs: Lower current allows for thinner wires and longer distances without significant voltage drop.
- Improved Compatibility: Many industrial and commercial systems operate on 24V DC, making integration seamless.
- Enhanced Performance: Higher voltage fans can maintain performance in demanding environments.
The 24 volt muffin fan is ideal for applications where reliability, efficiency, and compatibility with 24V systems are essential. This includes solar-powered setups, 3D printers, industrial control panels, and more.
- Cooling for control panels, drives, and power supplies
- Ventilation in enclosures and cabinets
- Heat dissipation in servers, routers, and network switches
- Cooling for 3D printers and CNC machines
- Direct connection to 24V solar panels for off-grid cooling
- Battery-powered ventilation in remote installations
- Airflow in electric vehicles and specialty vehicles
- Climate control in buses, trucks, and RVs
- Maintaining stable temperatures in sensitive diagnostic devices
- Ensuring proper airflow in laboratory incubators and analyzers
- Cooling for base stations, repeaters, and communication cabinets
- Maintaining optimal operating temperatures for network infrastructure
- Blade Shape and Size: Optimized blades reduce drag and increase airflow.
- Motor Type: Brushless motors are more efficient than brushed alternatives.
- Bearing Quality: High-quality bearings reduce friction and energy loss.
- Voltage Stability: Consistent 24V supply ensures optimal performance.
- Load and Resistance: Fans operate most efficiently at their designed airflow and pressure.
- PWM Speed Control: Allows the fan to adjust speed based on temperature, reducing unnecessary power consumption.
- Thermal Sensors: Enable automatic fan operation only when needed.
- Ambient Temperature: Higher temperatures can affect fan efficiency and lifespan.
- Humidity and Dust: Excessive dust or moisture can reduce efficiency and increase maintenance needs.
- Current Draw: 24V fans require half the current of 12V fans for the same power, reducing wiring losses.
- Wiring: Thinner wires can be used with 24V fans, saving space and cost.
- Efficiency: 24V fans often operate closer to the optimal voltage of solar panels, especially in direct PV-to-load setups.
- Application Fit: 24V is more common in industrial and commercial settings, while 48V is used in high-power or telecom environments.
- Component Availability: 24V fans are widely available and supported by most power supplies.
- 24 volt muffin fans are generally more cost-effective and easier to source than 48V models, while offering significant efficiency advantages over 12V fans.
In solar-powered systems, a 24 volt muffin fan can be directly connected to a 24V solar panel. This setup allows the fan to operate at the panel's maximum power point, maximizing airflow and efficiency without the need for complex electronics. Users have reported that 24V fans outperform 12V fans in these scenarios, providing more consistent cooling and better energy utilization.
Industrial environments often require robust and reliable cooling. The 24 volt muffin fan is favored for its ability to deliver high airflow with lower current, reducing the risk of overheating and electrical faults. Its compatibility with standard 24V power supplies simplifies installation and maintenance.
Data centers rely on efficient cooling to maintain optimal performance and prevent equipment failure. The 24 volt muffin fan is often used in server racks and network cabinets, where its energy efficiency and reliability help reduce operational costs and downtime.
Hobbyists and makers frequently choose the 24 volt muffin fan for custom projects, such as 3D printers, robotics, and home automation systems. Its versatility and efficiency make it a go-to solution for a wide range of creative applications.

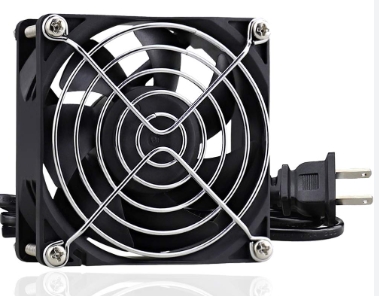

The 24 volt muffin fan is designed for long-term operation, with features such as:
- High-quality bearings for reduced wear
- Brushless motors for extended lifespan
- Rugged construction to withstand harsh environments
- Regularly clean fan blades to prevent dust buildup
- Check wiring and connectors for signs of wear
- Replace bearings or lubricate as needed for optimal performance
- Noise: Excessive noise may indicate worn bearings or debris in the fan.
- Reduced Airflow: Blockages or dust accumulation can impede airflow; regular cleaning is essential.
- Intermittent Operation: Check for loose connections or voltage fluctuations.
By operating more efficiently, the 24 volt muffin fan reduces overall energy consumption. This not only lowers electricity bills but also decreases the carbon footprint of the systems in which they are used.
Many manufacturers now produce 24 volt muffin fans with recyclable materials and RoHS-compliant components, further supporting environmental sustainability.
The use of 24 volt muffin fans in renewable energy systems, such as solar-powered ventilation and off-grid cooling, supports the transition to greener, more sustainable technologies.
Select a 24 volt muffin fan that matches the airflow and pressure requirements of your application. Oversized or undersized fans can lead to wasted energy or inadequate cooling.
Implement PWM speed control or thermal sensors to ensure the fan operates only when necessary, further reducing energy use.
Keep the fan and its environment clean and free of obstructions to maintain optimal airflow and efficiency.
Integrate the 24 volt muffin fan with other energy-saving components, such as variable speed drives and intelligent controllers, to optimize overall system performance.
The 24 volt muffin fan stands out as an energy-efficient solution for a wide range of cooling and ventilation needs. Its ability to deliver high airflow with lower current draw, compatibility with industrial and renewable energy systems, and support for advanced control features make it a top choice for engineers and system designers. By selecting the right fan, implementing smart controls, and maintaining the equipment, users can achieve significant energy savings and contribute to a more sustainable future.
A 24 volt muffin fan draws less current for the same power output compared to a 12 volt fan. This reduces losses in wiring and connectors, especially over long distances, and allows for thinner, more cost-effective wiring.
Yes, a 24 volt muffin fan is ideal for solar-powered systems, particularly when connected directly to a 24V solar panel. This setup maximizes efficiency by operating the fan at the panel's optimal voltage.
While 24 volt muffin fans are commonly used in industrial and commercial settings, they can also be used in home electronics if a 24V power supply is available. They are especially popular in 3D printers and custom PC builds that require efficient cooling.
Many 24 volt muffin fans support PWM (Pulse Width Modulation) speed control, allowing you to adjust the fan speed based on temperature or system requirements. Some models also include thermal sensors for automatic operation.
Regular maintenance includes cleaning the fan blades, checking wiring and connectors, and lubricating or replacing bearings as needed. Proper maintenance ensures optimal performance and extends the fan's lifespan.
