When building or upgrading a PC, one of the most critical aspects to consider is cooling. Arctic, a leading manufacturer in the cooling industry, offers a wide range of computer fans designed to suit various needs, from silent operation to high-performance cooling. However, a common question among PC builders and enthusiasts is: What type of plug is on an Arctic computer fan?
Understanding the different types of plugs, their functions, and compatibility is essential for seamless installation and optimal performance. This comprehensive guide will explore the various plug types found on Arctic computer fans, their technical characteristics, daisy-chaining capabilities, compatibility considerations, and practical installation tips. By the end, you'll have a thorough understanding of how Arctic fans connect to your system and how to make the most of their features.
Arctic produces several fan series, including the F-series and P-series, each available in various sizes and with different connector options. The most common plug types on Arctic fans include:
- 3-Pin DC Connector
- 4-Pin PWM Connector
- Daisy-Chain Connectors (PST)
- Specialized Connectors for RGB/ARGB Models
Let's break down each type and its significance.
The 3-pin DC connector is a traditional fan plug found on many older and budget-friendly fans. It consists of three wires:
- Pin 1: Ground
- Pin 2: +12V Power
- Pin 3: Tachometer (RPM Signal)
3-pin fans are controlled by adjusting the voltage supplied to the fan. Lower voltage reduces the fan speed, while higher voltage increases it. The third pin allows the motherboard to monitor the fan's speed, but not to control it dynamically via pulse-width modulation (PWM).
Most modern motherboards support 3-pin fans, but speed control may be limited compared to 4-pin PWM fans. Some Arctic fans, especially in the F-series, are available with 3-pin connectors for straightforward installations.

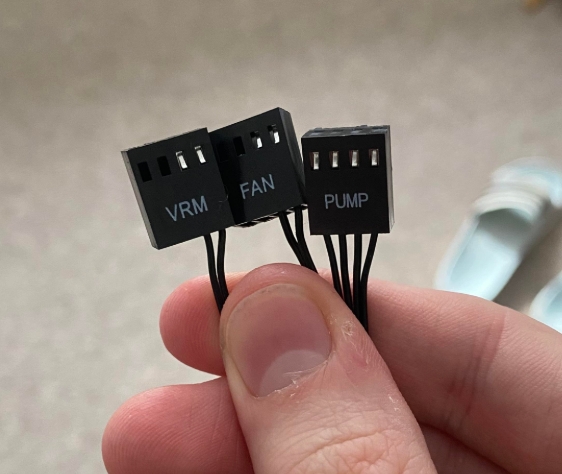

The 4-pin PWM (Pulse Width Modulation) connector is the current standard for most case and CPU fans, especially those aimed at enthusiasts and performance users. The four pins are:
- Pin 1: Ground
- Pin 2: +12V Power
- Pin 3: Tachometer (RPM Signal)
- Pin 4: PWM Signal (for dynamic speed control)
The key advantage of the 4-pin connector is the fourth pin, which allows the motherboard to send a PWM signal. This enables precise, real-time control of fan speed based on system temperature, resulting in quieter operation and better thermal management.
Many Arctic fans, such as the P12 PWM PST, use a 4-pin PWM connector as their primary plug. This ensures broad compatibility with modern motherboards and fan controllers.
PST stands for *PWM Sharing Technology*. Arctic's PST fans are designed to be daisy-chained, allowing multiple fans to be controlled by a single PWM signal from the motherboard.
- Primary 4-Pin PWM Plug: Connects to the motherboard or fan hub.
- Secondary 4-Pin or 3-Pin Socket: Allows another fan to be connected in series.
The daisy-chain feature means you can connect several fans together, simplifying cable management and ensuring synchronized speed control.
The secondary connector on some Arctic fans is a 3-pin socket, even though the main plug is 4-pin. This is because only one RPM signal can be read by the motherboard at a time. The daisy-chained fans receive power and PWM signals, but only the first fan's speed is monitored.
Some Arctic fans, particularly those with RGB or ARGB lighting, include additional connectors for lighting control. These are usually:
- 3-Pin 5V ARGB Connector: For addressable RGB lighting.
- 4-Pin 12V RGB Connector: For standard RGB lighting.
These plugs are separate from the fan's power and control connectors and must be connected to the appropriate headers on the motherboard or a dedicated RGB controller.
While most Arctic fans use standard connectors, some RGB models may use proprietary plugs for advanced lighting effects. Always consult your fan's manual for specific instructions.

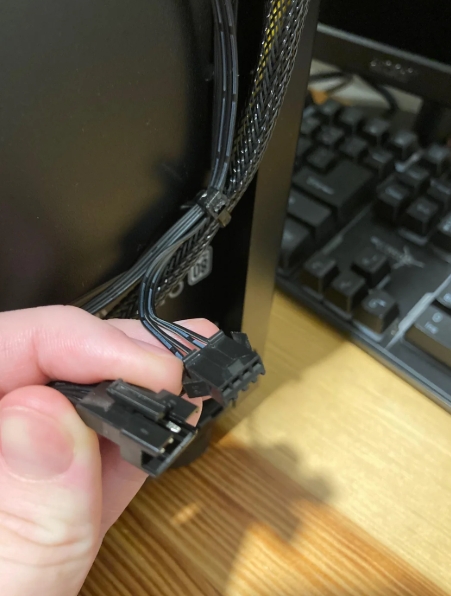

If your motherboard lacks sufficient fan headers, Arctic offers splitter cables that allow you to connect multiple fans to a single header. The 4-pin PWM splitter cable can connect up to four fans, synchronizing their speed control.
For larger setups, Arctic provides powered fan hubs, such as the 10-port PWM fan hub. These hubs are powered by a SATA cable from the power supply and connect to a single 4-pin PWM header on the motherboard. All connected fans receive the same PWM signal, and only one fan's RPM is reported to the motherboard.
- Check Your Motherboard: Identify the number and type of fan headers available.
- Match Connector Types: Use 4-pin PWM fans for dynamic speed control; 3-pin fans for basic setups.
- Consider Daisy-Chaining: If you want to control multiple fans with one header, choose Arctic PST models.
- Single Fan: Plug the 4-pin or 3-pin connector directly into the motherboard header.
- Multiple Fans: Daisy-chain PST fans or use a splitter/hub.
- RGB/ARGB Models: Connect the lighting plug to the appropriate motherboard or controller header.
- Route Cables Cleanly: Use case cutouts and cable ties to keep cables tidy.
- Avoid Overloading Headers: Do not connect too many fans to a single header; use a powered hub if necessary.
Most modern motherboards support both 3-pin and 4-pin fans, but only 4-pin headers provide full PWM control. Check your motherboard's manual for details.
Ensure your power supply and motherboard headers can handle the total current draw of all connected fans. For setups with many fans, a powered hub is recommended.
Some Arctic fans, like the P12 PWM PST, support a zero RPM mode, allowing the fan to stop completely at low temperatures for silent operation.
Arctic fans often use fluid dynamic bearings for improved longevity and reduced noise.
For radiators and restrictive cases, choose high static pressure fans like the Arctic P12 series.
Arctic computer fans are equipped with a variety of plug types to suit different system requirements. The most common are 3-pin DC connectors for basic control and 4-pin PWM connectors for advanced, dynamic speed management. Arctic's PST technology allows for easy daisy-chaining, making it simple to manage multiple fans with a single header. For setups requiring extensive cooling, powered hubs and splitter cables offer flexible solutions.
Understanding the plug type on your Arctic fan ensures compatibility, optimal performance, and a tidy, efficient build. Whether you're assembling a high-performance gaming rig or a silent workstation, Arctic fans and their versatile connectors provide the flexibility and reliability needed for modern PC cooling.
A 3-pin plug provides power, ground, and an RPM signal, allowing for basic speed monitoring and voltage-based speed control. A 4-pin plug adds a PWM signal, enabling precise, real-time speed control by the motherboard.
Yes, many Arctic fans with PST (PWM Sharing Technology) can be daisy-chained. This allows multiple fans to be controlled by a single PWM signal, simplifying cable management and ensuring synchronized operation.
Most modern motherboards support both 3-pin and 4-pin fans. However, only 4-pin headers provide full PWM control. Always check your motherboard's specifications to ensure compatibility.
RGB or ARGB Arctic fans have separate connectors for lighting control, which must be connected to the appropriate headers on the motherboard or a dedicated RGB controller, in addition to the power/control plug.
You can use Arctic's 4-pin PWM splitter cables to connect up to four fans to a single header. For larger setups, use a powered fan hub, which draws power from a SATA connector and connects to a single motherboard header for control.
