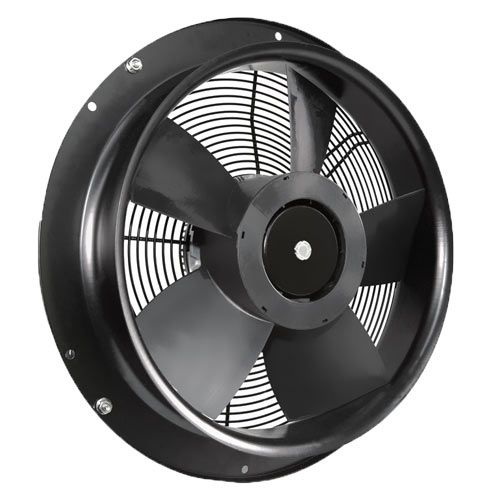

Electronically Commutated (EC) fans are a type of fan that uses a brushless, permanent magnet DC motor with onboard electronics to control the fan rotor. These fans have gained popularity due to their efficiency, reliability, and versatility in various applications, including HVAC systems, refrigeration units, and industrial ventilation systems. In this article, we will delve into the details of EC fans, comparing them with traditional AC fans, and explore their benefits, applications, and how they work.
AC fans use alternating current from the main supply to energize electromagnets, which drive the fan blades. These motors are widely used due to their simplicity and cost-effectiveness. However, they have limitations in terms of efficiency and speed control. AC motors change polarity at the frequency of the mains supply (e.g., 50 Hz in the UK), which can lead to inefficiencies and noise during operation.
EC fans, on the other hand, convert AC power to DC power using onboard electronics. This conversion allows for precise control over the motor's rotation, making EC fans significantly more efficient than AC fans. The use of permanent magnets in EC motors eliminates the need for carbon brushes, reducing maintenance and increasing the motor's lifespan.

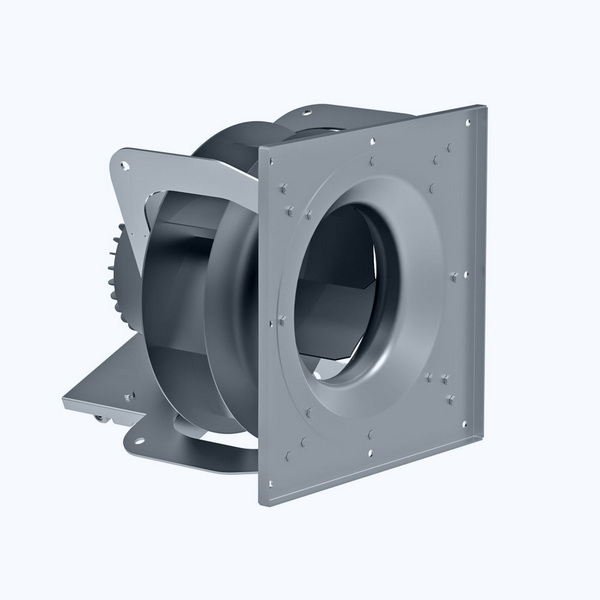

EC fans utilize a brushless DC motor with permanent magnets and electronic commutation. Here's a step-by-step explanation of their operation:
1. Voltage Rectification: The AC voltage from the mains supply is rectified to DC by the onboard electronics.
2. Electronic Commutation: Sensors detect the rotor's position, and the electronic controller energizes the appropriate coils to maintain rotation efficiently.
3. Rotor and Stator Interaction: The stator contains windings, while the rotor houses permanent magnets. The interaction between these components creates the rotational force.
4. Pulse Width Modulation (PWM): EC fans utilize PWM to control the torque and speed of the motor. Control electronics adjust the pulse width and frequency of the stator windings' current to regulate the power supplied to the motor effectively.
EC fans offer several advantages over traditional AC fans:
- Energy Efficiency: EC fans consume up to 50% less electricity than AC motors, reducing operational costs and environmental impact.
- Low Maintenance: The absence of carbon brushes means less wear and tear, resulting in lower maintenance costs.
- Quiet Operation: EC fans operate more quietly than AC fans, especially during speed regulation.
- Precise Speed Control: Adjustable speed controls allow for fine-tuning to match changing air movement requirements.
- Compact Design: EC motors are lighter and easier to integrate into existing systems.
EC fans are widely used in various applications due to their efficiency and reliability:
- HVAC Systems: EC fans are ideal for heating, ventilation, and air conditioning systems, providing better airflow control and energy efficiency.
- Refrigeration Units: They are used in evaporators to maintain the freshness and quality of goods while minimizing energy consumption.
- Industrial Ventilation: EC fans are preferred in industrial settings for their ability to handle high airflow rates with reduced energy consumption.

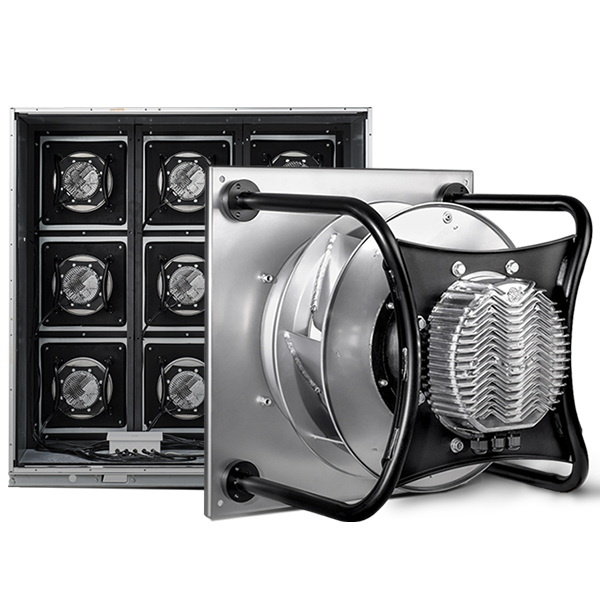

Retrofitting existing systems with EC fans can significantly improve efficiency and reduce operational costs. This process involves replacing traditional AC fans with EC fans, which can be easily integrated into existing setups due to their compact design and compatibility with AC power supplies.
The concept of EC motors dates back to the 1960s, with companies like ebm-papst pioneering their development. Over the years, EC technology has evolved, offering more efficient and compact fan solutions. Today, EC fans are fully compliant with energy efficiency directives, such as the European Union's Energy Related Products Directive.
Most EC fans are designed with intelligent control components, allowing them to be operated via dedicated fan controllers or integrated into building management systems. These fans can provide data on humidity, temperature, and pressure for speed automation and adjustments depending on environmental conditions.
The use of EC fans contributes to reducing carbon emissions by minimizing energy consumption. As industries move towards more sustainable practices, EC fans play a crucial role in achieving these goals by providing efficient and environmentally friendly solutions.
While EC fans are initially more expensive than AC fans, their long-term benefits often outweigh the costs. The energy savings and reduced maintenance costs can lead to a significant return on investment over time. Additionally, the quieter operation and precise speed control can enhance the overall performance of systems, leading to improved product quality in applications like refrigeration.
As technology continues to advance, EC fans are likely to become even more efficient and integrated with smart technologies. Future developments may include enhanced sensor capabilities, improved motor designs, and more sophisticated control systems that can optimize fan performance based on real-time data.
Several companies have successfully implemented EC fans in their operations, resulting in significant energy savings and improved system performance. For example, a leading supermarket chain in Europe replaced traditional AC fans in their refrigeration units with EC fans, achieving a 30% reduction in energy consumption and extending the lifespan of their equipment.
EC fans represent a significant advancement in fan technology, offering superior efficiency, reliability, and control compared to traditional AC fans. Their applications span across various industries, from HVAC systems to refrigeration units, making them a preferred choice for those seeking to reduce energy consumption and operational costs.
Answer: The main difference lies in the motor technology. AC fans use alternating current directly, while EC fans convert AC to DC and use electronic commutation for more efficient operation.
Answer: Initially, EC fans are more expensive than AC fans. However, their operational costs are significantly lower due to higher efficiency, which offsets the initial cost over time.
Answer: Yes, EC fans can be used as replacements for AC fans. They are compatible with AC power supplies and offer better performance and efficiency.
Answer: EC fans in refrigeration units provide energy efficiency, precise speed control, and quiet operation, which helps maintain the freshness and quality of goods while reducing energy consumption.
Answer: No, EC fans generally require less maintenance than AC fans due to the absence of carbon brushes, which reduces wear and tear.
