Electronically Commutated (EC) fans are revolutionizing the Heating, Ventilation, and Air Conditioning (HVAC) industry with their exceptional efficiency, compact design, and versatile control capabilities. In this article, we will delve into the world of EC fans, exploring their technology, advantages, and applications in HVAC systems.

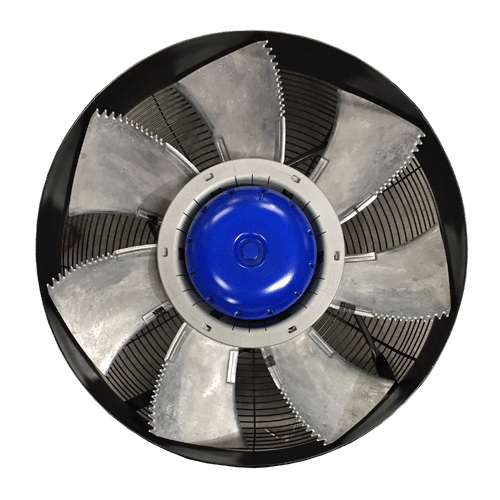

EC fans utilize a brushless, permanent magnet DC motor with onboard electronics for controlling the fan rotor. This technology combines the benefits of both AC and DC voltages, allowing for high efficiency and precise speed control.
The EC motor operates on a DC voltage but is supplied with an AC voltage, which is converted internally. This conversion is facilitated by an electronic control board integrated into the motor, eliminating the need for external transformers or frequency inverters.
EC fans offer several advantages over traditional AC fans, making them an attractive choice for HVAC systems:
1. High Efficiency: EC fans achieve efficiency levels of up to 90%, significantly reducing energy consumption and heat loss.
2. Compact Design: Their compact size allows for easy retrofitting into existing systems, reducing installation costs.
3. Precise Speed Control: EC fans can dynamically adjust their speed, providing optimal airflow and energy savings.
4. Low Maintenance: With no belts or brushes, EC fans require less maintenance compared to traditional AC fans.
EC fans are widely used in various HVAC applications due to their efficiency and versatility:
1. Air Conditioning Units: They are used in condenser fans and evaporator fans to enhance cooling efficiency.
2. Ventilation Systems: EC fans improve airflow control and reduce energy consumption in ventilation systems.
3. Heating Systems: They are used in heating units to optimize airflow and reduce energy costs.
HVAC systems typically include a heater, air conditioner, and a network of air ducts. Here is a simplified diagram illustrating key components:
graph LR
A[Heater] --> B[Air Ducts]
C[Air Conditioner] --> B
B --> D[Indoor Unit]
D --> E[Outdoor Unit]
E --> F[Condenser Fan]
F --> G[Condenser Coil]
Several companies have successfully integrated EC fans into their HVAC systems, achieving significant energy savings and improved performance. For instance, a commercial building in the U.S. replaced traditional AC fans with EC fans, resulting in a 30% reduction in energy consumption. Another example is a large data center that used EC fans to reduce cooling costs by optimizing airflow and reducing fan speed during low-load periods.
While EC fans offer numerous benefits, they also present some challenges:
1. Higher Upfront Costs: EC fans are generally more expensive than traditional AC fans, although they provide long-term cost savings.
2. Compatibility Issues: Ensuring compatibility with existing systems can be a challenge during retrofitting.
Despite these challenges, ongoing research and development are focused on improving EC fan technology, enhancing its efficiency, and reducing costs. Future advancements may include more advanced control systems and integration with smart building technologies.
EC fans can be seamlessly integrated with smart building systems, allowing for real-time monitoring and control of HVAC operations. This integration enables building managers to optimize energy usage, predict maintenance needs, and enhance overall building performance.
By reducing energy consumption and heat loss, EC fans contribute significantly to environmental sustainability. They help minimize carbon footprint, which is crucial in the context of global efforts to combat climate change.
While EC fans have higher upfront costs, their long-term benefits include reduced energy bills and lower maintenance costs. Over time, these savings can offset the initial investment, making EC fans a cost-effective choice for many businesses.
| Upfront Cost | Higher | Lower |
| Energy Efficiency | Higher | Lower |
| Maintenance Cost | Lower | Higher |
| Long-term Savings | Significant | Minimal |
The demand for EC fans is expected to grow as more businesses and governments focus on energy efficiency and sustainability. Advances in technology will continue to improve the performance and affordability of EC fans, making them more accessible to a wider range of applications.
EC fans are transforming the HVAC industry with their efficiency, compact design, and versatility. As technology continues to evolve, we can expect even more innovative applications of EC fans in heating, ventilation, and air conditioning systems.
EC fans offer high efficiency, precise speed control, compact design, and low maintenance, making them ideal for HVAC applications.
EC fans achieve high efficiency by converting AC to DC voltage internally, allowing for dynamic speed control and reducing energy consumption.
Yes, EC fans are designed as plug-and-play replacements for traditional AC fans, simplifying the upgrade process.
EC fans are used in refrigeration units, data centers, and healthcare equipment due to their reliability and efficiency.
By reducing energy consumption and heat loss, EC fans contribute significantly to environmental sustainability by minimizing carbon footprint.
