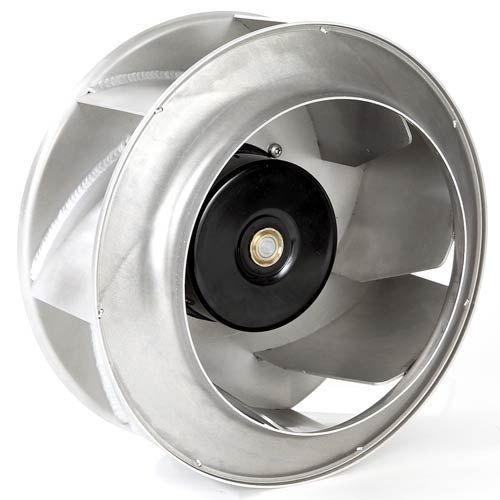

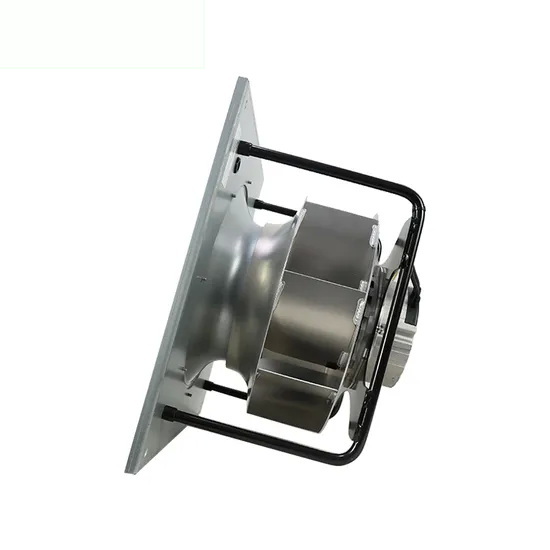

EC fan motors, also known as Electronically Commutated motors, represent a significant advancement in motor technology. These motors combine the benefits of both alternating current (AC) and direct current (DC) systems, offering high efficiency, low noise, and continuous speed control. In this article, we will delve into the details of EC fan motors, exploring their design, operation, advantages, and applications.
EC motors are essentially brushless DC motors that incorporate onboard electronics to manage the motor's operation. They are designed to run on an AC power supply but function similarly to DC motors, leveraging permanent magnets in the rotor and windings in the stator to create motion. The electronic commutation eliminates the need for carbon brushes, reducing maintenance and increasing lifespan.
1. Stator and Rotor: The stator contains windings, while the rotor houses permanent magnets. The interaction between these magnetic fields drives the motor's rotation.
2. Electronic Control: The onboard electronics include a power control board (PCB) that regulates voltage and current. Sensors monitor the rotor's position, ensuring precise control over the motor's phases.
The operation of an EC motor involves several key steps:
- Voltage Rectification: AC voltage from the mains is converted to DC within the motor's electronics.
- Electronic Commutation: The electronic controller energizes the stator windings in sequence, creating a rotating magnetic field that interacts with the rotor's permanent magnets.
- Rotation: The rotor rotates due to the attraction and repulsion between the magnetic poles, allowing for efficient and controlled motion.
To better understand the process, consider the following illustration:
+---------------+
| AC Power |
+---------------+
|
|
v
+---------------+
| Rectification |
| (AC to DC) |
+---------------+
|
|
v
+---------------+
| Electronic |
| Commutation |
+---------------+
|
|
v
+---------------+
| Stator Windings|
| (Sequential |
| Energization) |
+---------------+
|
|
v
+---------------+
| Rotor Rotation |
| (Magnetic Field)|
+---------------+
EC motors offer several advantages over traditional AC motors:
- High Efficiency: They minimize energy loss as heat, resulting in lower power consumption.
- Low Maintenance: The absence of carbon brushes reduces wear and tear, extending the motor's lifespan.
- Continuous Speed Control: Electronic control allows for precise speed adjustment, making them suitable for applications requiring variable airflow.
EC motors are widely used in various applications due to their efficiency and versatility:

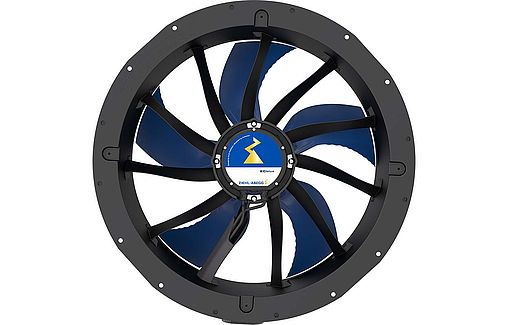

- Ventilation Systems: They are ideal for fans and duct systems where controlled airflow is crucial.
- Refrigeration: EC motors are used in condensers and chillers for efficient cooling.
- Industrial Automation: Their precision control makes them suitable for automated systems requiring variable speed.
The use of EC motors contributes to a more sustainable operation by reducing energy consumption and minimizing environmental impact:
- Energy Savings: By operating at higher efficiencies, EC motors help reduce overall energy consumption, leading to lower greenhouse gas emissions.
- Reduced Heat Generation: Less heat is generated during operation, which can reduce the cooling load in buildings and industrial settings.
A recent study on HVAC systems showed that replacing traditional AC motors with EC motors resulted in a significant reduction in energy consumption, leading to cost savings and a decrease in carbon footprint. For instance, a commercial building in New York reported a 25% reduction in energy costs after upgrading its HVAC system with EC motors.
As technology continues to evolve, we can expect further advancements in EC motor design and functionality:
- Improved Materials: The use of advanced materials in motor construction could enhance efficiency and durability.
- Smart Motor Systems: Integration with IoT technology could enable real-time monitoring and optimization of motor performance.
Despite their advantages, EC motors also face some challenges:
- Higher Initial Cost: EC motors are generally more expensive than traditional AC motors, which can be a barrier to adoption.
- Complexity: The onboard electronics require sophisticated design and manufacturing processes, which can increase production costs.
To overcome these challenges, manufacturers are focusing on reducing production costs while maintaining efficiency. Additionally, the long-term savings from reduced energy consumption can offset the higher initial investment.
The adoption of EC motors is increasing globally due to their efficiency and environmental benefits. Governments and regulatory bodies are also promoting the use of energy-efficient technologies, further driving the demand for EC motors.
EC fan motors represent a significant advancement in motor technology, offering high efficiency, low maintenance, and precise control. Their ability to combine the benefits of AC and DC systems makes them ideal for a wide range of applications. As technology continues to evolve, EC motors are likely to become even more prevalent in industries requiring efficient and reliable motor solutions.
EC motors offer higher efficiency and lower maintenance due to their brushless design and electronic commutation, which reduces energy loss and extends lifespan.
EC motors achieve continuous speed control through electronic commutation, where sensors monitor the rotor's position and energize the stator windings accordingly, allowing for precise speed adjustment.
EC motors are commonly used in ventilation systems, refrigeration units, and industrial automation due to their efficiency and control capabilities.
EC motors differ from traditional AC motors by incorporating onboard electronics for commutation and using permanent magnets in the rotor, eliminating the need for carbon brushes.
EC motors contribute to energy savings by minimizing power consumption and reducing heat generation, which can lead to lower greenhouse gas emissions and a more sustainable operation.
