Testing a DC fan motor is a crucial step in diagnosing issues with air conditioning units, refrigerators, and other appliances that rely on these motors for airflow. This process involves several steps, including checking the motor's electrical connections, verifying its resistance, and ensuring it receives the correct voltage. In this article, we will guide you through the process of testing a DC fan motor using a multimeter and other tools.

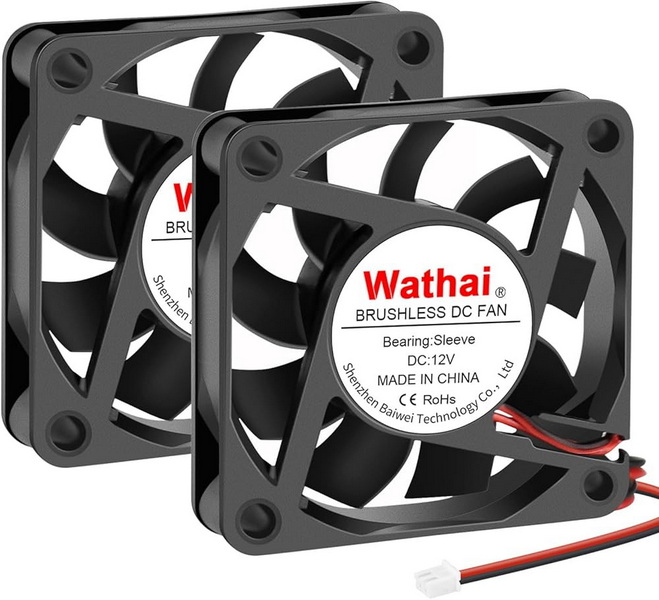

DC fan motors are widely used in modern appliances due to their efficiency and reliability. They are commonly found in air conditioners, refrigerators, and computer cooling systems. Unlike AC motors, DC motors require a direct current to operate, which is typically provided by a controller or power supply.
- Efficiency: DC motors are more energy-efficient compared to AC motors, especially at variable speeds.
- Control: They offer better speed control, allowing for more precise airflow management.
- Reliability: Generally, they have fewer moving parts, reducing wear and tear.
To test a DC fan motor, you will need the following tools:
- Multimeter: This is the primary tool for measuring voltage, resistance, and continuity.
- Power Supply (Optional): If you need to power the motor for testing.
- Safety Gloves and Goggles: For protecting yourself from electrical shock or debris.
- Torx or Phillips Screwdriver: For accessing the motor or its connections.
Before starting, ensure that the power to the motor is turned off at the circuit breaker or fuse box. This is crucial to prevent electrical shock or injury.

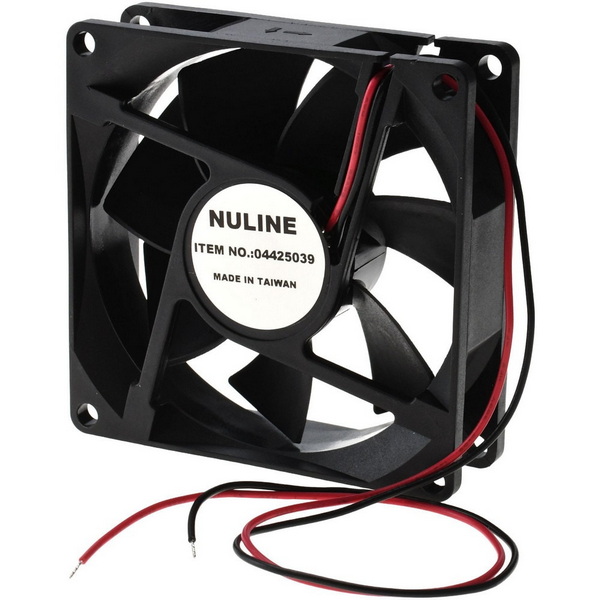

Inspect the motor and its surroundings for any visible damage, such as broken wires, loose connections, or physical damage to the motor casing. Check for dust buildup, which can impede airflow and motor efficiency.
Use a multimeter set to continuity mode to check for any breaks in the circuit. Connect the probes to the motor terminals and listen for a beep, which indicates continuity. If there is no beep, it may indicate an open circuit.
Set your multimeter to the ohms setting and measure the resistance across the motor terminals. A reading of infinity indicates an open circuit, while a reading close to zero suggests a short circuit. For most DC fan motors, you should see a finite resistance value, which varies depending on the motor design.
- For some motors, a resistance of around 300KΩ might be expected between certain terminals.
- Always refer to the manufacturer's specifications for the correct resistance values.
If possible, use a multimeter to measure the voltage supplied to the motor. Ensure it matches the motor's rated voltage. For many DC fan motors, this is typically around 12V or 24V, but it can vary.

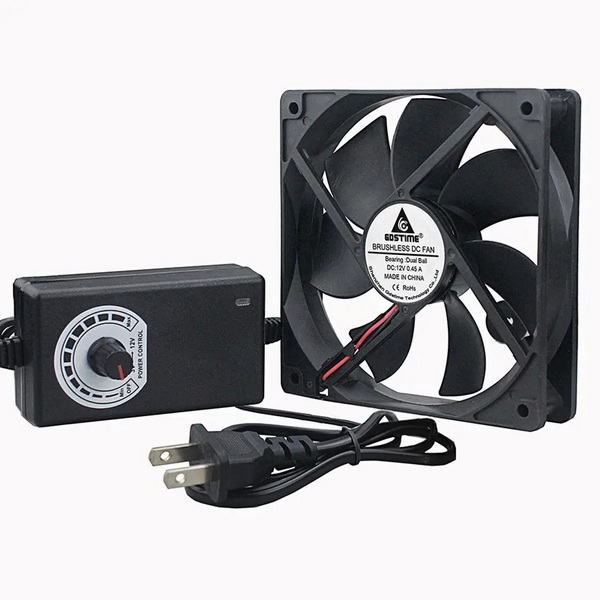

If the motor passes the above tests, try powering it with a suitable power supply. Observe if the motor spins freely and smoothly. Any unusual noises or vibrations could indicate a problem.
- Cause: Incorrect wiring, insufficient voltage, or faulty motor.
- Solution: Check wiring, ensure correct voltage supply, and replace the motor if necessary.
- Cause: Misaligned or worn-out bearings, loose screws, or debris.
- Solution: Inspect and clean the motor, replace bearings if needed.
- Cause: Overload, poor ventilation, or faulty controller.
- Solution: Reduce load, improve ventilation, or replace the controller.
- Cause: Imbalanced fan blades or misaligned motor mounts.
- Solution: Balance fan blades and adjust motor mounts.
- Cause: Faulty controller or inconsistent power supply.
- Solution: Check the controller for faults and ensure a stable power supply.
For more complex issues, you might need to use advanced diagnostic tools like oscilloscopes to check the waveform of the power supply or to monitor the motor's current draw. This can help identify problems with the motor's control circuitry.
An oscilloscope can help you visualize the voltage waveform supplied to the motor, which can be crucial in diagnosing issues related to the power supply or controller.
Regular maintenance can extend the lifespan of your DC fan motor. Here are some tips:
- Clean the Motor: Regularly clean dust from the motor and fan blades to ensure optimal airflow.
- Check Connections: Ensure all electrical connections are secure and not corroded.
- Monitor Temperature: Keep an eye on the motor's operating temperature to prevent overheating.
- Regular Cleaning: Use compressed air to clean dust from the motor and fan.
- Secure Mounting: Ensure the motor is properly mounted to prevent vibrations.
- Proper Ventilation: Ensure good airflow around the motor to prevent overheating.
For complex issues, consider the following steps:
- Check the Controller: If the motor is controlled by an electronic circuit, inspect the controller for faults.
- Inspect Wiring: Ensure all wiring is intact and not damaged.
- Consult a Professional: If unsure, consult a professional electrician or technician.
Testing a DC fan motor involves a series of electrical and mechanical checks to ensure it is functioning correctly. By following these steps and using the right tools, you can diagnose common issues and perform necessary repairs or replacements. Remember to always follow safety guidelines when working with electrical components.
A faulty DC fan motor may not spin, make unusual noises, or overheat. Perform a continuity and resistance test to confirm if there's an electrical issue.
Yes, you can perform resistance and continuity tests without powering the motor. However, to verify its functionality, you need to supply it with the correct voltage.
You will need a multimeter, safety gloves, and goggles. Optionally, a power supply if you want to test the motor under power.
Use a multimeter set to DC voltage mode and measure across the motor terminals or at the power supply output.
In some cases, yes. For example, cleaning or replacing bearings might fix issues. However, electrical faults often require replacing the motor entirely.
