Testing a 12V DC fan motor is a straightforward process that involves checking for continuity, ensuring proper voltage supply, and verifying the motor's operation. This guide will walk you through the steps to diagnose and troubleshoot common issues with 12V DC fan motors.

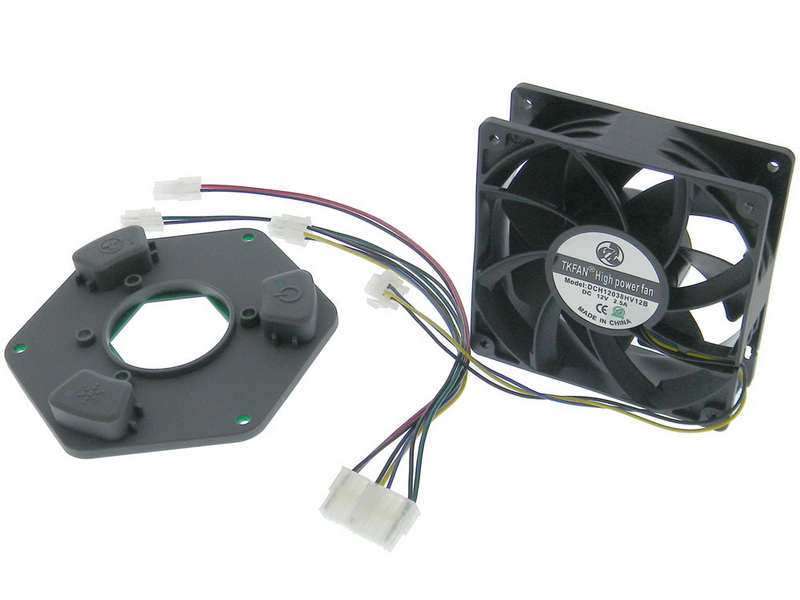

DC fan motors are widely used in various applications, including automotive radiators, computer cooling systems, and household appliances. They are preferred for their efficiency and reliability. However, like any electrical component, they can fail due to wear and tear, improper voltage supply, or mechanical issues.
To test a 12V DC fan motor, you will need:
- Multimeter: For measuring voltage, current, and resistance.
- Power Source: A 12V battery or a variable DC power supply.
- Wiring Diagram: Specific to your fan motor model.
- Safety Goggles: To protect your eyes from any debris during testing.
Ensure the power to the fan motor is turned off before starting any tests. Wear safety goggles to prevent eye injuries from any flying debris.
Check for any visible damage or debris accumulation on the fan blades or motor housing. Clean the fan and motor to ensure accurate test results.
Use a multimeter to check for continuity in the motor windings:
- Set the multimeter to the ohms setting.
- Touch the probes to the motor terminals.
- A reading of less than 1 ohm indicates good continuity, while infinite ohms suggests an open circuit.
Example of a Continuity Test:
- Multimeter Setting: Ohms
- Probe Connection: Red to positive terminal, Black to negative terminal
- Expected Reading: Less than 1 ohm for a healthy motor

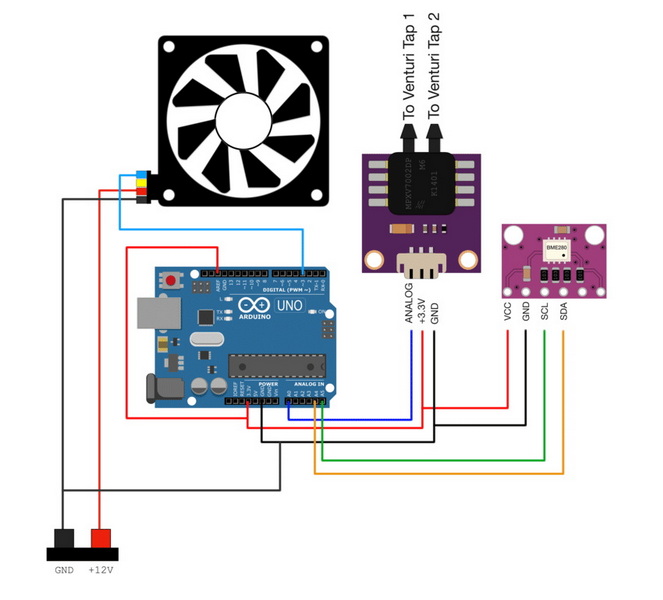

Apply the correct voltage to the motor and check if it operates:
- Use a 12V power source (battery or DC supply).
- Connect the positive terminal to the red wire and the negative terminal to the black wire.
- Observe if the fan spins smoothly.
Example of a Voltage Test:
- Power Source: 12V Battery
- Connection: Red wire to positive terminal, Black wire to negative terminal
- Expected Outcome: Fan should spin smoothly
Check for any short circuits by connecting one probe to a motor terminal and the other to the motor housing:
- If there is a short, the multimeter will show zero ohms or a very low reading.
Example of a Short Circuit Test:
- Multimeter Setting: Ohms
- Probe Connection: One probe to a motor terminal, the other to the motor housing
- Expected Reading: Should not show zero ohms unless there is a short
- Cause: Often due to improper voltage supply or mechanical issues.
- Solution: Check the voltage supply and ensure proper mechanical alignment.
- Cause: Insufficient airflow or excessive load.
- Solution: Ensure adequate airflow and check for any blockages.
- Cause: Imbalanced fan blades or worn-out bearings.
- Solution: Balance the fan blades and replace bearings if necessary.
- Use a Variable Power Supply: Gradually increase voltage to avoid sudden spikes.
- Check for Dust Accumulation: Regularly clean the fan and motor to prevent overheating.
- Replace Worn-Out Components: Regular maintenance can extend the motor's lifespan.
Use thermal imaging cameras to detect overheating areas in the motor. This can help identify issues such as poor airflow or electrical shorts.
Measure the current draw of the motor to ensure it is within the expected range. High current draw can indicate a short circuit or excessive load.
Regular maintenance is crucial to extend the lifespan of your DC fan motor:
- Cleanliness: Regularly clean the fan blades and motor housing to prevent dust accumulation.
- Lubrication: Apply lubricant to moving parts like bearings to reduce friction.
- Voltage Checks: Ensure the power supply is stable and within the recommended voltage range.
When selecting a power supply for your DC fan motor, consider the following factors:
- Voltage Rating: Ensure the power supply matches the motor's voltage requirement.
- Current Capacity: Choose a power supply that can handle the motor's maximum current draw.
- Efficiency: Opt for high-efficiency power supplies to minimize energy loss.
Environmental factors can significantly affect the performance and lifespan of DC fan motors:
- Temperature: Extreme temperatures can reduce motor efficiency and lifespan.
- Humidity: High humidity can lead to corrosion and electrical issues.
- Dust and Debris: Regular cleaning is essential in dusty environments.
In real-world scenarios, DC fan motors are used in various applications where reliability and efficiency are crucial. For instance, in automotive systems, these motors are used for cooling radiators and ensuring optimal engine performance. In computer systems, they are essential for maintaining low temperatures, which helps prevent overheating and extends the lifespan of components.
When installing a new DC fan motor, follow these best practices:
- Secure Mounting: Ensure the motor is securely mounted to prevent vibration.
- Proper Wiring: Use the correct wiring diagram to avoid electrical shorts.
- Adequate Ventilation: Ensure there is enough space around the motor for airflow.
Testing a 12V DC fan motor involves a combination of visual inspections, continuity tests, and voltage checks. By following these steps and troubleshooting common issues, you can diagnose and potentially fix problems with your fan motor. Remember to always ensure safety by disconnecting power before starting any tests.
You can test a DC fan motor without power by checking for continuity using a multimeter. Set the multimeter to ohms and touch the probes to the motor terminals. A low resistance reading indicates good continuity.
This issue is often due to the power supply not being able to handle the motor's stall current. Using a higher capacity power supply or gradually ramping up the voltage can help resolve this problem.
Running two 12V DC motors in series is not recommended as it can reduce the voltage supplied to each motor, potentially causing them to operate inefficiently. It's better to run them in parallel if possible.
Regular cleaning is essential to prevent dust accumulation, which can cause overheating and reduce efficiency. Clean the fan and motor every few months, depending on usage and environment.
Common causes of DC fan motor failure include electrical issues, mechanical wear and tear, and overheating. Regular maintenance and proper voltage supply can help extend the motor's lifespan.
