Slowing down a 12V DC fan is a common requirement in various applications, such as reducing noise or conserving energy. There are several methods to achieve this, each with its own advantages and limitations. In this article, we will explore these methods in detail, including using resistors, pulse width modulation (PWM), and voltage regulation.
DC fans are widely used in electronics for cooling purposes due to their efficiency and reliability. They operate by converting electrical energy into rotational motion, which creates airflow. The speed of a DC fan is directly related to the voltage applied to it; higher voltages result in faster speeds, while lower voltages reduce the speed.
A typical DC fan consists of a motor, blades, and sometimes additional components like speed control circuits. The motor is usually a brushless DC (BLDC) type, which offers high efficiency and reliability. However, some fans may use brushed motors, which are simpler but less efficient.
One of the simplest methods to slow down a 12V DC fan is by using a resistor in series with the fan's power supply. This resistor creates a voltage drop, reducing the voltage that reaches the fan and thus slowing it down. The choice of resistor depends on the desired speed reduction and the fan's current draw.
To implement this method, you can use a resistor like a 5W or 10W type, depending on the fan's power consumption. Here's a basic setup:
1. Identify the Power Cable: Locate the positive wire (usually red) of the fan's power cable.
2. Insert the Resistor: Cut the positive wire and insert the resistor in series. Ensure the resistor is rated for the fan's maximum current.
3. Test the Fan: Apply power and adjust the resistor value if needed to achieve the desired speed.
PWM is a more efficient method for controlling fan speed. It involves rapidly switching the power supply on and off to create an average voltage that is lower than the full supply voltage. This method is particularly effective for fans with electronic speed control capabilities.
1. PWM Signal Generation: Use a microcontroller or a dedicated PWM controller to generate a PWM signal.
2. Power Switching: Use a transistor or MOSFET to switch the power supply to the fan based on the PWM signal.
3. Average Voltage Control: Adjust the duty cycle of the PWM signal to control the average voltage applied to the fan, thus controlling its speed.
Example Circuit: A simple PWM circuit can be built using a 555 timer IC or an Arduino board. Here's a basic setup:
# Example Arduino Code for PWM Fan Control
import time
# Define the PWM pin
pwm_pin = 9
# Initialize the PWM pin
pinMode(pwm_pin, OUTPUT)
while True:
# Set the PWM duty cycle (0-255)
analogWrite(pwm_pin, 128) # Half speed
delay(1000)
# Change to full speed
analogWrite(pwm_pin, 255)
delay(1000)
Voltage regulation involves reducing the voltage supplied to the fan using a voltage regulator or a step-down converter. This method is similar to using resistors but is more efficient and can provide a stable output voltage.
1. Select a Regulator: Choose a linear or switching regulator that can handle the fan's current.
2. Set the Output Voltage: Adjust the regulator to output a lower voltage, such as 7V or 9V, depending on the desired speed.
Example: You can use a simple voltage divider or an adjustable voltage regulator like the LM317 to achieve this.

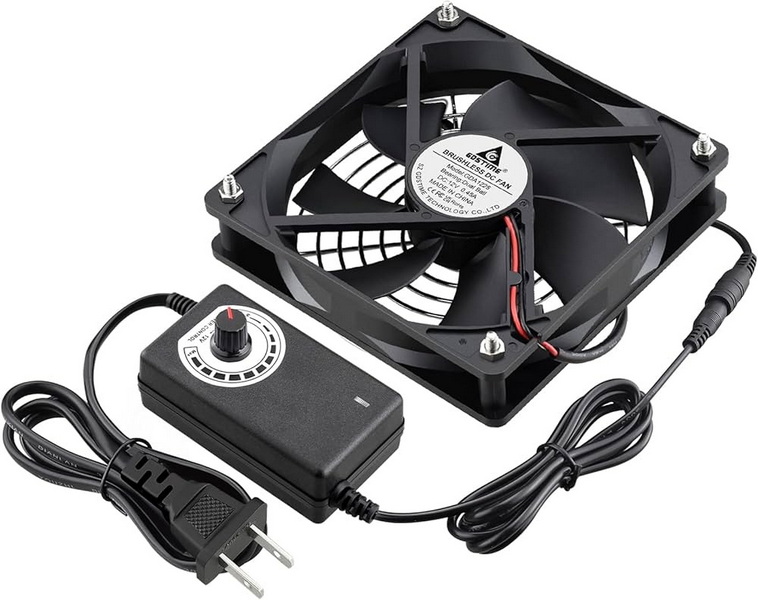

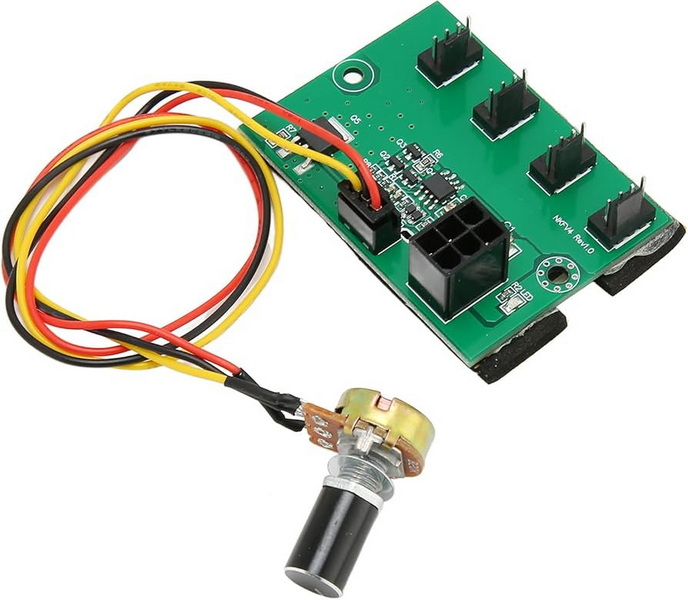

Fan controllers are dedicated devices designed specifically for controlling fan speeds. They often use PWM or voltage regulation internally and provide a user-friendly interface for adjusting fan speed.
1. Manual Controllers: These use knobs or buttons to adjust fan speed.
2. Automatic Controllers: These can adjust fan speed based on temperature or other parameters.
A buck converter is a type of switching regulator that can efficiently reduce the voltage supplied to the fan. It is more efficient than linear regulators and can handle high currents.
1. Input Voltage: The buck converter takes in the full 12V supply.
2. Switching Action: It uses a high-frequency switching circuit to reduce the output voltage.
3. Output Regulation: The output voltage is regulated to a stable level, such as 5V or 9V, depending on the desired fan speed.
Example Circuit: You can use a module like the LM2596 to build a simple buck converter for fan speed control.
| Method | Advantages | Disadvantages |
|---|---|---|
| Resistors | Simple, inexpensive | Inefficient, heat dissipation |
| PWM | Efficient, precise control | Requires additional components |
| Voltage Regulation | Stable output, efficient | Requires specific components |
| Fan Controllers | Easy to use, versatile | More expensive |
| Buck Converters | Highly efficient, stable output | Requires specialized components |
In computer cooling systems, controlling fan speed is crucial for maintaining optimal temperatures while minimizing noise. Using PWM or fan controllers allows for dynamic adjustment based on system load.
In home appliances like refrigerators or air conditioners, fan speed control is essential for energy efficiency and noise reduction. Automatic controllers can adjust fan speeds based on ambient temperatures.
In vehicles, fan speed control is used to manage cooling systems efficiently. This helps in optimizing fuel consumption and reducing noise levels.
When modifying or controlling fan speeds, ensure that the fan operates within its specified voltage and current limits. Overheating or under-voltage conditions can lead to premature wear or failure.
1. Monitor Temperature: Use temperature sensors to monitor the fan's operating temperature.
2. Adjust Speed: Adjust the fan speed based on temperature readings to prevent overheating.
1. Check Specifications: Ensure the fan is designed to operate at the reduced voltage.
2. Monitor Performance: Monitor the fan's performance at lower voltages to ensure it does not stall.

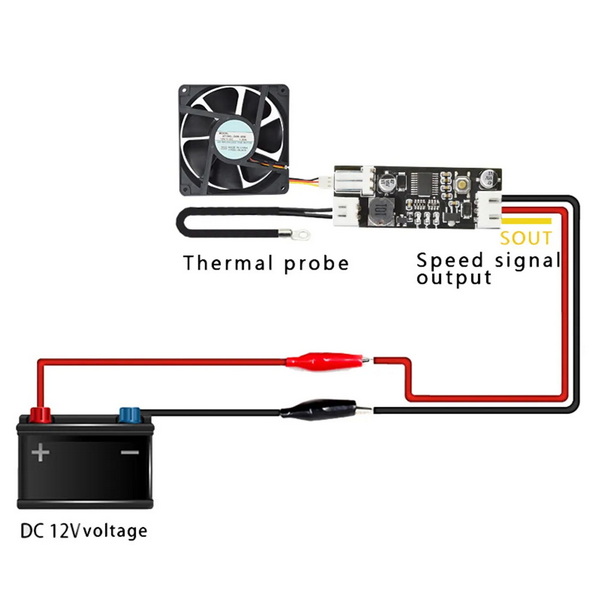

Using temperature sensors to control fan speed can optimize cooling efficiency. This method involves adjusting fan speed based on the temperature of the system or environment.
1. Temperature Sensor: Use a thermistor or thermocouple to measure temperature.
2. Microcontroller: Use a microcontroller to read temperature data and adjust fan speed accordingly.
Implementing remote control for fan speed can be useful in applications where manual adjustment is inconvenient. This can be achieved using wireless communication protocols like Bluetooth or Wi-Fi.
1. Microcontroller: Use a microcontroller with wireless capabilities.
2. Mobile App: Develop a mobile app to send commands to adjust fan speed remotely.
Slowing down a 12V DC fan can be achieved through various methods, each with its own advantages and limitations. The choice of method depends on the specific requirements of your application, such as efficiency, cost, and ease of use. Whether you opt for simple resistors, efficient PWM, or dedicated fan controllers, understanding the principles behind each method will help you make the best decision for your needs.
Using a potentiometer as a rheostat to control fan speed is technically possible but not recommended due to inefficiency and potential overheating issues. It's better to use a dedicated speed controller or PWM method for more efficient and reliable control.
PWM improves efficiency by providing full current to the fan for a portion of the time, rather than reducing the current continuously. This reduces heat dissipation in resistive components and maintains the fan's torque, making it more efficient than linear voltage reduction methods.
Most 12V DC fans can operate at lower voltages, typically down to 4-5V, depending on the fan model. However, operating below the minimum recommended voltage can cause the fan to stall or run inefficiently.
Yes, you can use a voltage regulator to control fan speed by adjusting the output voltage. This method provides a stable voltage supply and is more efficient than using resistors. However, it requires specific components and setup.
A fan controller works by either using PWM or voltage regulation internally to adjust the fan speed. Some controllers also include features like temperature sensing to automatically adjust fan speed based on environmental conditions.
