Powering a 12V DC fan is a common task in various electronic projects, from cooling computer components to improving airflow in terrariums. This comprehensive guide will walk you through different methods to power your 12V DC fan, ensuring optimal performance and safety.
Before diving into powering methods, it's essential to understand the basics of 12V DC fans. These fans typically have two to four wires, each serving a specific purpose:
- Red or Yellow: Positive power input (12V)
- Black: Ground (0V)
- Blue or Green: PWM control or tachometer signal
- Yellow (in 4-wire fans): Tachometer signal
When selecting a 12V DC fan, consider the following specifications:
1. Size: Measured in millimeters (e.g., 80mm, 120mm)
2. Airflow: Measured in cubic feet per minute (CFM)
3. Static pressure: Important for overcoming air resistance
4. Noise level: Measured in decibels (dB)
5. Power consumption: Typically measured in watts or amperes
There are several types of 12V DC fans available, each suited for different applications:
1. Axial fans: Most common, ideal for general cooling
2. Centrifugal fans: Provide higher pressure, suitable for ducted systems
3. Cross-flow fans: Offer wide, uniform airflow
4. Mixed-flow fans: Combine features of axial and centrifugal fans
Understanding these types will help you choose the right fan for your specific needs.
The most straightforward method to power a 12V DC fan is using a dedicated 12V DC power supply, often called a "wall wart" or AC adapter.
Steps:
1. Choose a 12V DC power supply with sufficient current rating for your fan.
2. Connect the positive (red or yellow) wire of the fan to the positive terminal of the power supply.
3. Connect the negative (black) wire of the fan to the negative terminal of the power supply.
4. Insulate any unused wires to prevent short circuits.
If you're using the fan in a computer-related project, you can power it directly from the computer's power supply unit (PSU).
Steps:
1. Locate a spare Molex or SATA power connector on your PSU.
2. Use a Molex-to-fan adapter or create a custom connection.
3. Connect the fan's positive and negative wires to the corresponding pins on the adapter or PSU connector.
If you have a higher voltage DC source available, you can use a buck converter to step down the voltage to 12V.
Steps:
1. Choose a buck converter rated for your input voltage and desired output current.
2. Connect the input of the buck converter to your higher voltage source.
3. Adjust the buck converter's output to 12V using a multimeter.
4. Connect the fan's positive and negative wires to the buck converter's output.
For portable applications, you can power a 12V fan from a 5V USB port using a boost converter.
Steps:
1. Select a boost converter capable of stepping up 5V to 12V with sufficient current output.
2. Connect the boost converter's input to a USB power source.
3. Adjust the boost converter's output to 12V.
4. Connect the fan's positive and negative wires to the boost converter's output.
For off-grid applications, you can power a 12V DC fan using solar energy.
Steps:
1. Choose a solar panel with appropriate voltage and wattage.
2. Connect the solar panel to a charge controller.
3. Connect a 12V battery to the charge controller for energy storage.
4. Connect the fan to the battery or charge controller's load output.
Controlling the speed of your 12V DC fan can be achieved through various methods:
By adjusting the voltage supplied to the fan, you can control its speed. However, this method may not work well with all fans and can reduce efficiency.
Voltage Regulation Methods:
- Potentiometer-based voltage divider
- LM317 adjustable voltage regulator
- PWM-controlled MOSFET for voltage control

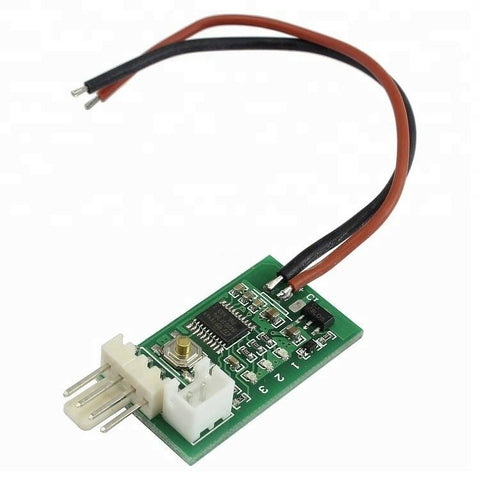

For fans with PWM input, you can use a PWM controller or generate a PWM signal with a microcontroller to adjust the fan speed more efficiently.
PWM Control Options:
- Arduino-based PWM generation
- Dedicated PWM fan controller ICs
- 555 timer-based PWM circuit

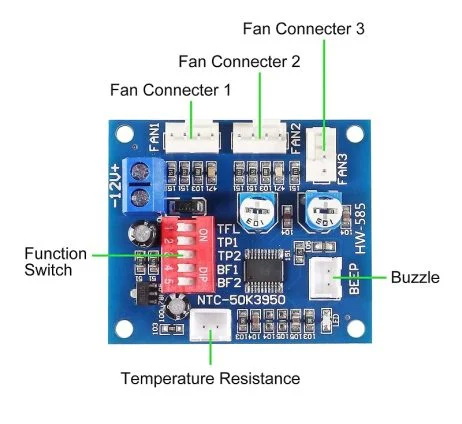

Commercial fan controllers are available that provide easy speed adjustment and often include temperature sensing capabilities.
Features of Fan Controllers:
- Multiple fan support
- Temperature-based speed control
- LCD display for monitoring
- Alarm functions for fan failure
Implement a temperature sensor (e.g., thermistor or digital temperature sensor) to automatically adjust fan speed based on ambient or system temperature.

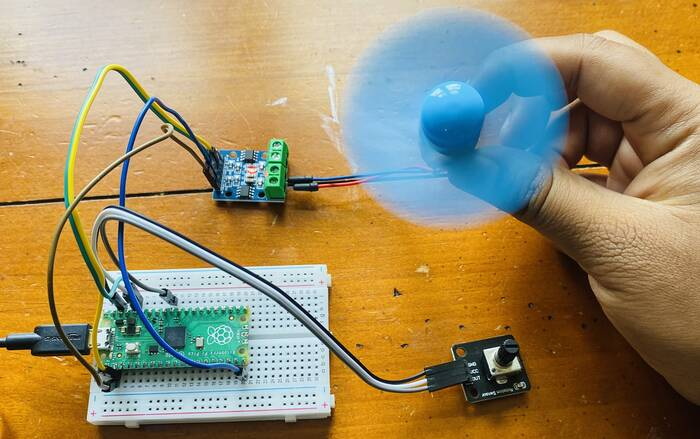

Use a microcontroller like Arduino or Raspberry Pi to create a sophisticated fan control system with features such as:
- Multiple sensor inputs
- Custom speed curves
- Data logging
- Remote control via Wi-Fi or Bluetooth
Integrate your 12V DC fan control into a smart home system for automated control based on various factors:
- Time of day
- Occupancy detection
- Weather conditions
- Energy management
When powering 12V DC fans, keep these safety tips in mind:
1. Always match the voltage rating of the fan to your power source.
2. Ensure your power source can provide sufficient current for the fan.
3. Properly insulate all connections to prevent short circuits.
4. Be cautious of static electricity when handling electronic components.
5. Use fuses or circuit breakers to protect against overcurrent situations.
6. Ensure proper ventilation for power supplies and voltage converters.
7. Follow proper ESD (Electrostatic Discharge) procedures when handling sensitive electronics.
If your 12V DC fan isn't working as expected, consider these troubleshooting steps:
1. Check all connections for proper contact and polarity.
2. Verify the power supply is functioning and providing the correct voltage.
3. Inspect the fan for physical damage or obstructions.
4. Test the fan with a known working power source to isolate the issue.
5. Use a multimeter to check for continuity in the fan windings.
6. Verify PWM signal generation if using PWM control.
7. Check for overheating in voltage regulators or converters.
To ensure the longevity of your 12V DC fan:
1. Clean the fan blades regularly to prevent dust buildup.
2. Lubricate the fan bearings if recommended by the manufacturer.
3. Avoid exposing the fan to extreme temperatures or humidity.
4. Use fan filters in dusty environments to reduce particulate intake.
5. Monitor for unusual noises or vibrations, which may indicate wear.
When implementing 12V DC fan solutions, consider the environmental impact:
1. Choose energy-efficient fans to reduce power consumption.
2. Implement smart control systems to optimize fan usage.
3. Consider using renewable energy sources like solar power.
4. Properly dispose of or recycle old fans and electronic components.
12V DC fans find use in a wide range of applications, including:
1. Computer and server cooling
2. Automotive climate control
3. Greenhouse and hydroponic ventilation
4. Electronic equipment cooling
5. Small appliances like portable coolers
6. DIY projects and robotics
Understanding these applications can help you adapt your fan powering solution to specific use cases.
As technology advances, we can expect to see improvements in 12V DC fan design and control:
1. More efficient motor designs for reduced power consumption
2. Integration of IoT capabilities for remote monitoring and control
3. Advanced materials for quieter operation and improved durability
4. Smarter control algorithms for optimal performance in varying conditions
Staying informed about these trends can help you make future-proof decisions when implementing 12V DC fan solutions.
Powering a 12V DC fan is a versatile task with multiple solutions to fit various applications. Whether you're using a dedicated power supply, computer PSU, or voltage converter, the key is to provide a stable 12V DC source with sufficient current capacity. By understanding the wiring, control methods, and safety considerations, you can successfully integrate 12V DC fans into your projects for efficient cooling and airflow management.
The advanced techniques and considerations discussed in this guide will help you create more sophisticated and efficient fan control systems. From simple voltage regulation to smart home integration, the possibilities for customizing your 12V DC fan setup are vast. Remember to prioritize safety, efficiency, and environmental considerations in your projects, and you'll be well-equipped to tackle any 12V DC fan powering challenge.
As technology continues to evolve, the applications and control methods for 12V DC fans will likely expand, offering even more exciting possibilities for enthusiasts and professionals alike. By mastering the fundamentals and staying informed about new developments, you'll be well-prepared to harness the full potential of 12V DC fans in your future projects.
While it's possible to run a 12V fan on 9V, it will operate at a lower speed and may not start reliably. It's best to use a proper 12V source for optimal performance.
Check the fan's specifications for its rated current draw. If unavailable, you can measure it using a multimeter in series with the fan when connected to a 12V source.
Yes, you can connect multiple 12V DC fans in parallel as long as your power supply can handle the total current draw of all fans combined.
2-wire fans have power and ground, 3-wire fans add a tachometer signal, and 4-wire fans include PWM speed control. More wires generally offer more control and monitoring options.
Yes, a car battery can power a 12V DC fan. However, ensure you have proper voltage regulation to protect the fan from voltage spikes, and consider the battery's capacity for long-term use.
